MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )USA

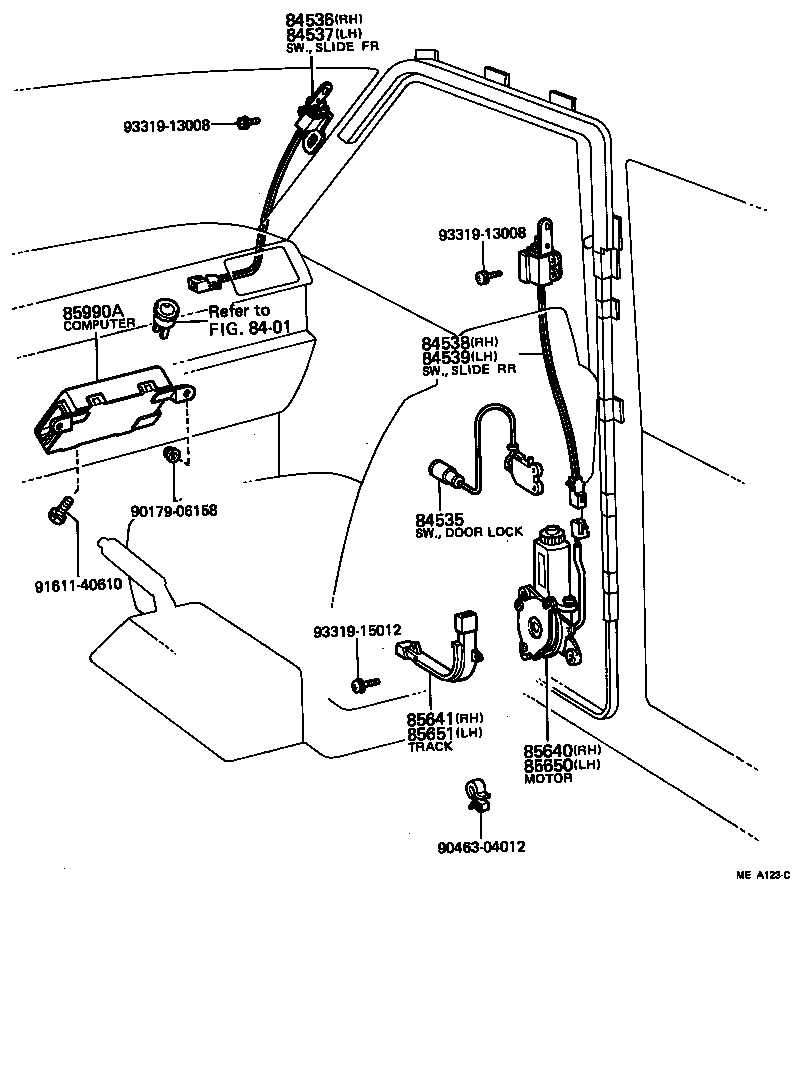

Click highlighted areas on diagram

diagram 8401 84535 84536 84537 84538 84539 85640 85641 85650 85651 85990A 9017906158 9046304012 9161140610 9331913008 9331913008 9331915012
Part # Description Qty Price
84535 - SWITCH, DOOR LOCK
84535-20010

MX62..USA

 2
84536 - SWITCH, SLIDE RAIL LIMIT, FRONT RH
84536-22010

MX62..USA

 1
84537 - SWITCH, SLIDE RAIL LIMIT, FRONT LH
84537-22010

MX62..USA

 1
84538 - SWITCH, SLIDE RAIL LIMIT, REAR RH
84538-22010

MX6#..USA

 1
84539 - SWITCH, SLIDE RAIL LIMIT, REAR LH
84539-22010

MX6#..USA

 1
85640 - MOTOR ASSY, PASSIVE BELT DRIVE, RH
85640-22010

MX6#..USA

 1
85641 - TRACK, PASSIVE BELT DRIVE, RH
85641-20010

MX6#..USA

 1
85650 - MOTOR ASSY, PASSIVE BELT DRIVE, LH
85650-22010

MX6#..USA

 1
85651 - TRACK, PASSIVE BELT DRIVE, LH
85651-20010

MX6#..USA

 1
85990A - COMPUTER ASSY, SEAT BELT WARNING (FOR PASSIVE BELT)
85990-22021

MX62..USA

 1
85990-22020

MX62..USA

 1
Common parts
90179-06158
90463-04012
91611-40610
93319-13008
93319-15012
Linked diagrams
8401
