MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)

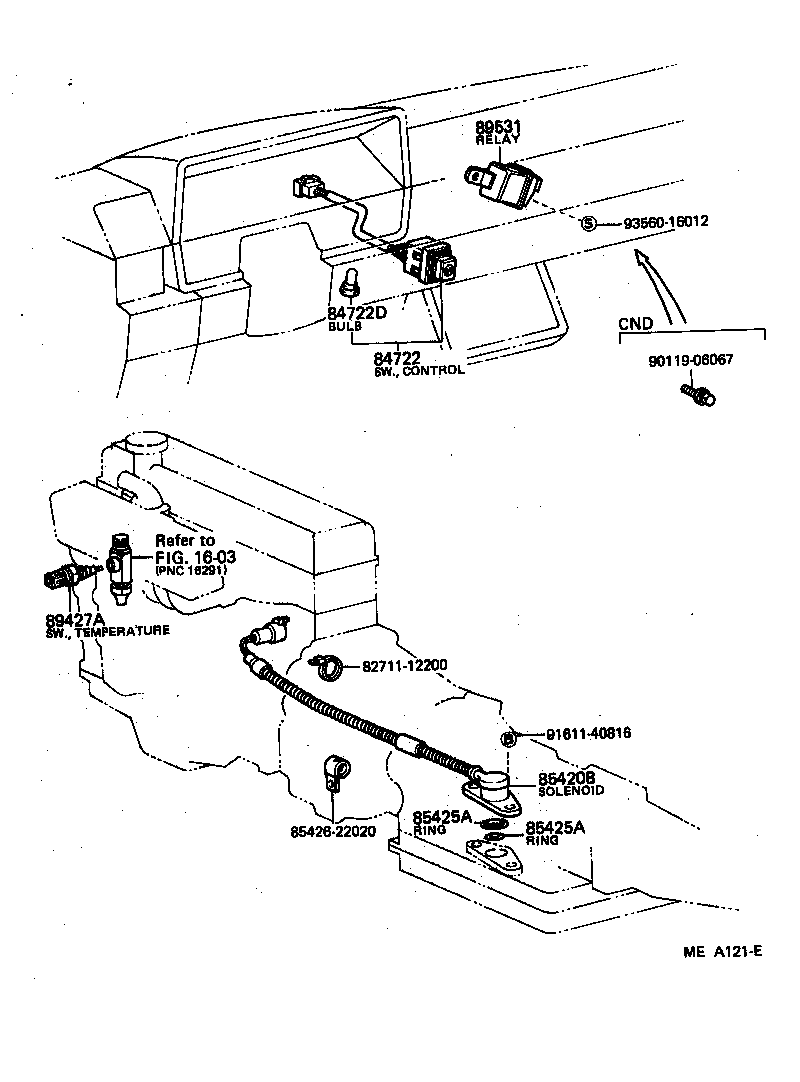

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-20020 |
MX62 |
1 | ||
| 84722D - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 90981-11024 |
MX62 12V 1.4W,12V 1.4W |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-20050 |
MX62 |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-23001 |
MX62 ID=23 |
1 | ||
| 90301-11001 |
MX62 ID=11 |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-23001 |
MX62 ID=23 |
1 | ||
| 90301-11001 |
MX62 ID=11 |
1 | ||
| 89427A - SWITCH, TEMPERATURE | ||||
| 89428-14030 |
MX62 |
1 | ||
| 89531 - RELAY, TRANSMISSION CONTROL | ||||
| 85925-12010 |
MX62 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 85426-22020 | ||||
| 90119-06067 | ||||
| 91611-40816 | ||||
| 93560-16012 | ||||
| Linked diagrams | ||||
| 1603 | ||||
