MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

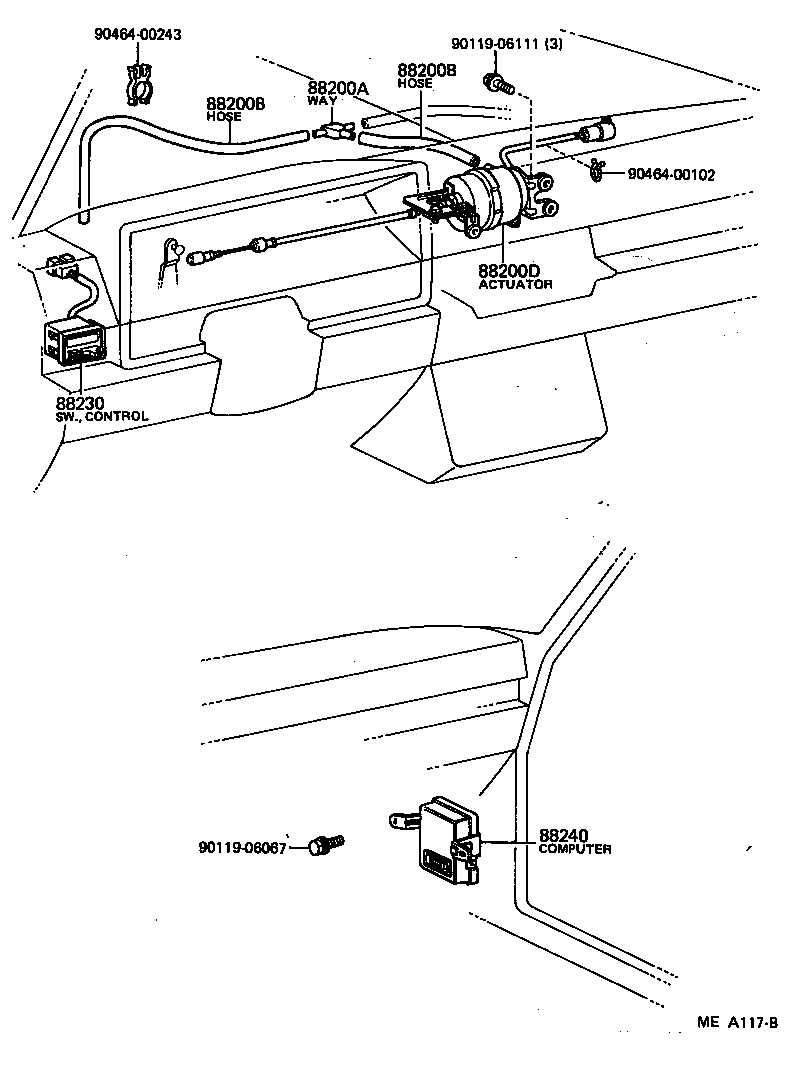

Click highlighted areas on diagram

diagram 88200A 88200B 88200B 88200D 88230 88240 9011906067 9011906111 9046400102 9046400243
Part # Description Qty Price
88200A - UNION OR WAY, CRUISE CONTROL VACUUM
90413-04005

MX6#

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19930

MX62

*H,L=140,MARK=#*

 1
95411-19960

MX62

*H,L=570,MARK=#*

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19930

MX62

*H,L=140,MARK=#*

 1
95411-19960

MX62

*H,L=570,MARK=#*

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-22090

MX62

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-22051

MX62

 1
88230-22050

MX62

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-22061

MX62

 1
88240-22060

MX62

 1
Common parts
90119-06067
90119-06111
90464-00102
90464-00243
