MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

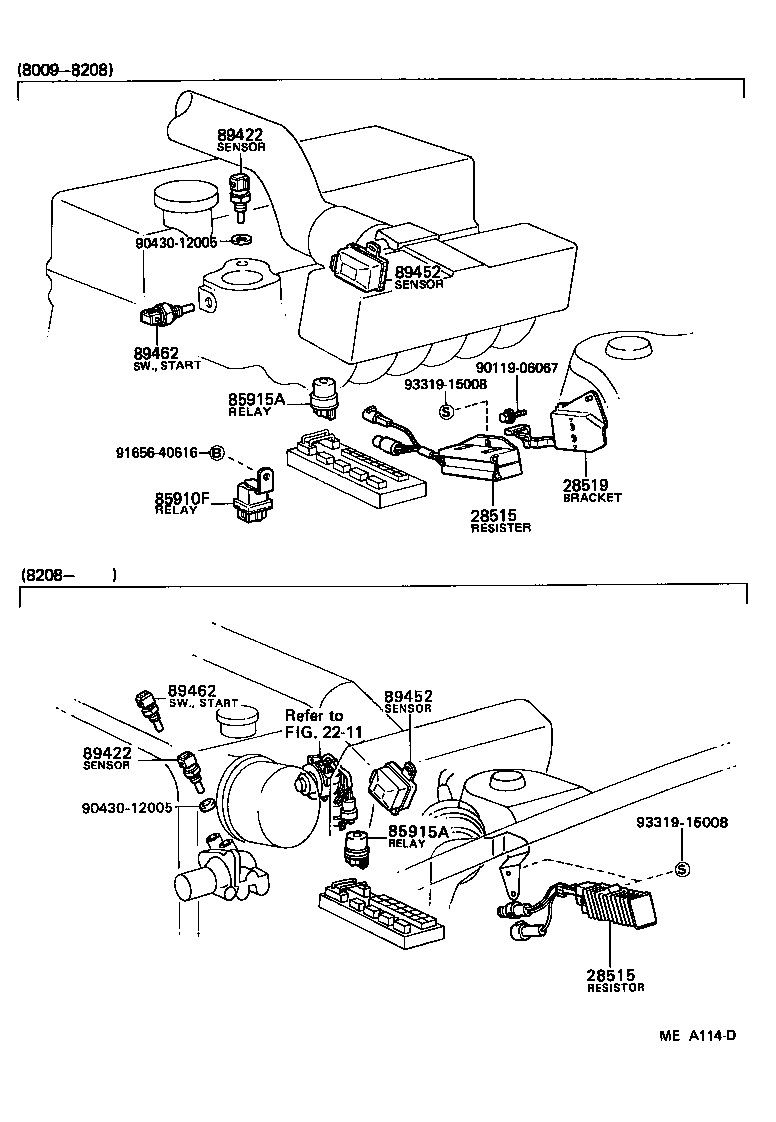

Click highlighted areas on diagram

diagram 2211 28515 28515 28519 85910F 85915A 85915A 89422 89422 89452 89452 89462 89462 9011906067 9043012005 9043012005 9165640616 9331915008 9331915008
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-41021

5ME..MX62

 1
28515 - RESISTOR, SOLENOID
28515-41021

5ME..MX62

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-43010

5ME..MX62

 1
85910F - RELAY, COMPUTER (FOR EFI)
85915-30040

MX62

 1
85915A - RELAY, MAIN
90987-02004

MX6#

 1
85915A - RELAY, MAIN
90987-02004

MX6#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

MX6#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

MX6#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-14020

MX62

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-14020

MX62

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

MX62

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

MX62

 1
Common parts
90119-06067
90430-12005
91656-40616
93319-15008
Linked diagrams
2211

(8009- )

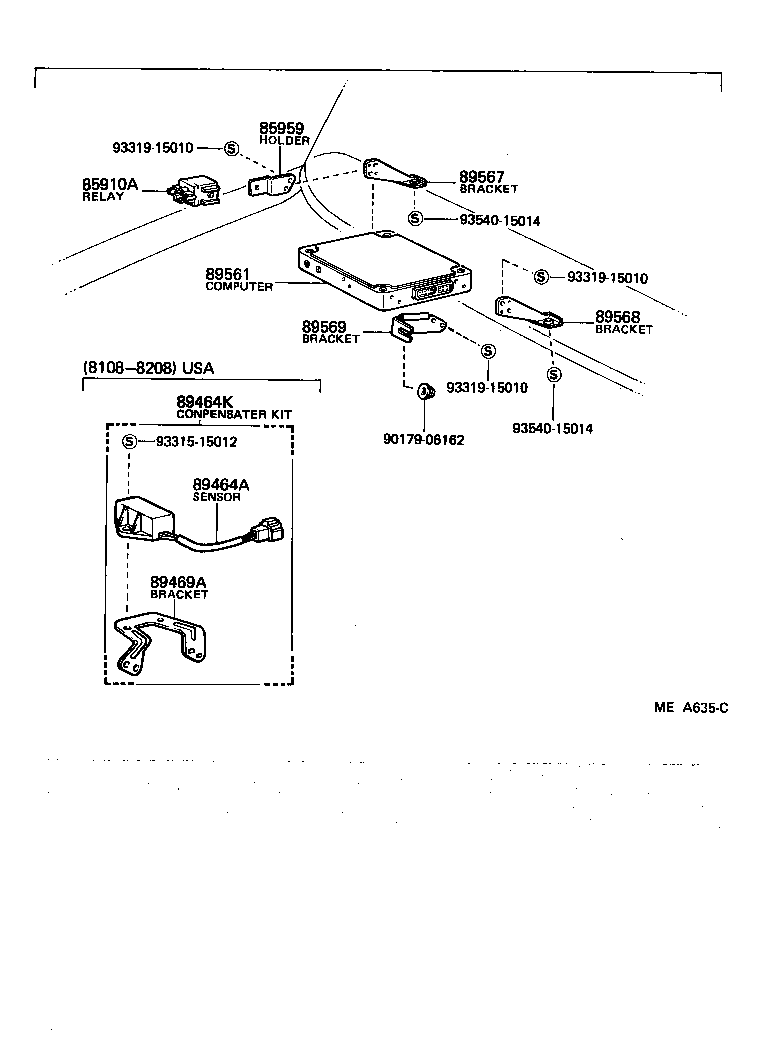

Click highlighted areas on diagram

diagram 85910A 85959 89464A 89464K 89469A 89561 89567 89568 89569 9017906162 9331515012 9331915010 9331915010 9331915010 9354015014 9354015014
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

MX62

 1
85959 - HOLDER, RELAY
85959-22010

MX62

 1
89464A - SENSOR, ALTITUDE COMPENSATION
89464-14010

MX62..USA

 1
89464K - CONPENSATER KIT, HIGH ALTITUDE
04215-43010

MX62..USA

 1
89469A - BRACKET, ALTITUDE COMPENSATION SENSOR
89469-22020

MX62..USA

 1
89561 - COMPUTER, FUEL INJECTION
89561-22040

MX62

 1
89561-22060

MX62

 1
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-22090

MX62..USA

 1
89568 - BRACKET, FUEL INJECTION COMPUTER
89567-22090

MX62..USA

 1
89569 - BRACKET, FUEL INJECTION COMPUTER
89569-22090

MX62

 1
Common parts
90179-06162
93315-15012
93319-15010
93540-15014
