MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MX6# 5A,5A |
1 | ||
| 90982-09003 |
MX6# 15A,15A |
10 | ||
| 90982-09004 |
MX6# 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
MX6# 7.5A,7.5A |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MX6# 5A,5A |
1 | ||
| 90982-09003 |
MX6# 15A,15A |
10 | ||
| 90982-09004 |
MX6# 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
MX6# 7.5A,7.5A |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MX6# 5A,5A |
1 | ||
| 90982-09003 |
MX6# 15A,15A |
10 | ||
| 90982-09004 |
MX6# 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
MX6# 7.5A,7.5A |
7 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22140 |
MX6# YAZAKI |
1 | ||
| 82660-22130 |
MX6# SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22011 |
MX62 UPR,SUMITOMO |
1 | ||
| 82661-22040 |
MX62 UPR,YAZAKI |
1 | ||
| 82661-22060 |
MX6# LWR,YAZAKI |
1 | ||
| 82661-22030 |
MX6# LWR,SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22011 |
MX62 UPR,SUMITOMO |
1 | ||
| 82661-22040 |
MX62 UPR,YAZAKI |
1 | ||
| 82661-22060 |
MX6# LWR,YAZAKI |
1 | ||
| 82661-22030 |
MX6# LWR,SUMITOMO |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
MX6# DENSO |
1 | ||
| 83420-20020 |
MX6# YAZAKI |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-55011 |
MX62 |
1 | ||
| 83520-14021 |
MX62..USA |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-22150 |
MX62 |
1 | ||
| 84540-14110 |
MX62 |
1 | ||
| 85335 - SWITCH ASSY, WASHER LEVEL WARNING | ||||
| 85335-22030 |
MX62 |
1 | ||
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-22040 |
MX6# |
1 | ||
| 85336A - PACKING, LEVEL WARNING SWITCH | ||||
| 85336-14020 |
MX6# |
1 | ||
| 85337 - CASE, LEVEL WARNING SWITCH | ||||
| 85337-14010 |
MX6# |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-22010 |
MX6# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
MX62 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
MX6# |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
MX6# |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29075 |
MX6# |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
MX6# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-22200 |
MX62 |
1 | ||
| Common parts | ||||
| 82711-24120 | ||||
| 90179-08012 | ||||
| 90201-08084 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-10284 | ||||
| 90462-08008 | ||||
| 90464-00156 | ||||
| 90464-00263 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91655-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8715 | ||||

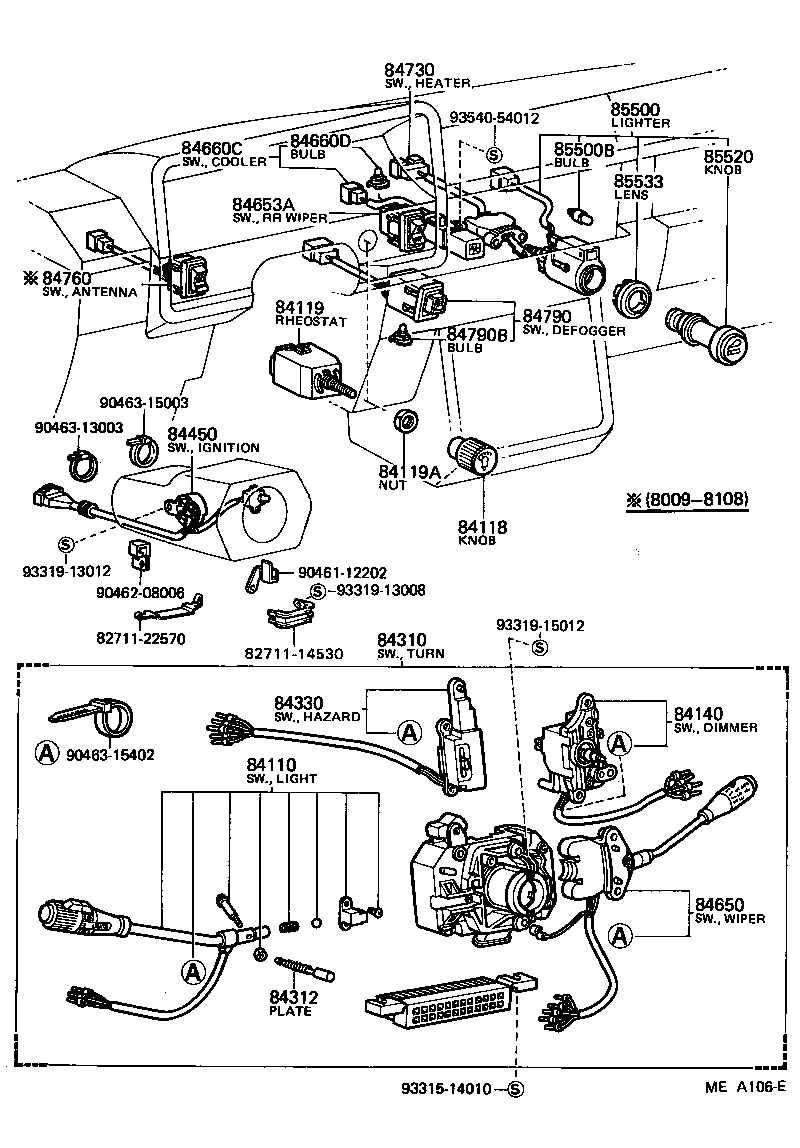

(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29225 |
MX62..USA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12030 |
MX6# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-22050 |
MX6# W/*AS |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
MX6# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29085 |
MX62..USA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22230 |
MX62..USA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
MX6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39105 |
MX6# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22091 |
MX62..USA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69045 |
MX62 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22050 |
MX6# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
MX6# 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22060 |
MX6# |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-20010 |
MX62 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20050 |
MX62 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11024 |
MX62 12V 1.4W,12V 1.4W |
2 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22090 |
MX6# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
MX6# 12V 3.4W,12V 3.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30151 |
MX6# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
MX6# |
1 | ||
| Common parts | ||||
| 82711-14530 | ||||
| 82711-22570 | ||||
| 90461-12202 | ||||
| 90462-08006 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93540-54012 | ||||

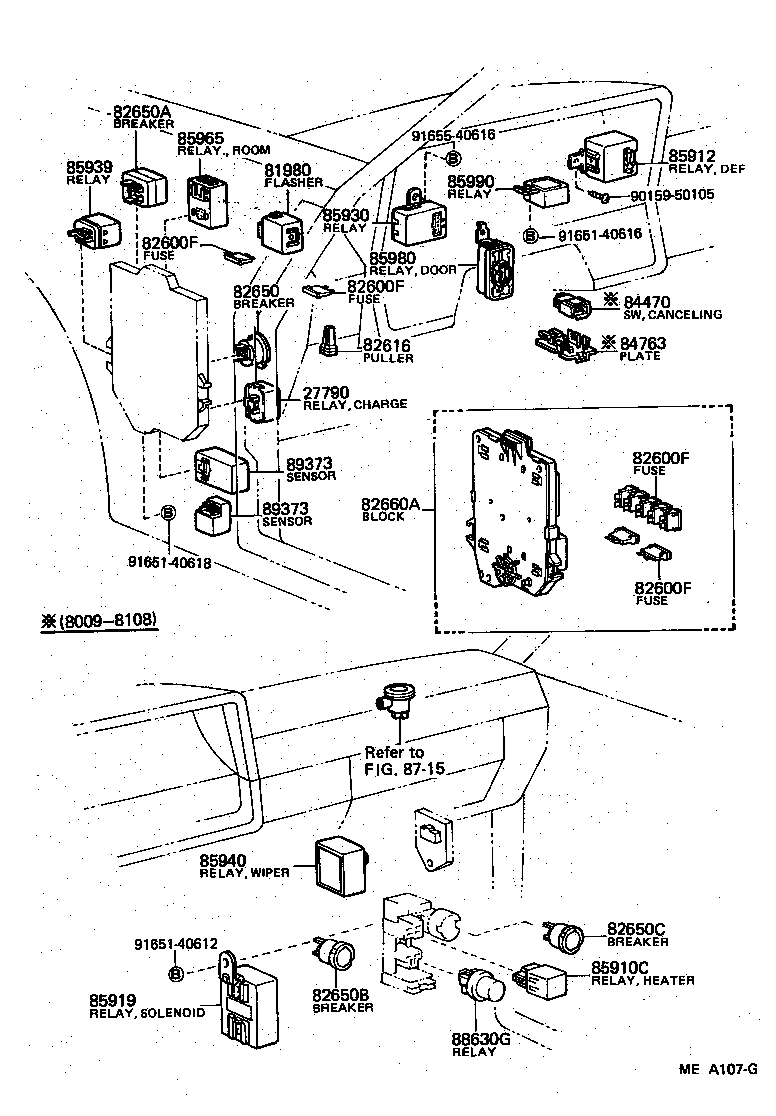

(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-45040 |
5M#..MX6# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
MX62 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MX6# 5A,5A |
1 | ||
| 90982-09003 |
MX6# 15A,15A |
10 | ||
| 90982-09004 |
MX6# 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
MX6# 7.5A,7.5A |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MX6# 5A,5A |
1 | ||
| 90982-09003 |
MX6# 15A,15A |
10 | ||
| 90982-09004 |
MX6# 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
MX6# 7.5A,7.5A |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MX6# 5A,5A |
1 | ||
| 90982-09003 |
MX6# 15A,15A |
10 | ||
| 90982-09004 |
MX6# 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
MX6# 7.5A,7.5A |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MX6# 5A,5A |
1 | ||
| 90982-09003 |
MX6# 15A,15A |
10 | ||
| 90982-09004 |
MX6# 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
MX6# 7.5A,7.5A |
7 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
MX6# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
MX62 DEFOGGER |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-22020 |
MX6# POWER WINDOW & SUN ROOF |
1 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20010 |
MX62 *HEA & COOLER |
1 | ||
| 82650C - BREAKER ASSY, WIRING CIRCUIT, NO.4 | ||||
| 82650-20010 |
MX62..USA PASSIVE BELT |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22050 |
MX6# |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-22010 |
MX62 |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-22030 |
MX62 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
MX6# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
MX6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22060 |
MX62 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22020 |
MX62 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-22050 |
MX6# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-03001 |
MX6# |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22041 |
MX62..SED TAIL LAMP |
1 | ||
| 89373-22050 |
MX6#..SED STOP LAMP |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22041 |
MX62..SED TAIL LAMP |
1 | ||
| 89373-22050 |
MX6#..SED STOP LAMP |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

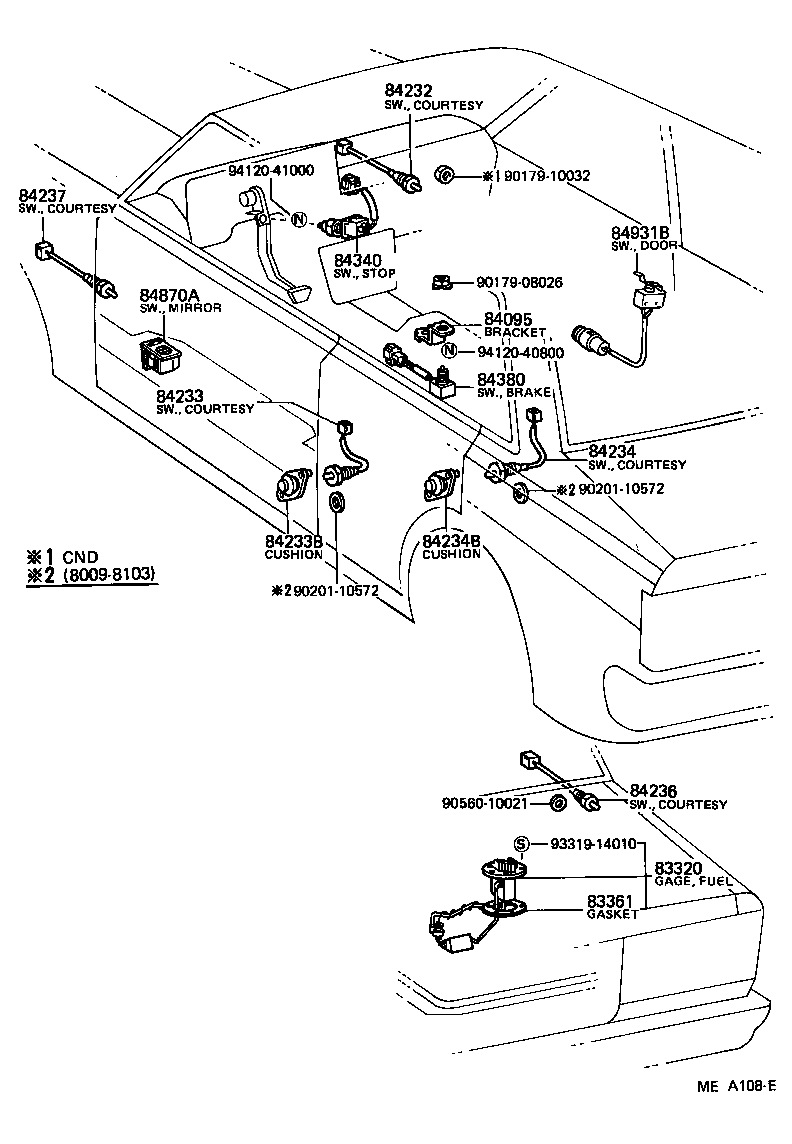

(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29425 |
MX62..SED |
1 | ||
| 83320-29507 |
MX62..SED |
1 | ||
| 83320-29505 |
MX62..SED |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
MX62 |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-20040 |
MX62..USA |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20010 |
MX62 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22050 |
MX62 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
MX6# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22050 |
MX62 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
MX6# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-22040 |
MX6#..SED |
1 | ||
| 84237 - SWITCH ASSY, COURTESY LAMP (FOR STEERING UN-LOCK WARNIN | ||||
| 84230-22050 |
MX62 |
1 | ||
| 84230-22051 |
MX62 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
MX6# |
1 | ||
| 84340-22060 |
MX62 MATSUSHITA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84550-20020 |
MX62..USA |
1 | ||
| Common parts | ||||
| 90179-08026 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90560-10021 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-22070 |
MX62 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-22070 |
MX62 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-22070 |
MX62 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22190 |
MX62..USA |
1 | ||
| 84820-22130 |
MX62 |
1 | ||
| 85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH | ||||
| 85450-22160 |
MX62 |
1 | ||
| 85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH | ||||
| 85450-22170 |
MX62 |
1 | ||
| 85450-22240 |
MX62..USA |
1 | ||
| 85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH | ||||
| 85450-22180 |
MX62 |
1 | ||
| 85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH | ||||
| 85450-22190 |
MX62 |
1 | ||
| Common parts | ||||
| 84739-30020 | ||||
| 91521-40610 | ||||
| 91651-40614 | ||||
| 93316-16012 | ||||
| 93385-16012 | ||||
| 93540-54012 | ||||
