MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

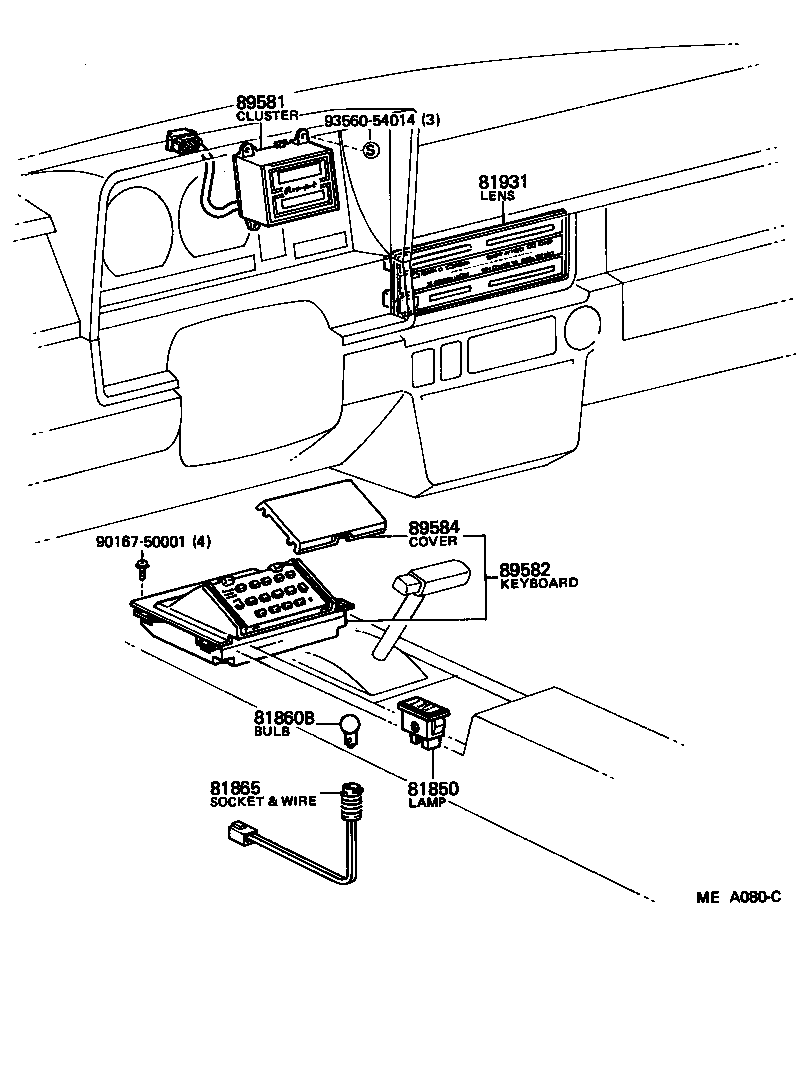

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-22050 |
MX6#..USA |
1 | ||
| 81860B - BULB, TRANSMISSION INDICATOR LAMP | ||||
| 99132-11034 |
MX62 12V 3.4W,12V 3.4W |
1 | ||
| 81865 - SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP | ||||
| 35906-14010 |
MX62 |
1 | ||
| 81931 - LENS, HEATER CONTROL INDICATOR | ||||
| 55519-22070 |
MX6#..USA |
1 | ||
| 89581 - CLUSTER, CRUISE PILOT COMPUTER DISPLAY | ||||
| 89581-22070 |
MX62..USA |
1 | ||
| Common parts | ||||
| 90167-50001 | ||||
| 93560-54014 | ||||
