MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

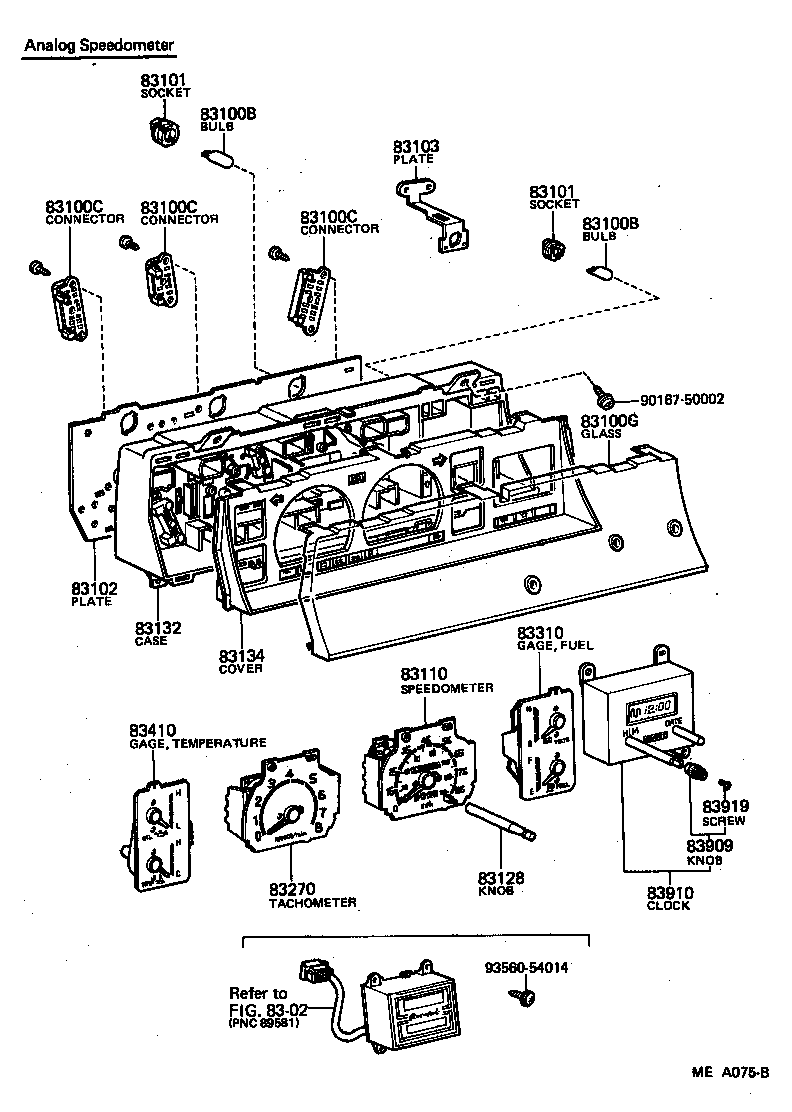

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
MX6# 12V 3.4W,12V 3.4W |
7 | ||
| 90981-11018 |
MX6# 12V 1.2W W/O SOCKET,12V 1.4W |
15 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
MX6# 12V 3.4W,12V 3.4W |
7 | ||
| 90981-11018 |
MX6# 12V 1.2W W/O SOCKET,12V 1.4W |
15 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
MX6# 7-POLE |
1 | ||
| 90980-08209 |
MX6# 13-POLE |
2 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
MX6# 7-POLE |
1 | ||
| 90980-08209 |
MX6# 13-POLE |
2 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
MX6# 7-POLE |
1 | ||
| 90980-08209 |
MX6# 13-POLE |
2 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-22080 |
MX6# W/*AS |
1 | ||
| 83138-22100 |
MX62..USA W/*CC |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MX6# 12V 1.4W |
14 | ||
| 83101-20040 |
MX6# 12V 3.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MX6# 12V 1.4W |
14 | ||
| 83101-20040 |
MX6# 12V 3.4W |
7 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2A090 |
MX62 |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-2A110 |
MX6# W/*AS |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-22500 |
MX62..USA |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-2A010 |
MX6# W/*AS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A030 |
MX62 |
1 | ||
| 83132-2A030 |
MX62..USA |
1 | ||
| 83132-2A030 |
MX62 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2A081 |
MX62 |
1 | ||
| 83134-2A080 |
MX62 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22120 |
MX62 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-2A020 |
MX62 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2A020 |
MX62 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
MX6# W/*AS |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22160 |
MX6# W/*AS |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
MX6# W/*AS |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8009- )

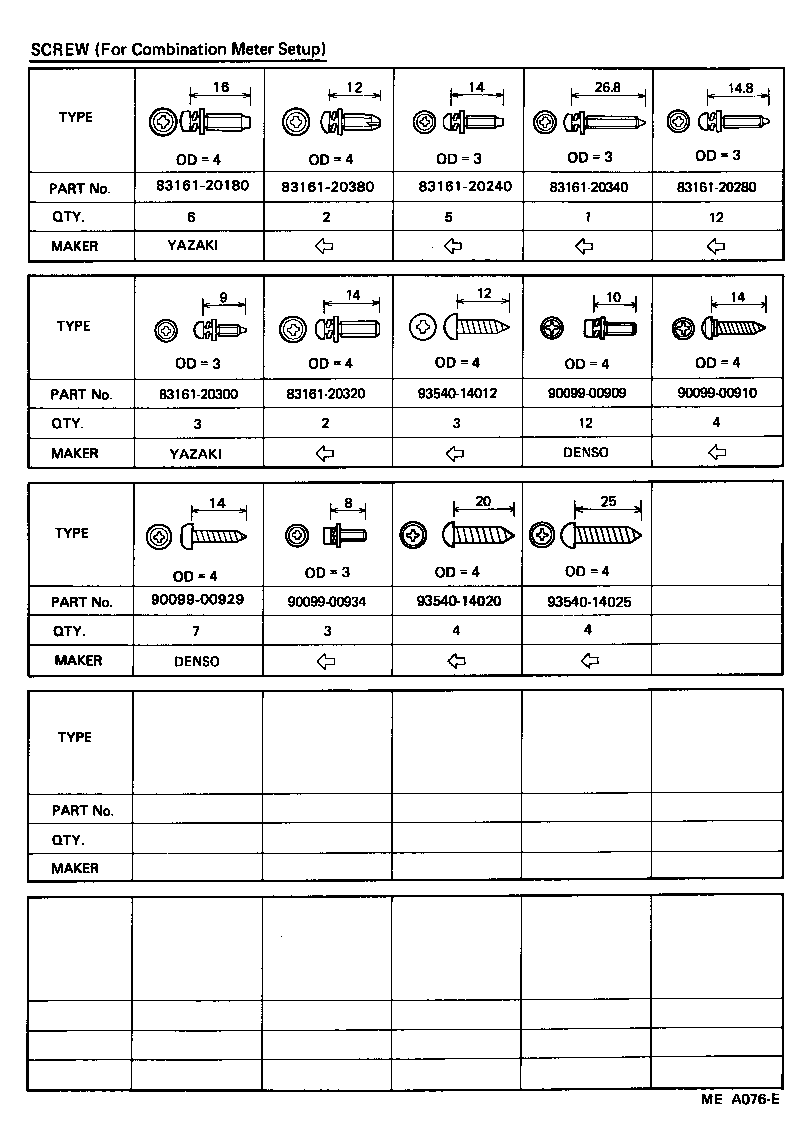

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20240 | ||||
| 83161-20280 | ||||
| 83161-20300 | ||||
| 83161-20320 | ||||
| 83161-20340 | ||||
| 83161-20380 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00934 | ||||
| 93540-14012 | ||||
| 93540-14020 | ||||
| 93540-14025 | ||||
(8009- )

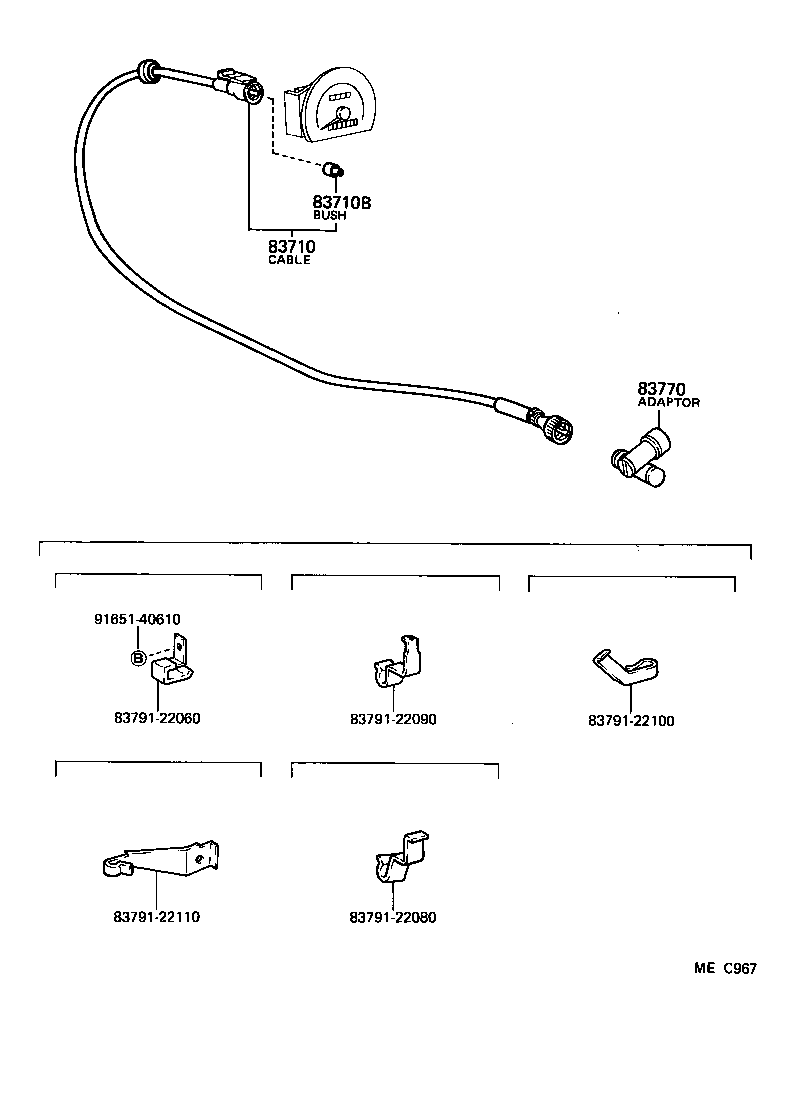

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22490 |
MX6#..ATM W/*AS |
1 | ||
| 83710B - BUSH, SPEEDOMETER DRIVE CABLE | ||||
| 90389-02001 |
MX6# |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22060 |
MX6#..ATM |
1 | ||
| Common parts | ||||
| 83791-22060 | ||||
| 83791-22080 | ||||
| 83791-22090 | ||||
| 83791-22100 | ||||
| 83791-22110 | ||||
| 91651-40610 | ||||
