MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

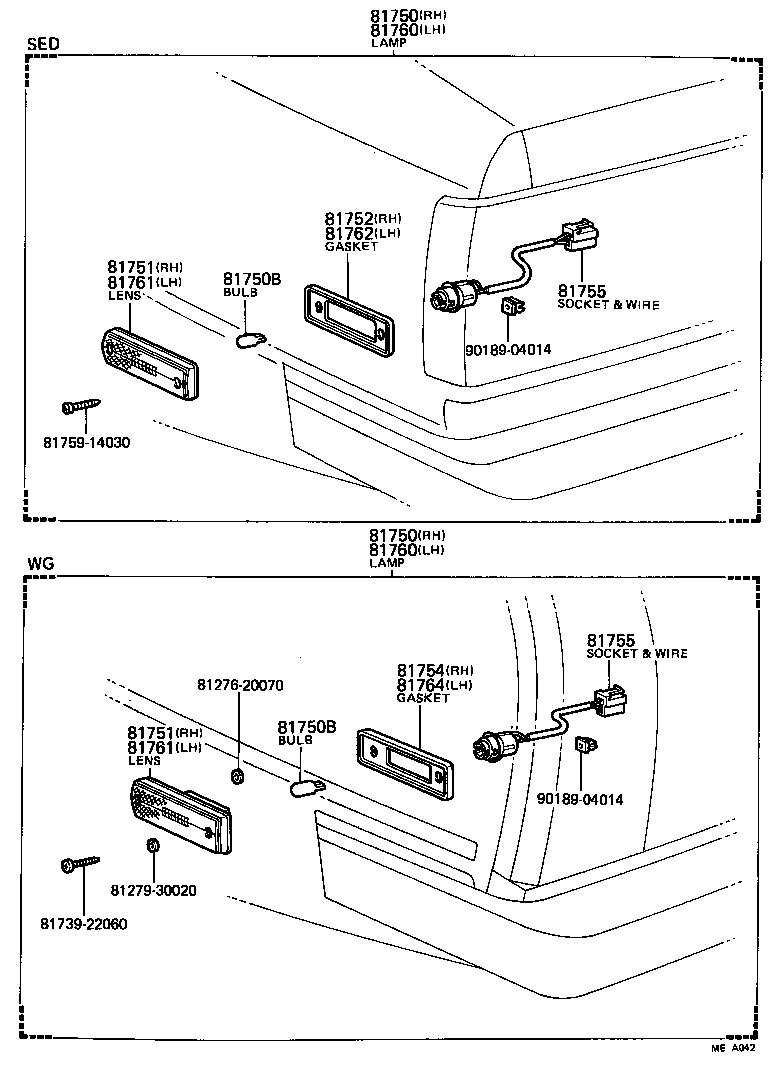

Click highlighted areas on diagram

diagram 8127620070 8127930020 8173922060 81750 81750 81750B 81750B 81751 81751 81752 81754 81755 81755 8175914030 81760 81760 81761 81761 81762 81764 9018904014 9018904014
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-29135

MX6#..SED

 1
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-29135

MX6#..SED

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

MX6#

12V 3.8W,12V 3.8W

 2
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

MX6#

12V 3.8W,12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-14030

MX6#

 1
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-14030

MX6#

 1
81752 - GASKET, REAR SIDE MARKER LAMP LENS
81752-14030

MX6#..SED

 1
81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP
81755-20060

MX6#

 2
81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP
81755-20060

MX6#

 2
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81750-29135

MX6#..SED

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81750-29135

MX6#..SED

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81751-14030

MX6#

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81751-14030

MX6#

 1
81762 - GASKET, REAR SIDE MARKER LAMP
81752-14030

MX6#..SED

 1
Common parts
81276-20070
81279-30020
81739-22060
81759-14030
90189-04014
