MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )SED

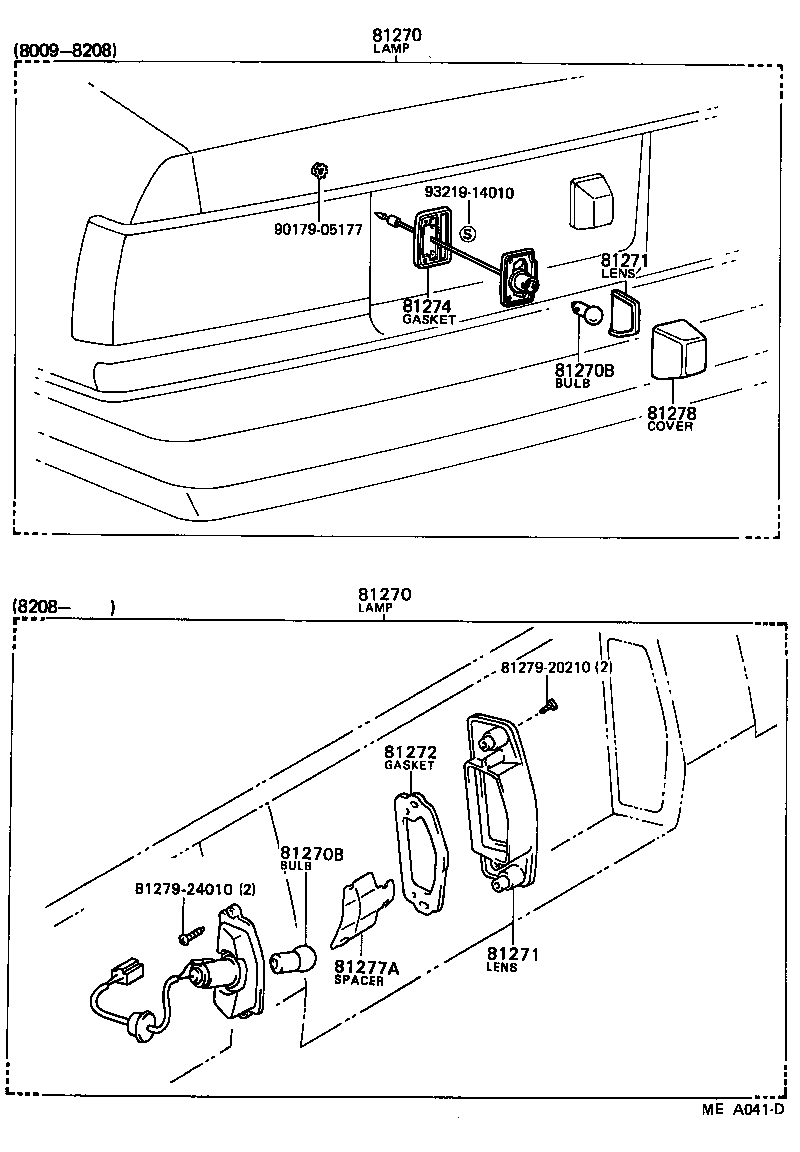

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81274 81277A 81278 8127920210 8127924010 9017905177 9321914010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29475

MX62..SED

RH

 1
81690-29105

MX62..SED

LH

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-29475

MX62..SED

RH

 1
81690-29105

MX62..SED

LH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

MX62

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

MX62

12V 7.5W,12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81691-20030

MX62..SED

LH

 1
81271-20110

MX62..SED

RH

 1
81271 - LENS, LICENSE PLATE LAMP
81691-20030

MX62..SED

LH

 1
81271-20110

MX62..SED

RH

 1
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-20110

MX62..SED

RH

 1
81694-20030

MX62..SED

LH

 1
81278 - COVER, LICENSE PLATE LAMP
81276-20110

MX62..SED

RH

 1
81696-20030

MX62..SED

LH

 1
Common parts
81279-20210
81279-24010
90179-05177
93219-14010
