MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

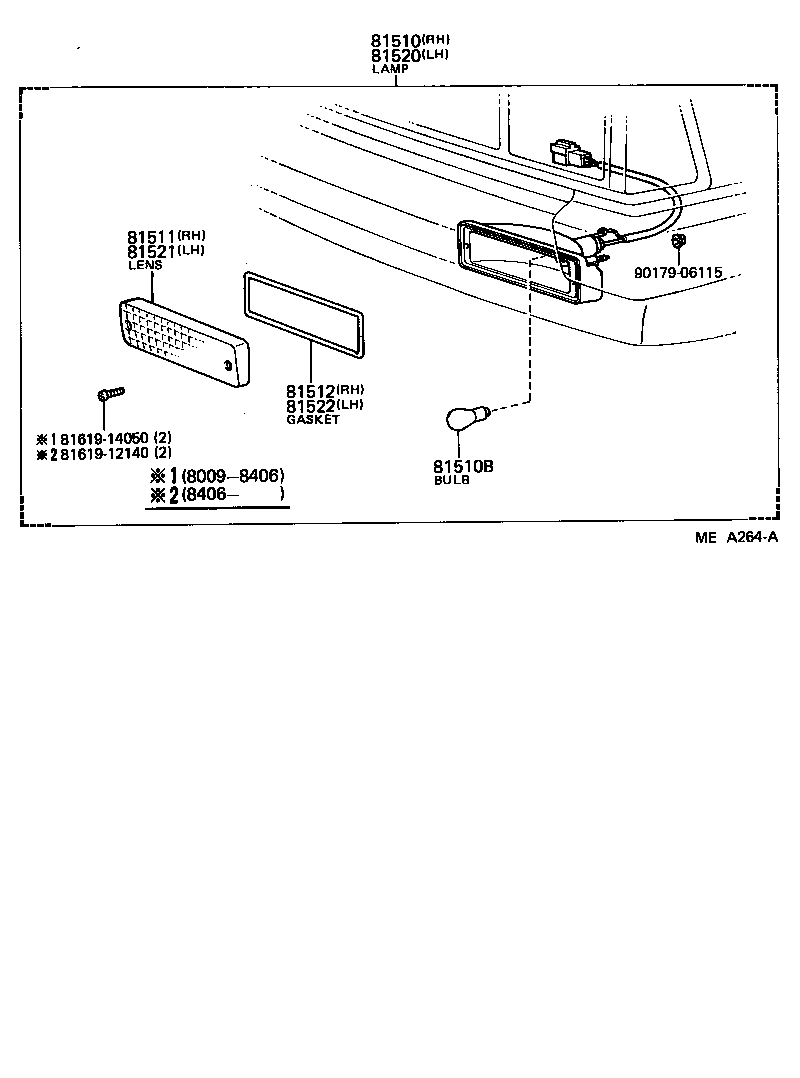

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81520 81521 81522 8161912140 8161914050 9017906115
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29655

MX62

 1
81510-29656

MX62

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

MX6#

12V 27W,12V 27W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-22220

MX62

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14140

MX6#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29656

MX62

 1
81520-29655

MX62

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-22220

MX62

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14140

MX6#

 1
Common parts
81619-12140
81619-14050
90179-06115
