MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)

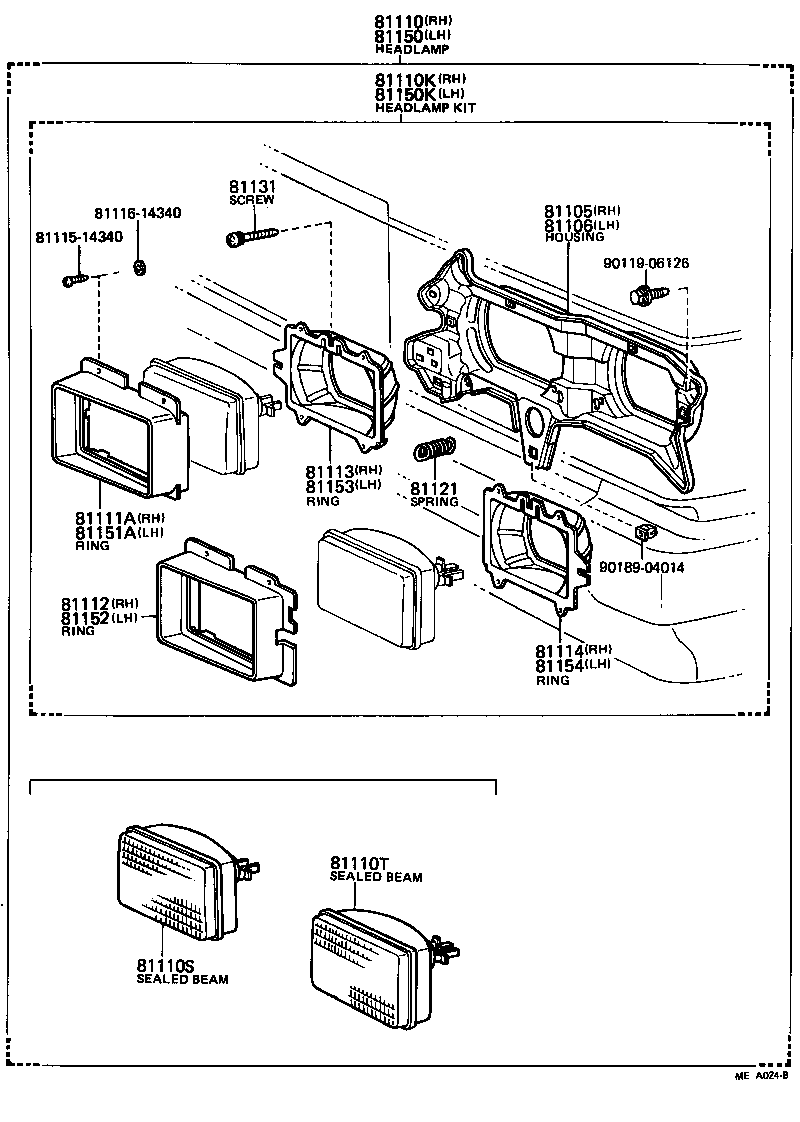

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-22290 |
MX62 |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-22290 |
MX62 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80179 |
MX62 |
1 | ||
| 81110-80093 |
MX62 |
1 | ||
| 81110K - HEADLAMP KIT, W/O SEALED BEAM, RH | ||||
| 04817-22020 |
MX62 |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-05028 |
MX6# 12V 50W,*HAL,*WB,12V 50W |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-05029 |
MX62 12V 40/60W |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14340 |
MX62 |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81112-14340 |
MX62 |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-14320 |
MX62 |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-14320 |
MX62 |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14320 |
MX6# |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-14320 |
MX62 |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80176 |
MX62 |
1 | ||
| 81150-80090 |
MX62 |
1 | ||
| 81150K - HEADLAMP KIT, W/O SEALED BEAM, LH | ||||
| 04818-22020 |
MX62 |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-14340 |
MX62 |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81152-14340 |
MX62 |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-14320 |
MX62 |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-14320 |
MX62 |
1 | ||
| Common parts | ||||
| 81115-14340 | ||||
| 81116-14340 | ||||
| 90119-06126 | ||||
| 90189-04014 | ||||
