MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

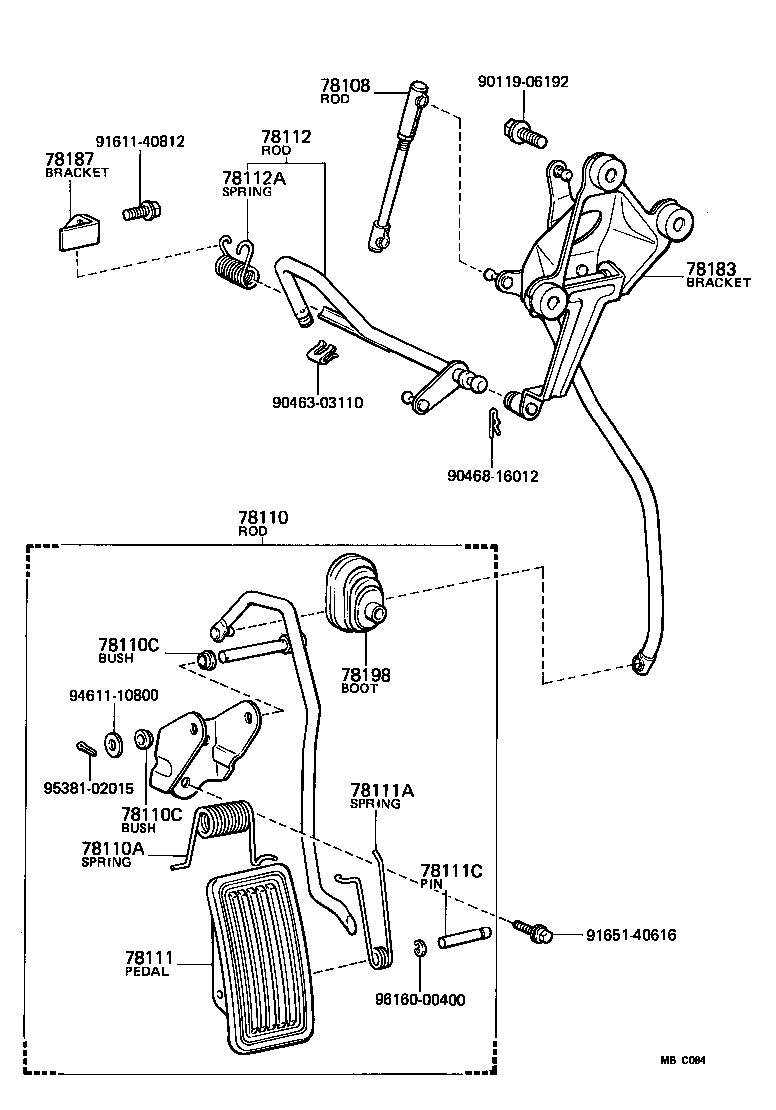

Click highlighted areas on diagram

diagram 78108 78110 78110A 78110C 78110C 78111 78111A 78111C 78112 78112A 78183 78187 78198 9011906192 9046303110 9046816012 9161140812 9165140616 9461110800 9538102015 9616000400
Part # Description Qty Price
78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78105-22180

MX62

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22110

MX62

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23018

MX62

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08003

MX6#

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08003

MX6#

 2
78111 - PEDAL, ACCELERATOR
78111-12100

MX6#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

MX6#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

MX6#

 1
78112 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78106-22091

MX62

 1
78112A - SPRING (FOR ACCELRATOR CONNECTING ROD)
90508-16440

MX62

 1
78183 - BRACKET, ACCELERATOR LINK ROD
78170-22090

MX62

 1
78187 - BRACKET, ACCELERATOR PULL BACK SPRING
78187-22030

MX62

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-20030

MX62

 1
Common parts
90119-06192
90463-03110
90468-16012
91611-40812
91651-40616
94611-10800
95381-02015
96160-00400
