MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

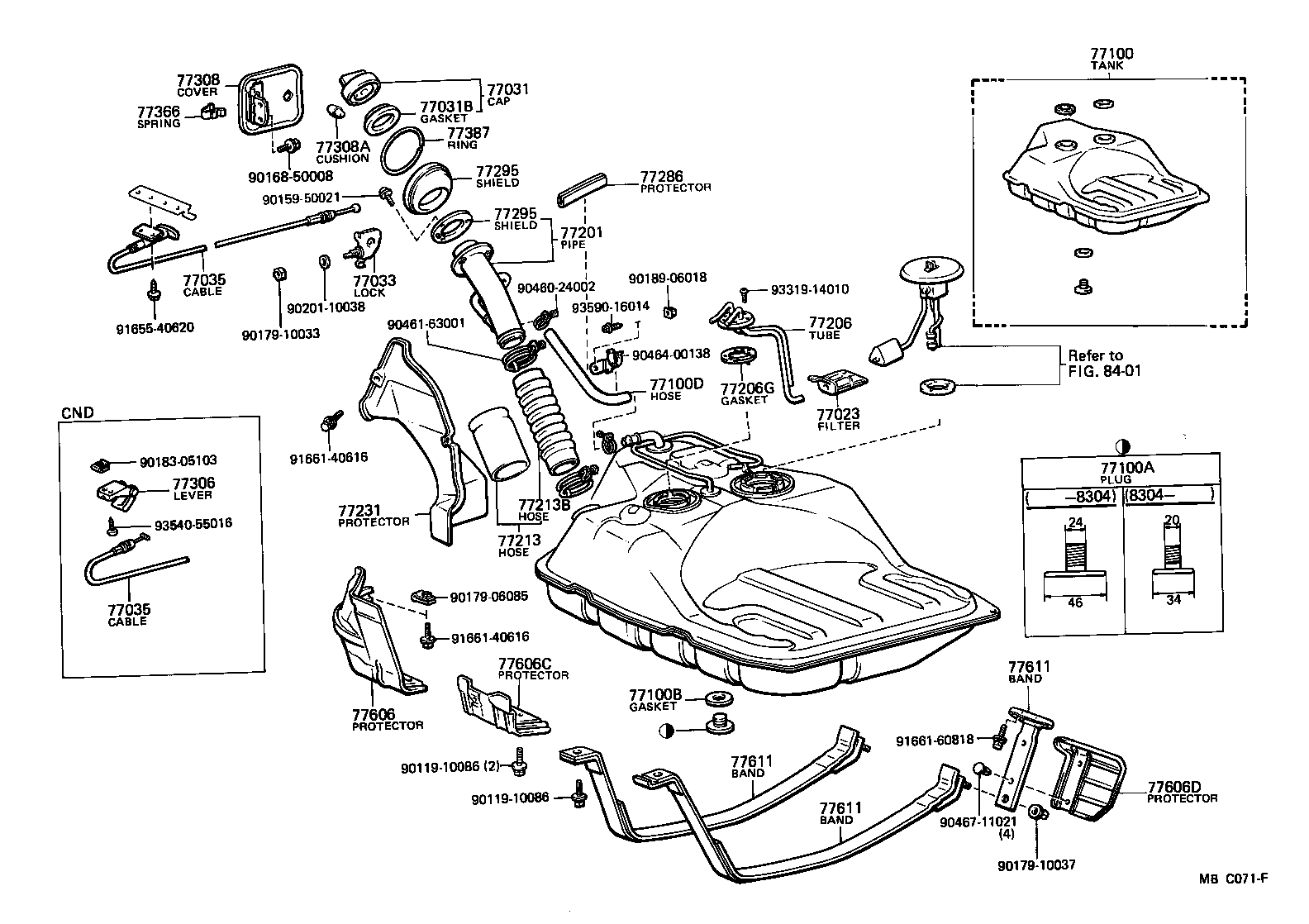

(8009- )SED
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
MX6# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12090 |
MX62 |
1 | ||
| 77310-12100 |
MX62 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
MX62 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-12010 |
MX6# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77030-22010 |
MX62..SED..USA |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77030-22010 |
MX62..SED..USA |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29015 |
MX6#..SED |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
MX6#..SED |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
MX6#..SED |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22009 |
MX6#..SED |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22110 |
MX62..SED |
1 | ||
| 77201-22111 |
MX62..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-22070 |
MX6#..SED |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
MX6#..SED |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77408-22010 |
MX62..SED |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-22050 |
MX6#..SED |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77277-22020 |
MX62..SED |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77292-22050 |
MX6#..SED UPR |
1 | ||
| 77291-22010 |
MX62..SED LWR |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77292-22050 |
MX6#..SED UPR |
1 | ||
| 77291-22010 |
MX62..SED LWR |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-22030 |
MX6#..SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
MX6# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
MX6# |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
MX6#..SED |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-22040 |
MX62..SED |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-22030 |
MX62..SED FR LH |
1 | ||
| 77603-22030 |
MX6#..SED RR |
2 | ||
| 77601-22050 |
MX6#..SED FR RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-22030 |
MX62..SED FR LH |
1 | ||
| 77603-22030 |
MX6#..SED RR |
2 | ||
| 77601-22050 |
MX6#..SED FR RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-22030 |
MX62..SED FR LH |
1 | ||
| 77603-22030 |
MX6#..SED RR |
2 | ||
| 77601-22050 |
MX6#..SED FR RH |
1 | ||
| Common parts | ||||
| 90119-10086 | ||||
| 90159-50021 | ||||
| 90168-50008 | ||||
| 90179-06085 | ||||
| 90179-10033 | ||||
| 90179-10037 | ||||
| 90183-05103 | ||||
| 90189-06018 | ||||
| 90201-10038 | ||||
| 90460-24002 | ||||
| 90461-63001 | ||||
| 90464-00138 | ||||
| 90467-11021 | ||||
| 91655-40620 | ||||
| 91661-40616 | ||||
| 91661-60818 | ||||
| 93319-14010 | ||||
| 93540-55016 | ||||
| 93590-16014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

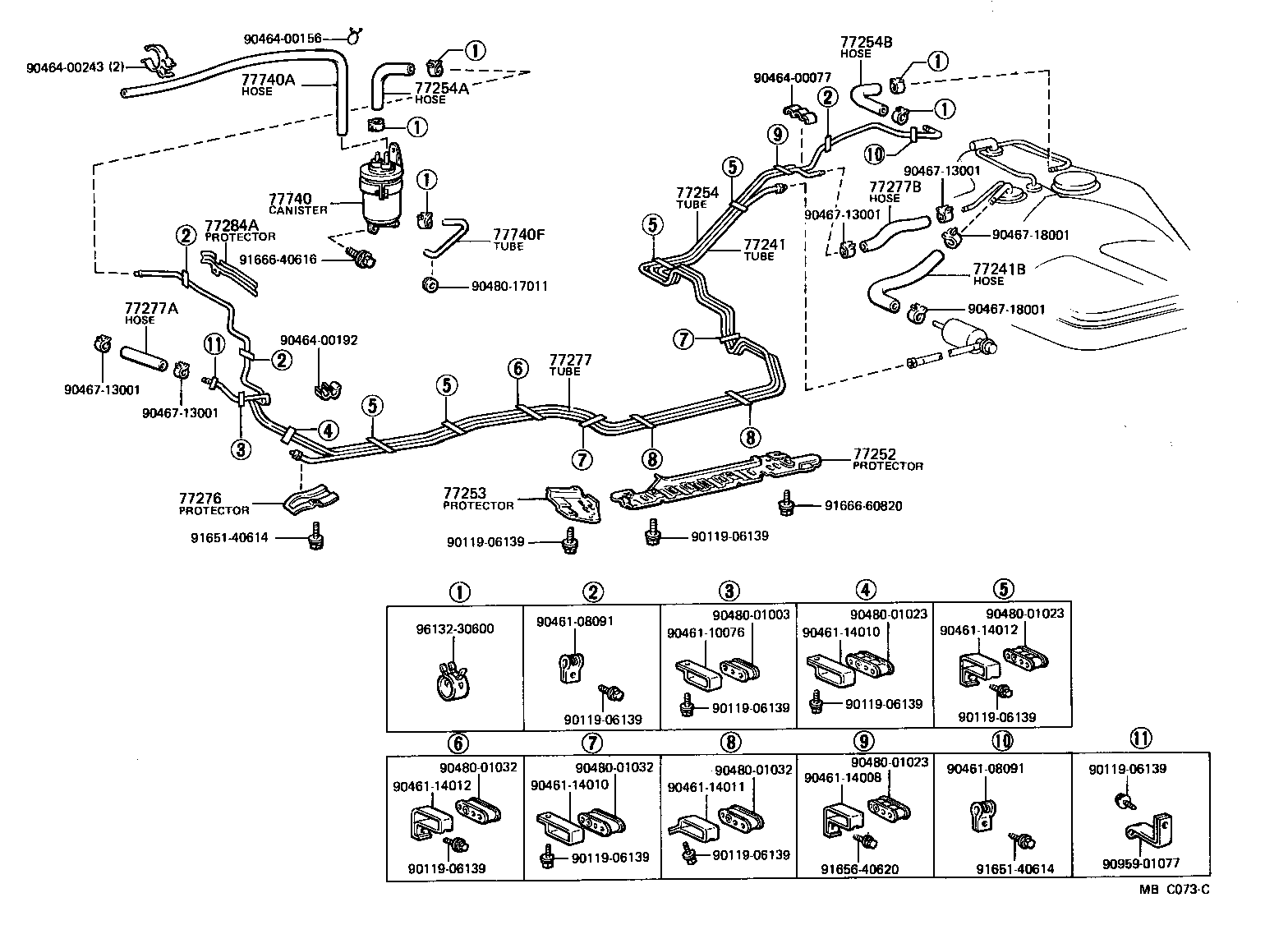

(8009- )SED
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-22250 |
MX6#..SED |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77259-22030 |
MX6#..SED |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-22020 |
MX6# |
1 | ||
| 77253 - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-22010 |
MX6# |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-22060 |
MX6#..SED |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
MX6# *H,L=170 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
MX6#..SED *H,L=170 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22010 |
MX6# |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-22140 |
MX62..SED |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95335-08034 |
MX62 *H,L=340 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95335-08022 |
MX6#..SED L=220 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-22190 |
MX62 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
MX62 *H,L=800,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-22010 |
MX6# |
1 | ||
| Common parts | ||||
| 90119-06139 | ||||
| 90461-08091 | ||||
| 90461-10076 | ||||
| 90461-14008 | ||||
| 90461-14010 | ||||
| 90461-14011 | ||||
| 90461-14012 | ||||
| 90464-00077 | ||||
| 90464-00156 | ||||
| 90464-00192 | ||||
| 90464-00243 | ||||
| 90467-13001 | ||||
| 90467-18001 | ||||
| 90480-01003 | ||||
| 90480-01023 | ||||
| 90480-01032 | ||||
| 90480-17011 | ||||
| 90959-01077 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 91666-40616 | ||||
| 91666-60820 | ||||
| 96132-30600 | ||||
