MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

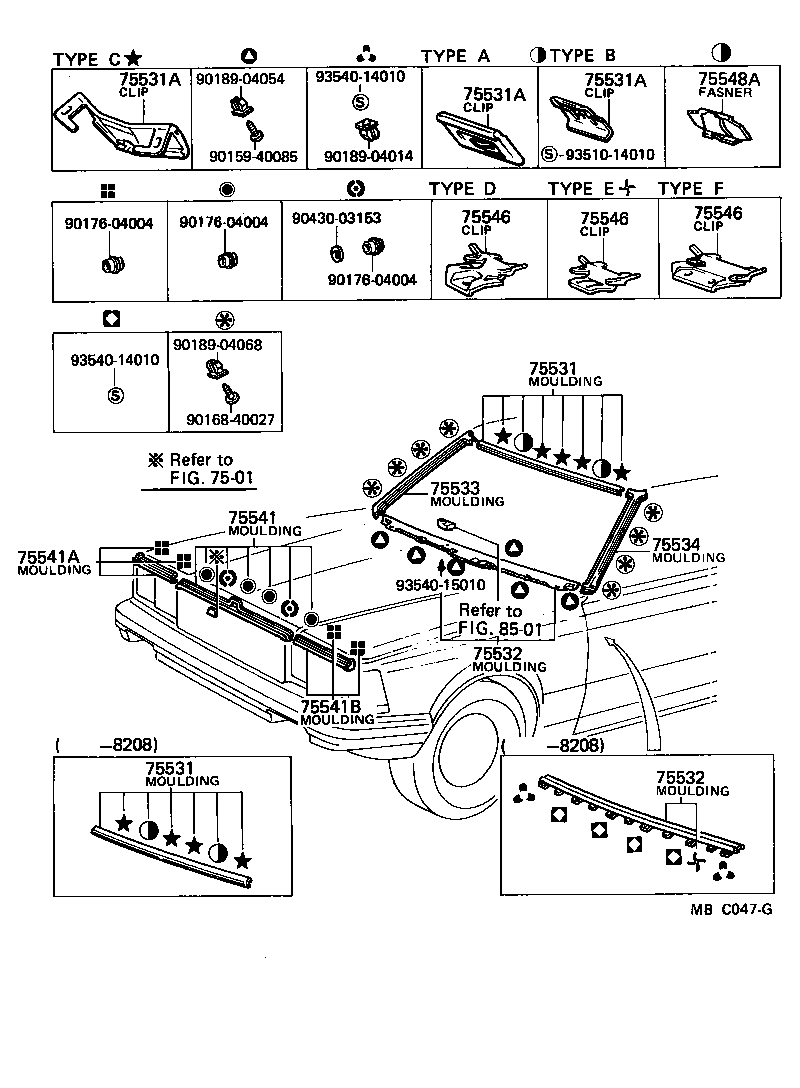

Click highlighted areas on diagram

diagram 7501 75531 75531 75531A 75531A 75531A 75532 75532 75533 75534 75541 75541A 75541B 75546 75546 75546 75548A 8501 9015940085 9016840027 9017604004 9017604004 9017604004 9018904014 9018904054 9018904068 9043003153 9351014010 9354014010 9354014010 9354015010
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-22070

MX6#

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-22070

MX6#

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-22020

MX62

TYPE C

 4
75545-30040

MX6#

TYPE B

 2
75545-30021

MX62

TYPE A

 2
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-22020

MX62

TYPE C

 4
75545-30040

MX6#

TYPE B

 2
75545-30021

MX62

TYPE A

 2
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-22020

MX62

TYPE C

 4
75545-30040

MX6#

TYPE B

 2
75545-30021

MX62

TYPE A

 2
75532 - MOULDING, WINDSHIELD, LOWER
75504-22020

MX62

 1
75532 - MOULDING, WINDSHIELD, LOWER
75504-22020

MX62

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-22090

MX62

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-22080

MX62

 1
75541 - MOULDING, HOOD, FRONT
75770-29085

MX62

 1
75541A - MOULDING, HOOD, FRONT RH
75780-29035

MX62

 1
75541B - MOULDING, HOOD, FRONT LH
75790-29025

MX62

 1
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-22030

MX62

TYPE D

 4
75961-22020

MX62

TYPE F

 2
75547-22020

MX62

TYPE E

 5
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-22030

MX62

TYPE D

 4
75961-22020

MX62

TYPE F

 2
75547-22020

MX62

TYPE E

 5
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-22030

MX62

TYPE D

 4
75961-22020

MX62

TYPE F

 2
75547-22020

MX62

TYPE E

 5
Common parts
90159-40085
90168-40027
90176-04004
90189-04014
90189-04054
90189-04068
90430-03153
93510-14010
93540-14010
93540-15010
Linked diagrams
7501
8501
