MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

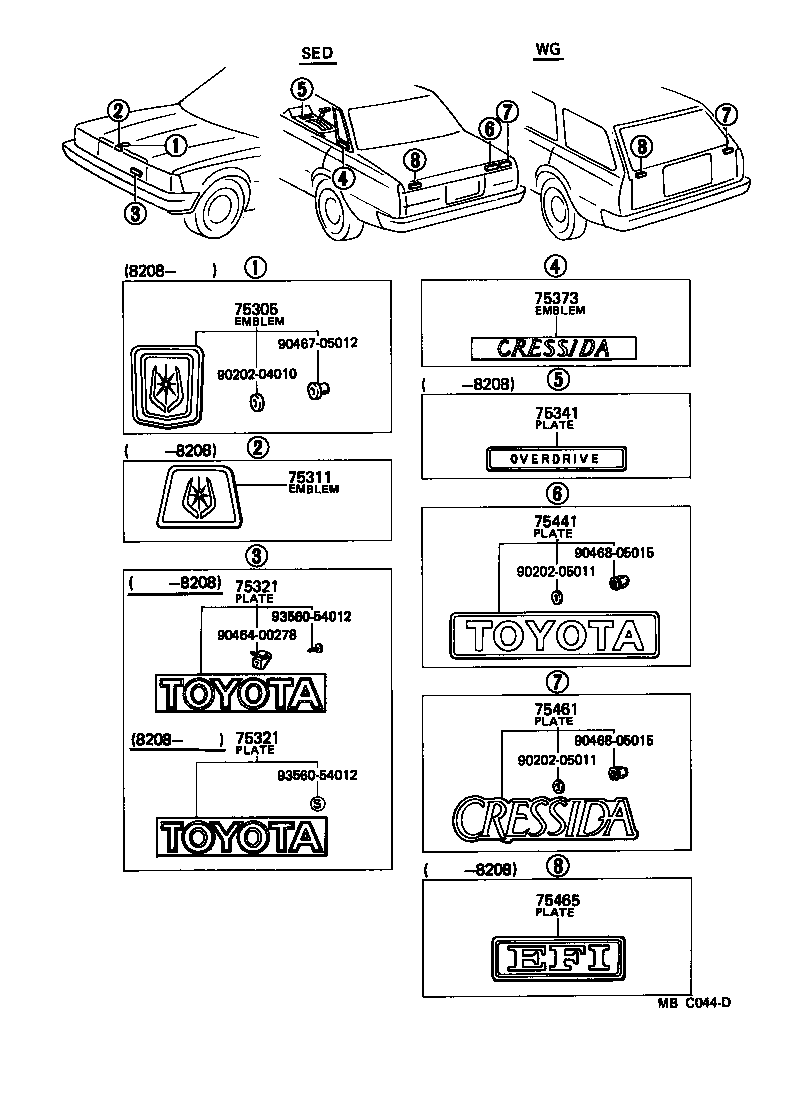

Click highlighted areas on diagram

diagram 75305 75311 75321 75321 75341 75373 75441 75461 75465 9020204010 9020205011 9020205011 9046400278 9046705012 9046805015 9046805015 9356054012 9356054012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75331-22020

MX62

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-29475

MX62

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-29475

MX62

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
58835-20020

MX62

OVER DRIVE

 1
75373 - EMBLEM, QUARTER WINDOW MOULDING
75373-22030

MX6#..SED

CRESSIDA

 2
75441 - PLATE, REAR NAME, NO.1
75442-22020

MX6#..SED

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-22080

MX6#

CRESSIDA

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75444-22070

MX62

EFI

 1
Common parts
90202-04010
90202-05011
90464-00278
90467-05012
90468-05015
93560-54012
