MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

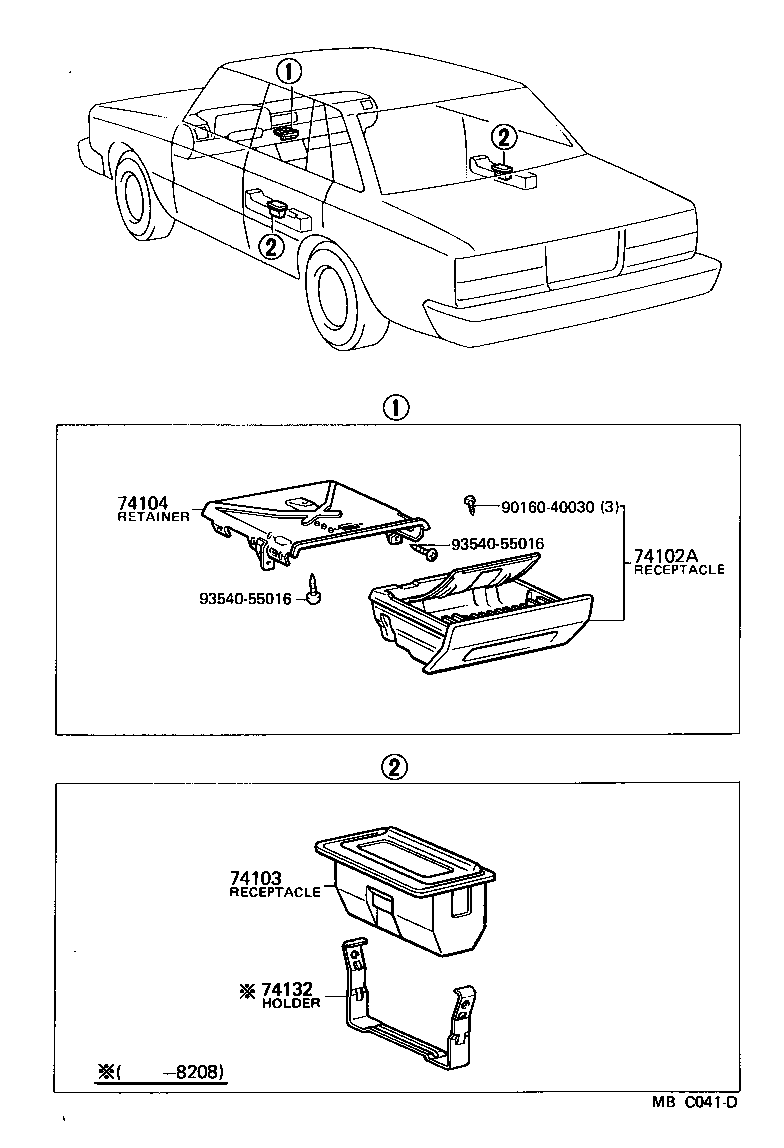

Click highlighted areas on diagram

diagram 74102A 74103 74104 74132 9016040030 9354055016 9354055016
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-2204004

MX62

BLUE,BLUE

 1
74102-2204001

MX62

BLACK,BLACK

 1
74102-2204006

MX6#

D-BROWN,BROWN

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-22040

MX62

 2
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-22080

MX6#..USA

 1
74132 - HOLDER, REAR ASH RECEPTACLE
74239-22020

MX62

 2
Common parts
90160-40030
93540-55016
