MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

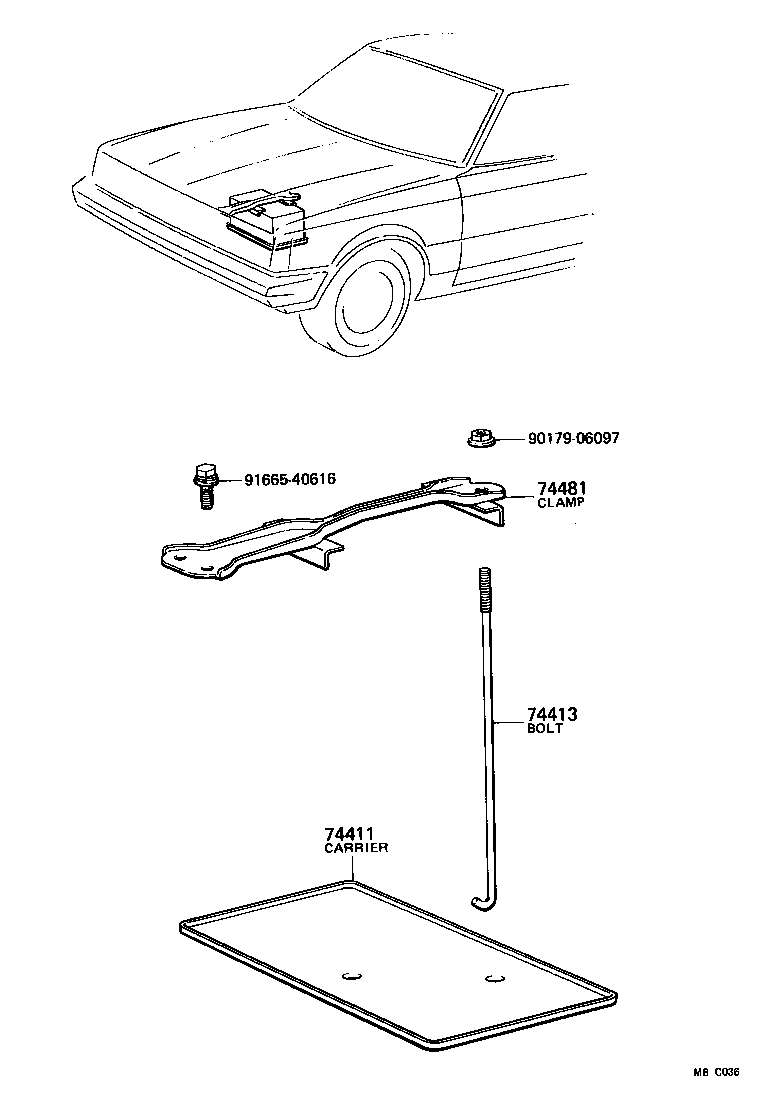

Click highlighted areas on diagram

diagram 74411 74413 74481 9017906097 9166540616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14040

MX6#

N70ZL

 1
74431-14030

MX62..SED..USA

N50ZL

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

MX6#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-22130

MX62

 1
Common parts
90179-06097
91665-40616
