MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

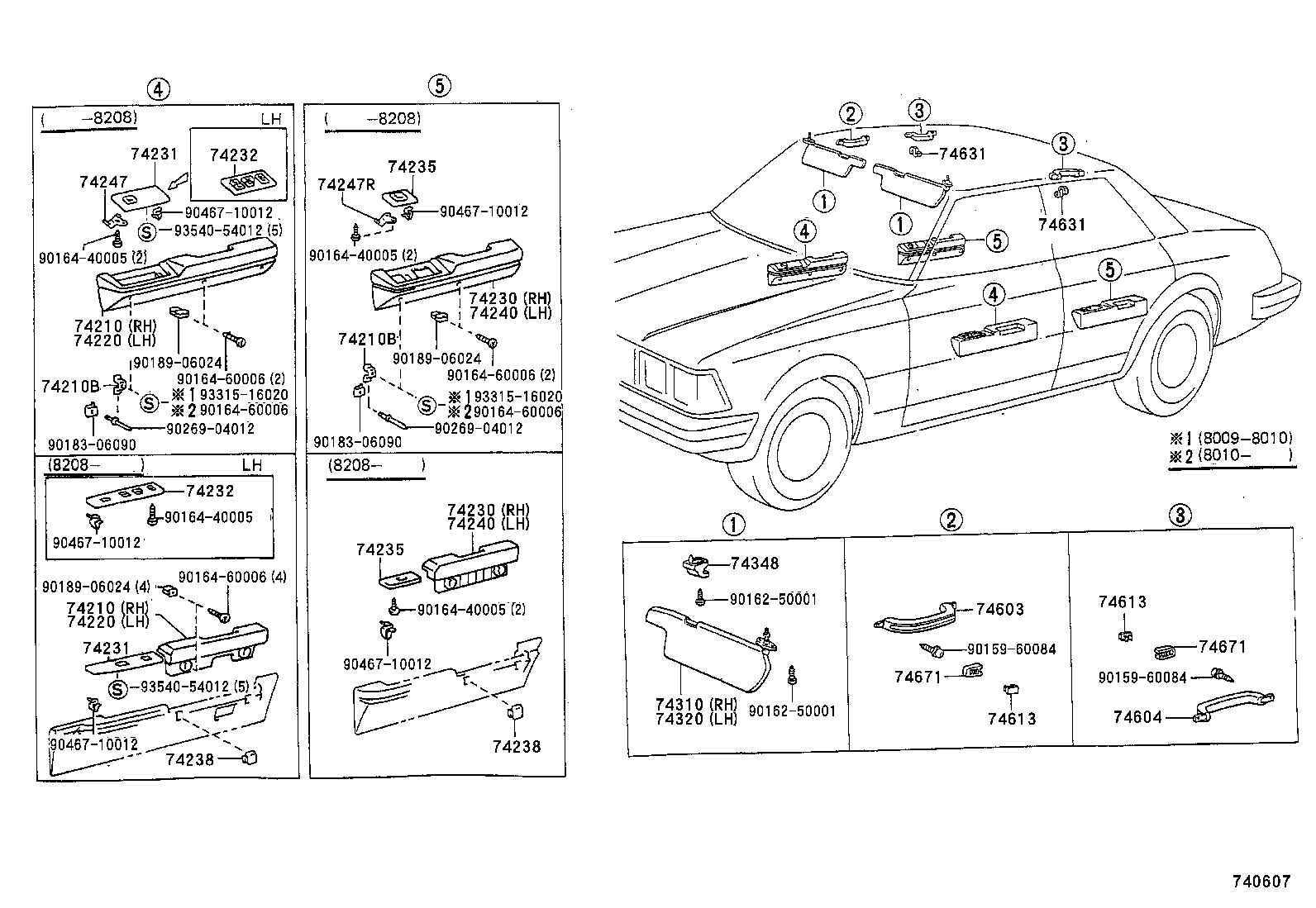

Click highlighted areas on diagram

diagram 74210 74210 74210B 74210B 74220 74220 74230 74230 74231 74231 74232 74232 74235 74235 74238 74238 74240 74240 74247 74247R 74310 74320 74348 74603 74604 74613 74613 74631 74631 74671 74671 9015960084 9015960084 9016250001 9016250001 9016440005 9016440005 9016440005 9016440005 9016460006 9016460006 9016460006 9016460006 9016460006 9018306090 9018306090 9018906024 9018906024 9018906024 9026904012 9026904012 9046710012 9046710012 9046710012 9046710012 9046710012 9331516020 9331516020 9354054012 9354054012
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-2208106

MX62

D-BROWN,BROWN

 1
74210-2208104

MX62

BLUE,BLUE

 1
74210-2208101

MX62

BLACK,BLACK

 1
74210 - ARMREST ASSY, FRONT, RH
74210-2208106

MX62

D-BROWN,BROWN

 1
74210-2208104

MX62

BLUE,BLUE

 1
74210-2208101

MX62

BLACK,BLACK

 1
74210B - BRACKET, ARMREST SET
67645-22010

MX62

 4
74210B - BRACKET, ARMREST SET
67645-22010

MX62

 4
74220 - ARMREST ASSY, FRONT, LH
74220-2207101

MX62

BLACK,BLACK

 1
74220-2207106

MX62

D-BROWN,BROWN

 1
74220-2207104

MX62

BLUE,BLUE

 1
74220 - ARMREST ASSY, FRONT, LH
74220-2207101

MX62

BLACK,BLACK

 1
74220-2207106

MX62

D-BROWN,BROWN

 1
74220-2207104

MX62

BLUE,BLUE

 1
74230 - ARMREST ASSY, REAR, RH
74250-2202101

MX62

BLACK,BLACK

 1
74250-2202106

MX62

D-BROWN,BROWN

 1
74250-2202104

MX62

BLUE,BLUE

 1
74230 - ARMREST ASSY, REAR, RH
74250-2202101

MX62

BLACK,BLACK

 1
74250-2202106

MX62

D-BROWN,BROWN

 1
74250-2202104

MX62

BLUE,BLUE

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74232-30090

MX62

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74232-30090

MX62

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74241-22010

MX62

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74241-22010

MX62

 1
74235 - PANEL, REAR ARMREST BASE, UPPER
74272-30030

MX62

LH

 1
74271-30030

MX62

RH

 1
74235 - PANEL, REAR ARMREST BASE, UPPER
74272-30030

MX62

LH

 1
74271-30030

MX62

RH

 1
74240 - ARMREST ASSY, REAR, LH
74260-2201106

MX62

D-BROWN,BROWN

 1
74260-2201101

MX62

BLACK,BLACK

 1
74260-2201104

MX62

BLUE,BLUE

 1
74240 - ARMREST ASSY, REAR, LH
74260-2201106

MX62

D-BROWN,BROWN

 1
74260-2201101

MX62

BLACK,BLACK

 1
74260-2201104

MX62

BLUE,BLUE

 1
74247 - HOOK, FRONT DOOR ARMREST UPPER BASE
74247-30010

MX62

 2
74247R - HOOK, REAR DOOR ARMREST UPPER BASE
74247-22010

MX62

 2
74310 - VISOR ASSY, RH
74310-2230008

MX62..USA

IVORY,IVORY

 1
74310-2230004

MX62..USA

BLUE,BLUE

 1
74310-2231004

MX62..USA

BLUE,BLUE

 1
74320 - VISOR ASSY, LH
74320-2238004

MX62..USA

BLUE,BLUE

 1
74320-2238008

MX62..USA

IVORY,IVORY

 1
74320-2237004

MX62..USA

BLUE,BLUE

 1
74320-2237008

MX62..USA

IVORY,IVORY

 1
74320-2238104

MX62..USA

BLUE,BLUE

 1
74348 - HOLDER, VISOR
74348-1201004

MX62

BLUE,BLUE

 2
74348-1201008

MX6#

IVORY,IVORY

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-2202008

MX6#

IVORY,IVORY

 1
74603-2202004

MX62

BLUE,BLUE

 1
74604 - GRIP SUB-ASSY, ASSIST, REAR
74603-2202004

MX62

BLUE,BLUE

 2
74603-2202008

MX6#

IVORY,IVORY

 2
74613 - PLUG, ASSIST GRIP
74617-2201008

MX6#

IVORY,IVORY

 6
74617-2201004

MX62

BLUE,BLUE

 6
74613 - PLUG, ASSIST GRIP
74617-2201008

MX6#

IVORY,IVORY

 6
74617-2201004

MX62

BLUE,BLUE

 6
74631 - HOOK, COAT, A
74631-1401008

MX6#

IVORY,IVORY

 2
74631-1401004

MX62

BLUE,BLUE

 2
74631 - HOOK, COAT, A
74631-1401008

MX6#

IVORY,IVORY

 2
74631-1401004

MX62

BLUE,BLUE

 2
74671 - SUPPORT, ASSIST GRIP
74671-2201008

MX6#

IVORY,IVORY

 6
74671-2201004

MX62

BLUE,BLUE

 6
74671 - SUPPORT, ASSIST GRIP
74671-2201008

MX6#

IVORY,IVORY

 6
74671-2201004

MX62

BLUE,BLUE

 6
Common parts
90159-60084
90162-50001
90164-40005
90164-60006
90183-06090
90189-06024
90269-04012
90467-10012
93315-16020
93540-54012
