MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

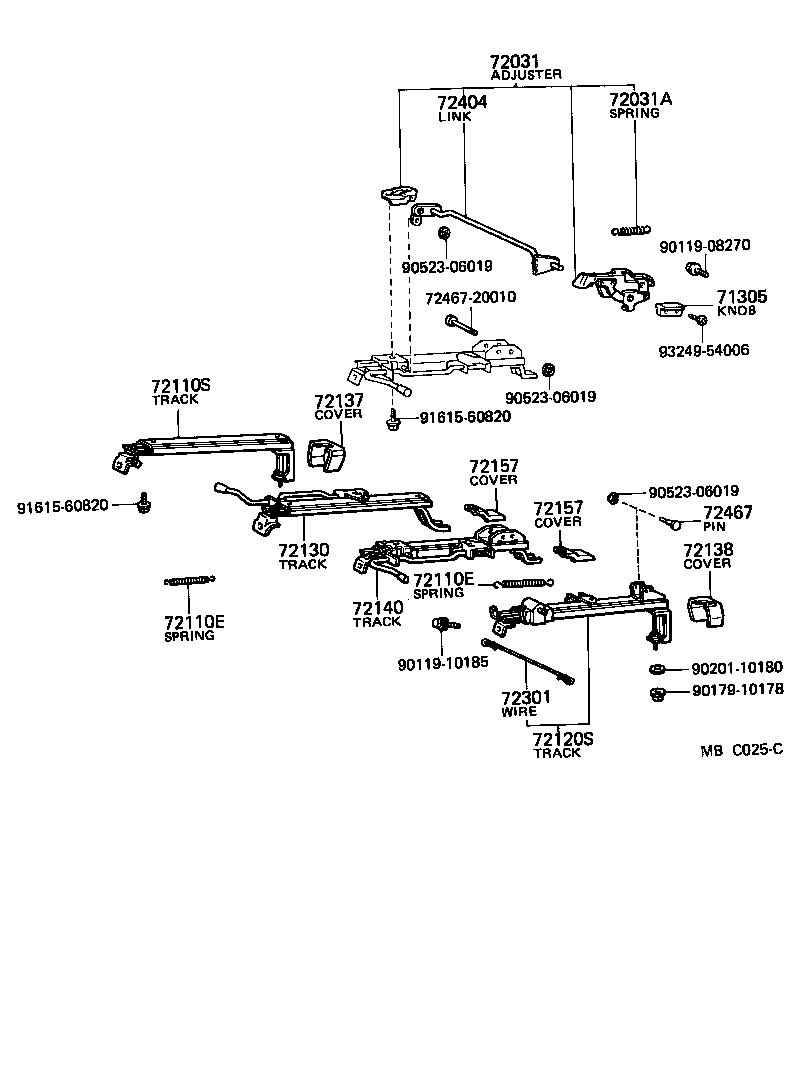

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING | ||||
| 72457-1402004 |
MX62 BLUE,BLUE |
1 | ||
| 72457-1402016 |
MX62 D-BROWN,BROWN |
1 | ||
| 72457-1402001 |
MX62 BLACK,BLACK |
1 | ||
| 72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL | ||||
| 72310-22040 |
MX62 |
1 | ||
| 72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER) | ||||
| 90506-18025 |
MX62 |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18008 |
MX6# |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18008 |
MX6# |
2 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-22230 |
MX62 |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-22220 |
MX62 |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-22120 |
MX62 |
1 | ||
| 72130-22140 |
MX62 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-2202001 |
MX62 BLACK,BLACK |
1 | ||
| 72137-2202104 |
MX62 BLUE,BLUE |
1 | ||
| 72137-2202101 |
MX62 BLACK,BLACK |
1 | ||
| 72137-2202006 |
MX62 D-BROWN,BROWN |
1 | ||
| 72137-2202004 |
MX62 BLUE,BLUE |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-2201101 |
MX62 BLACK,BLACK |
1 | ||
| 72138-2201204 |
MX62 BLUE,BLUE |
1 | ||
| 72138-2201104 |
MX62 BLUE,BLUE |
1 | ||
| 72138-2201201 |
MX62 BLACK,BLACK |
1 | ||
| 72138-2201106 |
MX62 D-BROWN,BROWN |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-22110 |
MX62 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-2204006 |
MX6# D-BROWN,BROWN |
2 | ||
| 72157-2204001 |
MX62 BLACK,BLACK |
2 | ||
| 72157-2204004 |
MX62 BLUE,BLUE |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-2204006 |
MX6# D-BROWN,BROWN |
2 | ||
| 72157-2204001 |
MX62 BLACK,BLACK |
2 | ||
| 72157-2204004 |
MX62 BLUE,BLUE |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-22070 |
MX62 |
1 | ||
| 72404 - LINK SUB-ASSY, VERTICAL SEAT | ||||
| 72404-20021 |
MX6# |
1 | ||
| 72467 - PIN, VERTICAL ADJUSTER | ||||
| 72467-20010 |
MX6# |
2 | ||
| Common parts | ||||
| 72467-20010 | ||||
| 90119-08270 | ||||
| 90119-10185 | ||||
| 90179-10178 | ||||
| 90201-10180 | ||||
| 90523-06019 | ||||
| 91615-60820 | ||||
| 93249-54006 | ||||
