MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )SED

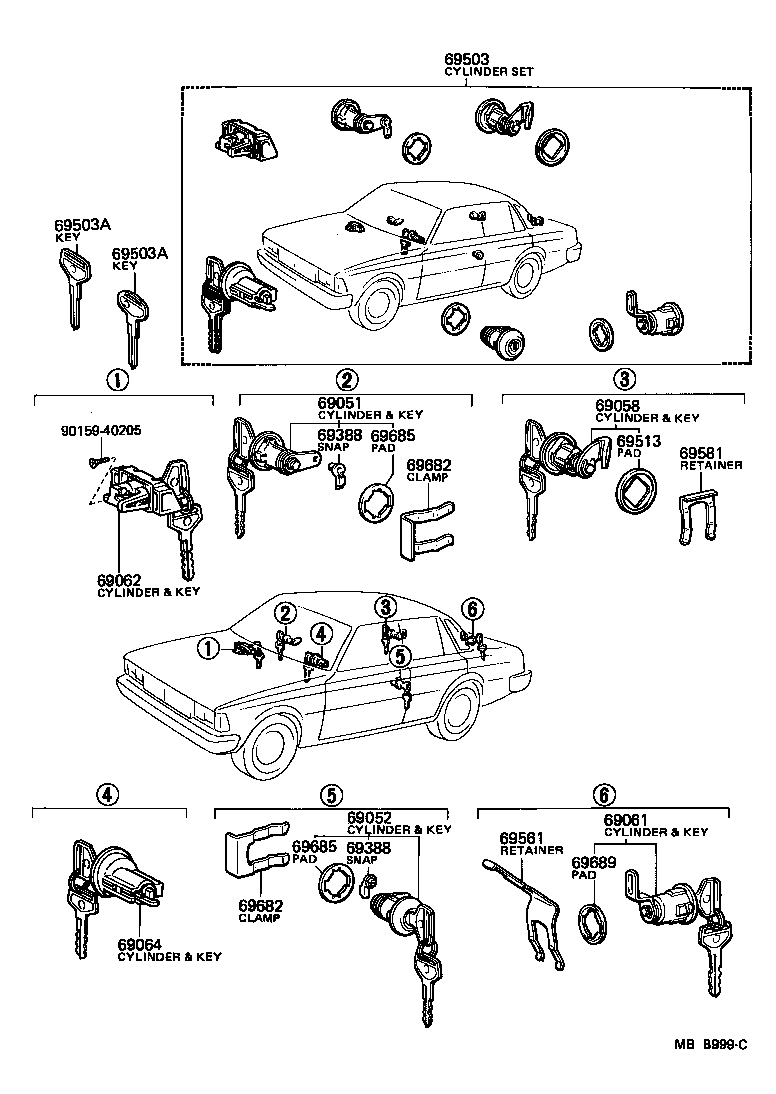

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-29229 |
MX62..SED |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-29229 |
MX62..SED |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-29016 |
MX62..SED |
1 | ||
| 69061 - CYLINDER & KEY SET, LUGGAGE LOCK | ||||
| 69055-29155 |
MX62..SED |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-2203006 |
MX62..SED D-BROWN,BROWN |
1 | ||
| 69056-2203001 |
MX62..SED BLACK,BLACK |
1 | ||
| 69056-2203004 |
MX62 BLUE,BLUE |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-22020 |
MX62..SED |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-22020 |
MX62 LH,FR DOOR |
1 | ||
| 69759-22010 |
MX62 RH,FR DOOR |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-22020 |
MX62 LH,FR DOOR |
1 | ||
| 69759-22010 |
MX62 RH,FR DOOR |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-2210001 |
MX62..SED BLACK,BLACK |
1 | ||
| 69005-2210006 |
MX62..SED D-BROWN,BROWN |
1 | ||
| 69005-2210004 |
MX62 BLUE,BLUE |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00070 |
MX6#..SED SUB |
1 | ||
| 90999-00069 |
MX6#..SED MASTER KEY,MASTER,W/O PROTECTOR |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00070 |
MX6#..SED SUB |
1 | ||
| 90999-00069 |
MX6#..SED MASTER KEY,MASTER,W/O PROTECTOR |
2 | ||
| 69513 - PAD, FUEL FILLER LID LOCK CYLINDER | ||||
| 69513-14010 |
MX6#..SED |
1 | ||
| 69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE | ||||
| 69561-22030 |
MX6#..SED |
1 | ||
| 69581 - RETAINER, FUEL FILLER LID CYLINDER | ||||
| 69581-14010 |
MX6#..SED |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69681-20040 |
MX62 |
2 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69681-20040 |
MX62 |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-12020 |
MX6# |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-12020 |
MX6# |
2 | ||
| 69689 - PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER | ||||
| 69685-12010 |
MX6#..SED |
1 | ||
| Common parts | ||||
| 90159-40205 | ||||
