MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

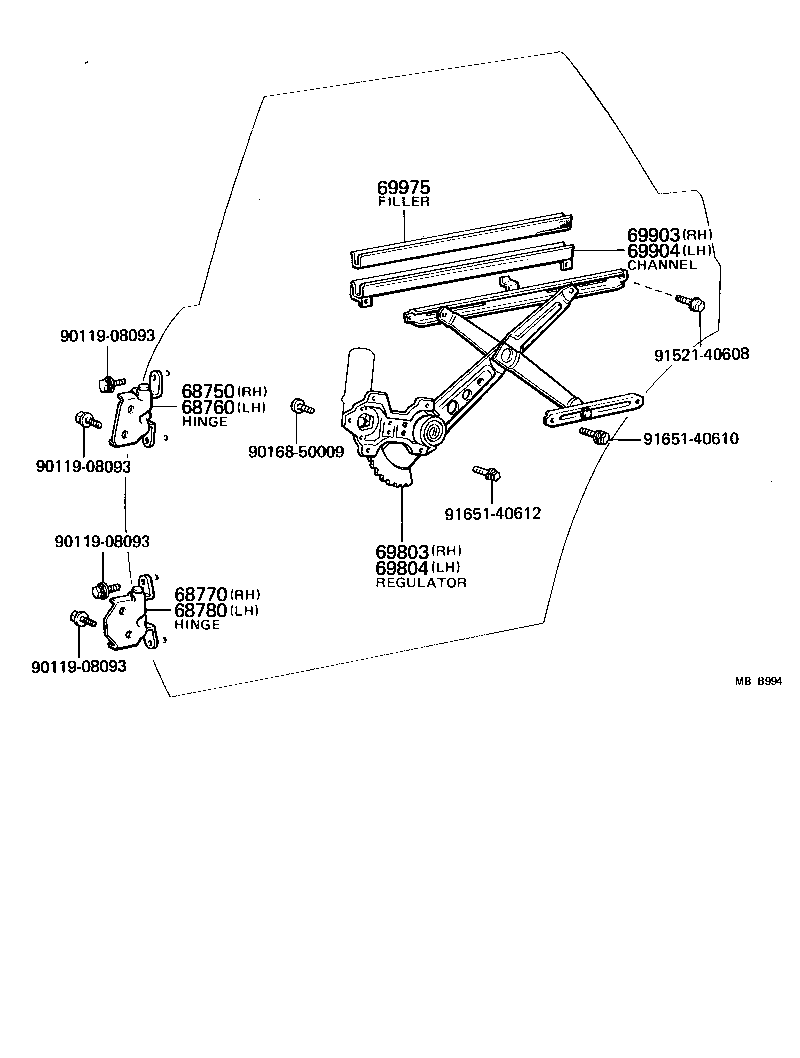

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 69903 69904 69975 9011908093 9011908093 9011908093 9011908093 9016850009 9152140608 9165140610 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68710-22040

MX6#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68720-22030

MX6#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68730-20070

MX6#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68740-20070

MX6#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-22070

MX62

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-22070

MX62

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-20030

MX6#

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-20030

MX6#

 1
69975 - FILLER, REAR DOOR GLASS BRACKET
69975-20020

MX6#

 2
Common parts
90119-08093
90168-50009
91521-40608
91651-40610
91651-40612
