MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

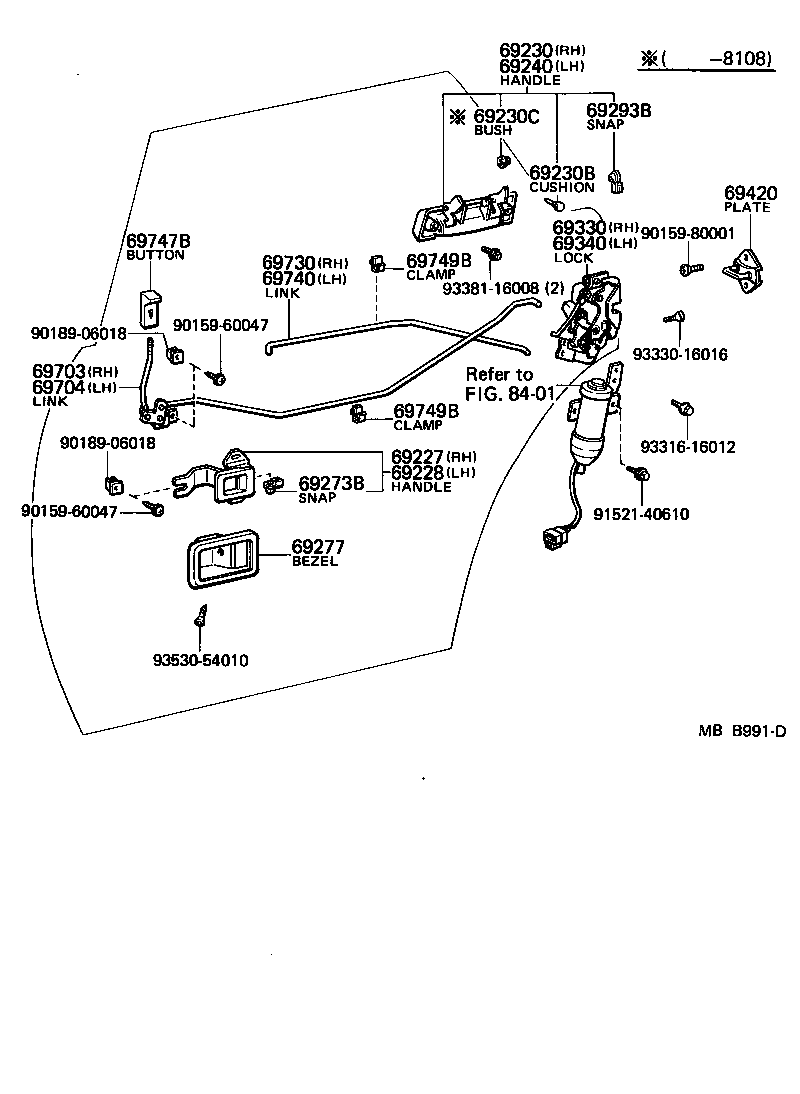

Click highlighted areas on diagram

diagram 69227 69228 69230 69230B 69230C 69240 69273B 69277 69293B 69330 69340 69420 69703 69704 69730 69740 69747B 69749B 69749B 8401 9015960047 9015960047 9015980001 9018906018 9018906018 9152140610 9331616012 9333016016 9338116008 9353054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69206-30010

MX6#

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69205-30010

MX6#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-22040

MX62

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

MX6#

 4
69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE)
69395-20020

MX62

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-22040

MX62

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69279-12020

MX6#

LH

 1
69288-12010

MX6#

RH

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-1604004

MX62

BLUE,BLUE

 2
69277-1604006

MX6#

D-BROWN,BROWN

 2
69277-1604001

MX62

BLACK,BLACK

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-22070

MX62

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-22080

MX62

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-22030

MX6#

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-22030

MX6#

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-22030

MX6#

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-22030

MX6#

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-22030

MX6#

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-3002001

MX62

BLACK,BLACK

 2
69741-3002006

MX6#

D-BROWN,BROWN

 2
69741-3002004

MX62

BLUE,BLUE

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

MX6#

 4
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

MX6#

 4
Common parts
90159-60047
90159-80001
90189-06018
91521-40610
93316-16012
93330-16016
93381-16008
93530-54010
Linked diagrams
8401
