MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

Click highlighted areas on diagram

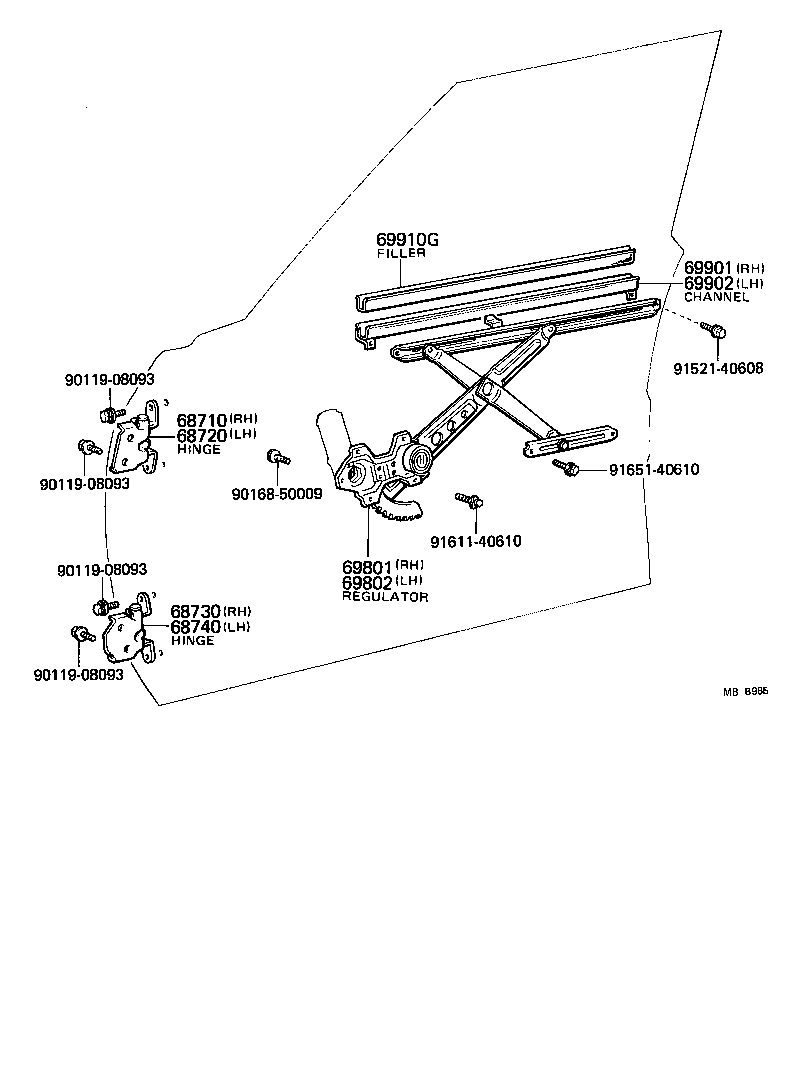

diagram 68710 68720 68730 68740 69801 69802 69901 69902 69910G 9011908093 9011908093 9011908093 9011908093 9016850009 9152140608 9161140610 9165140610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-22040

MX6#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-22030

MX6#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20070

MX6#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20070

MX6#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-22070

MX62

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-22070

MX62

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-22060

MX6#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-22020

MX6#

 1
69910G - FILLER, FRONT DOOR GLASS CHANNEL
69971-22040

MX62

 2
Common parts
90119-08093
90168-50009
91521-40608
91611-40610
91651-40610
