MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

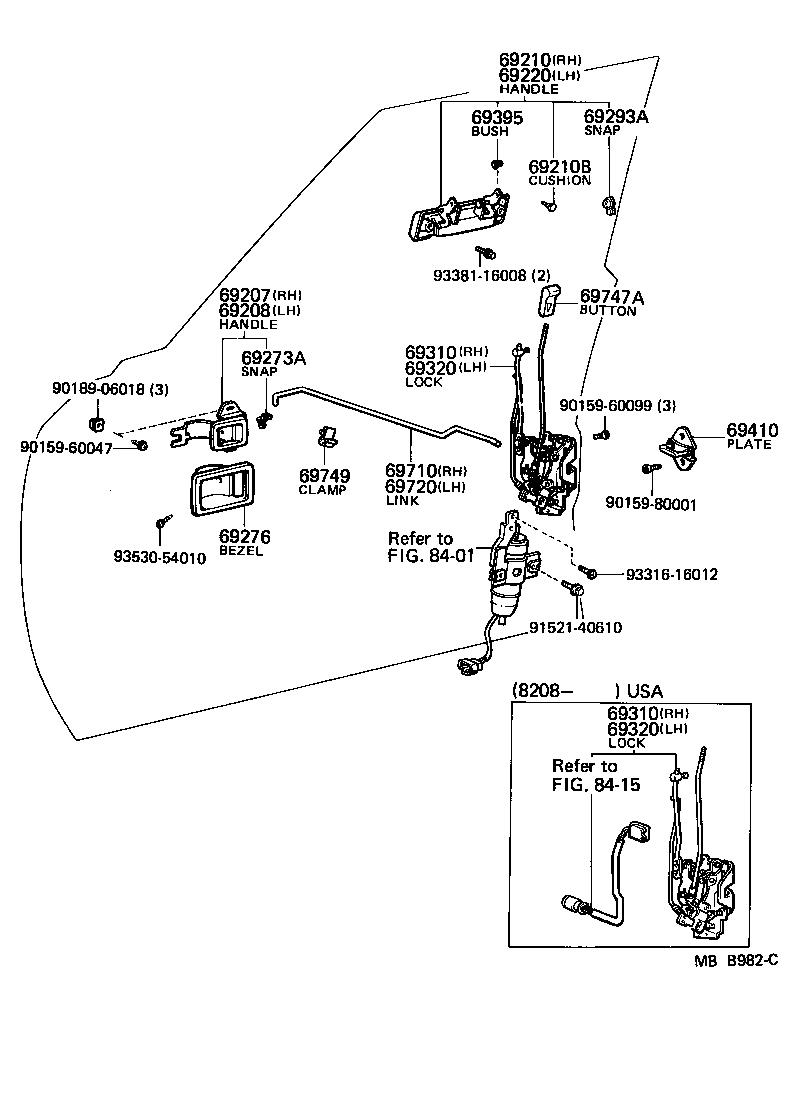

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69273A 69276 69293A 69310 69310 69320 69320 69395 69410 69710 69720 69747A 69749 8401 8415 9015960047 9015960099 9015980001 9018906018 9152140610 9331616012 9338116008 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30010

MX6#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30010

MX6#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22040

MX62

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

MX6#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-22040

MX62

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69288-12010

MX6#

LH

 2
69279-12020

MX6#

RH

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604006

MX6#

D-BROWN,BROWN

 2
69277-1604004

MX62

BLUE,BLUE

 2
69277-1604001

MX62

BLACK,BLACK

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22130

MX62..USA

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22130

MX62..USA

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22150

MX62..USA

 1
69320-22120

MX62..USA

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22150

MX62..USA

 1
69320-22120

MX62..USA

 1
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69395-20020

MX62

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22030

MX6#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-22030

MX6#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-22030

MX6#

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3002004

MX62

BLUE,BLUE

 2
69741-3002001

MX62

BLACK,BLACK

 2
69741-3002006

MX6#

D-BROWN,BROWN

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

MX62

 2
Common parts
90159-60047
90159-60099
90159-80001
90189-06018
91521-40610
93316-16012
93381-16008
93530-54010
Linked diagrams
8401
8415
