MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )USA

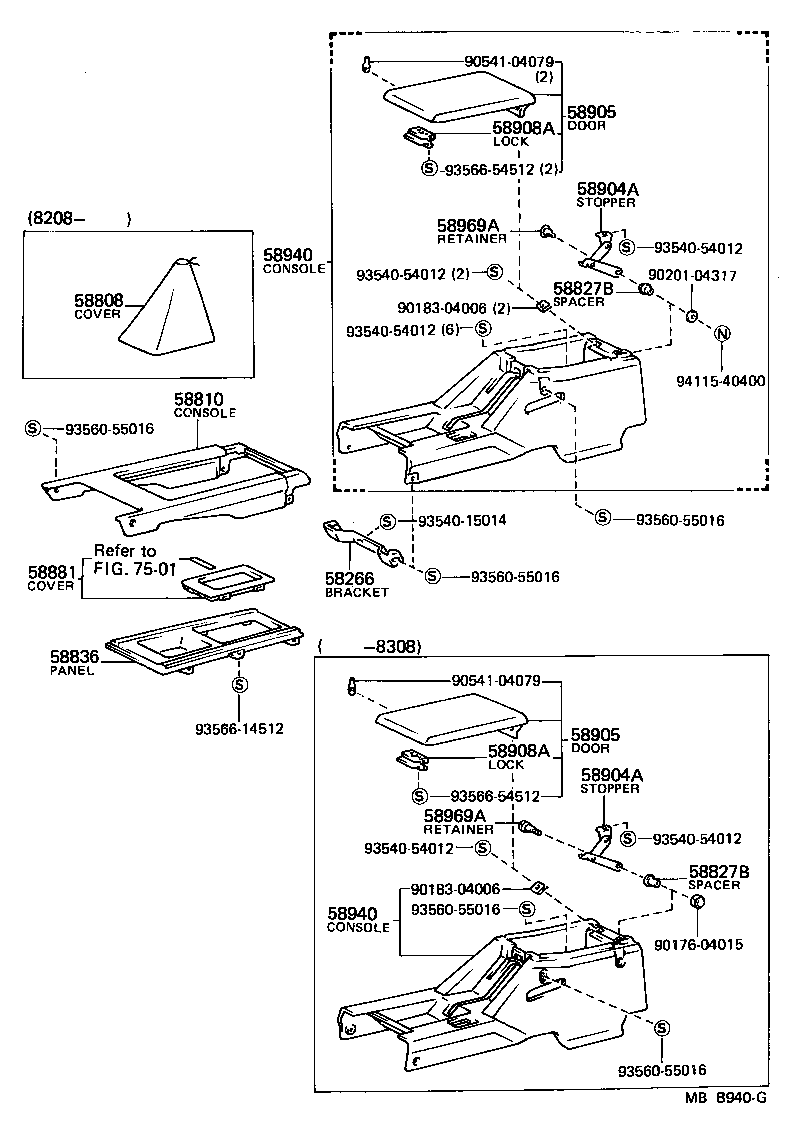

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT | ||||
| 58996-22010 |
MX62 |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-2212001 |
MX62 BLACK,BLACK |
1 | ||
| 58811-2212006 |
MX6# D-BROWN,BROWN |
1 | ||
| 58811-2212004 |
MX62 BLUE,BLUE |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
MX62 |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
MX62 |
1 | ||
| 58836 - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-22010 |
MX62 |
1 | ||
| 58821-22030 |
MX62..USA W/CRUISE COMPUTER |
1 | ||
| 58881 - COVER, SHIFTING HOLE | ||||
| 58841-22050 |
MX62 |
1 | ||
| 58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58904-22020 |
MX6# |
1 | ||
| 58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58904-22020 |
MX6# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2202001 |
MX62 BLACK,BLACK |
1 | ||
| 58905-2202004 |
MX62 BLUE,BLUE |
1 | ||
| 58905-2202006 |
MX6# D-BROWN,BROWN |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2202001 |
MX62 BLACK,BLACK |
1 | ||
| 58905-2202004 |
MX62 BLUE,BLUE |
1 | ||
| 58905-2202006 |
MX6# D-BROWN,BROWN |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-22010 |
MX6# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-22010 |
MX6# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-2203001 |
MX62..USA BLACK,BLACK |
1 | ||
| 58901-2203004 |
MX62..USA BLUE,BLUE |
1 | ||
| 58901-2203106 |
MX62..USA D-BROWN,BROWN |
1 | ||
| 58901-2203006 |
MX62..USA D-BROWN,BROWN |
1 | ||
| 58901-2203104 |
MX62..USA BLUE,BLUE |
1 | ||
| 58901-2203101 |
MX62..USA BLACK,BLACK |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-2203001 |
MX62..USA BLACK,BLACK |
1 | ||
| 58901-2203004 |
MX62..USA BLUE,BLUE |
1 | ||
| 58901-2203106 |
MX62..USA D-BROWN,BROWN |
1 | ||
| 58901-2203006 |
MX62..USA D-BROWN,BROWN |
1 | ||
| 58901-2203104 |
MX62..USA BLUE,BLUE |
1 | ||
| 58901-2203101 |
MX62..USA BLACK,BLACK |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
MX6# |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
MX6# |
1 | ||
| Common parts | ||||
| 90176-04015 | ||||
| 90183-04006 | ||||
| 90201-04317 | ||||
| 90541-04079 | ||||
| 93540-15014 | ||||
| 93540-54012 | ||||
| 93560-55016 | ||||
| 93566-14512 | ||||
| 93566-54512 | ||||
| 94115-40400 | ||||
| Linked diagrams | ||||
| 7501 | ||||
