MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

Click highlighted areas on diagram

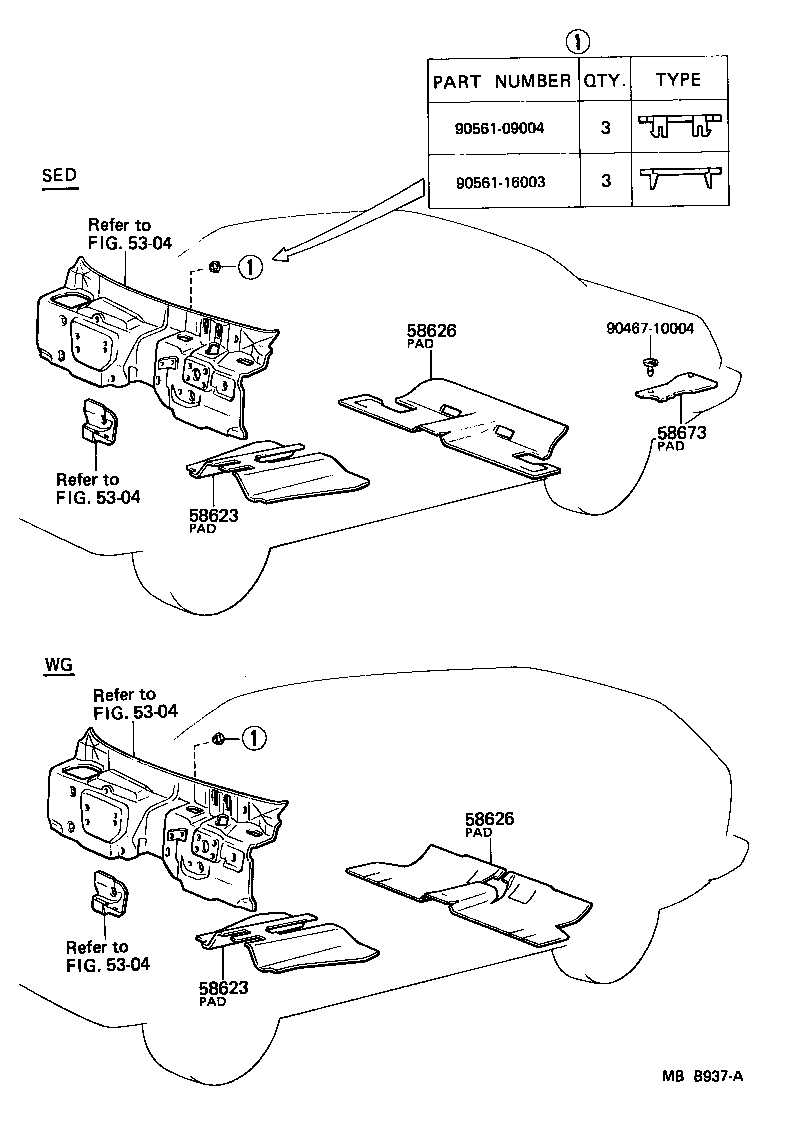

diagram 5304 5304 5304 5304 58623 58623 58626 58626 58673 9046710004 9056109004 9056116003
Part # Description Qty Price
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-22100

MX6#

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-22100

MX6#

 1
58626 - PAD, FLOOR SILENCER, REAR
58624-22060

MX6#..SED

 1
58626 - PAD, FLOOR SILENCER, REAR
58624-22060

MX6#..SED

 1
58673 - PAD, REAR FLOOR SILENCER, NO.1
58676-22010

MX6#..SED

 1
Common parts
90467-10004
90561-09004
90561-16003
Linked diagrams
5304
