MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

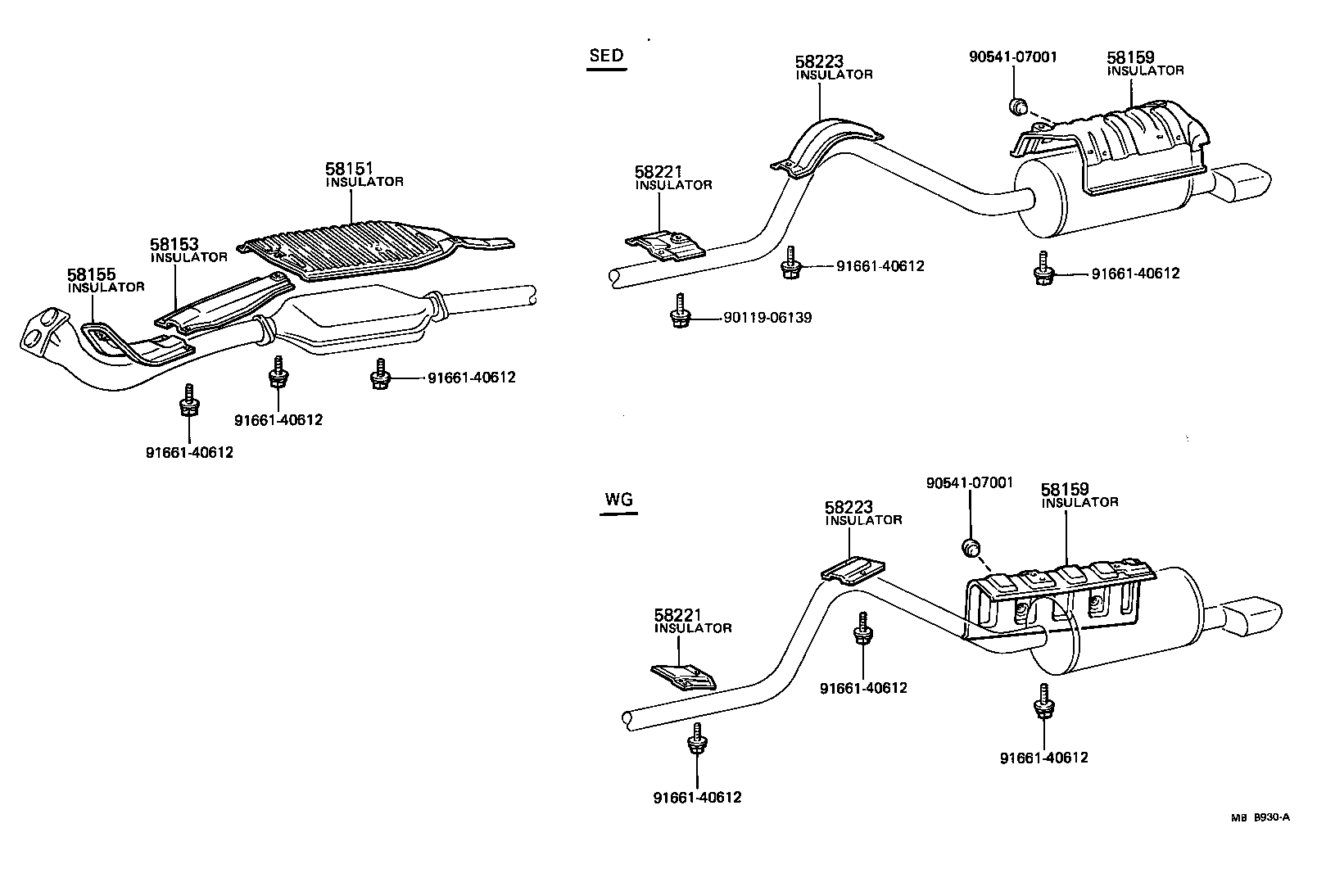

Click highlighted areas on diagram

diagram 58151 58153 58155 58159 58159 58221 58221 58223 58223 9011906139 9054107001 9054107001 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-22041

MX62

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-22030

MX6#

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-22020

MX62

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58031-22020

MX6#..SED

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58031-22020

MX6#..SED

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-22060

MX62..SED

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-22060

MX62..SED

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-22040

MX62..SED

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-22040

MX62..SED

 1
Common parts
90119-06139
90541-07001
91661-40612
