MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )SED

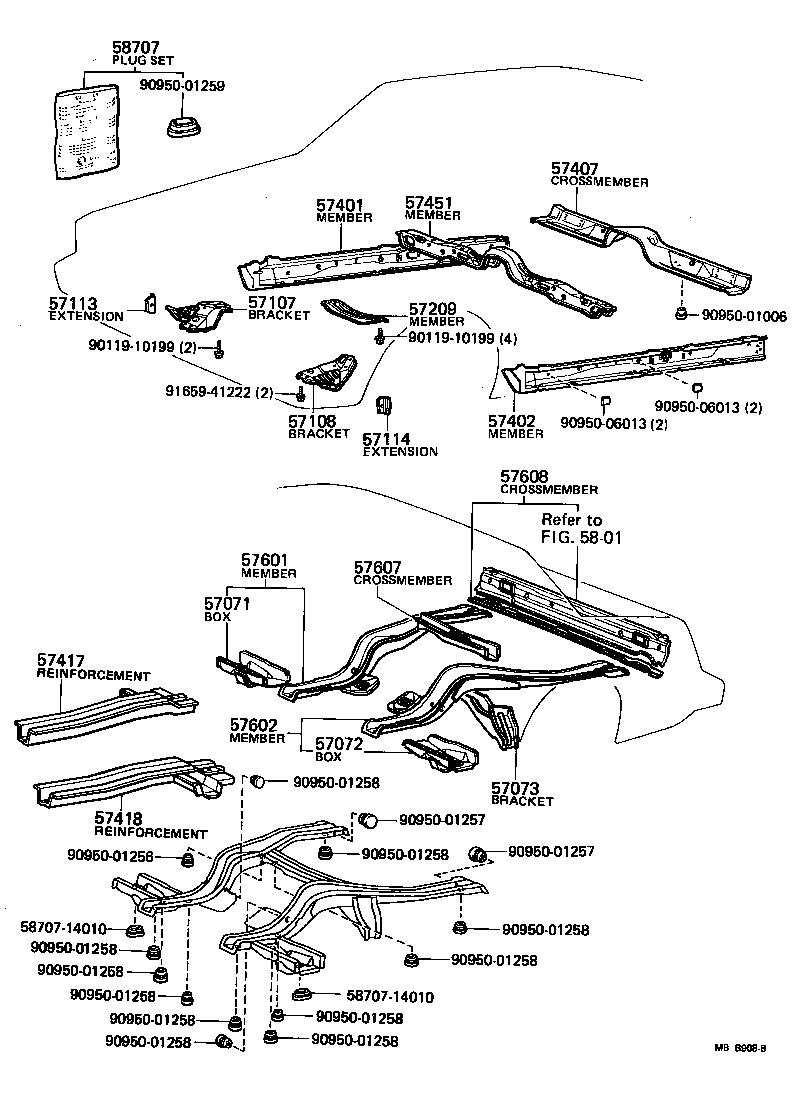

Click highlighted areas on diagram

diagram 57071 57072 57073 57107 57108 57113 57114 57209 57401 57402 57407 57417 57418 57451 57601 57602 57607 57608 5801 58707 5870714010 5870714010 9011910199 9011910199 9095001006 9095001256 9095001257 9095001257 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001259 9095006013 9095006013 9165941222
Part # Description Qty Price
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-22040

MX62..SED

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-22040

MX62..SED

 1
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-22031

MX62..SED

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22030

MX6#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22090

MX6#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22040

MX6#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22040

MX6#

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-22111

MX62

 1
57255-22110

MX62

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22060

MX62..USA

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22060

MX62..USA

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-22030

MX6#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57505-22020

MX6#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57506-22020

MX6#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-22012

MX62

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22905

MX62..SED

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-22905

MX62..SED

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-22053

MX6#..SED

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-22901

MX6#..SED

 1
58707 - PLUG SET, HOLE
58707-14010

MX62

 2
Common parts
58707-14010
90119-10199
90950-01006
90950-01256
90950-01257
90950-01258
90950-01259
90950-06013
91659-41222
Linked diagrams
5801
