MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

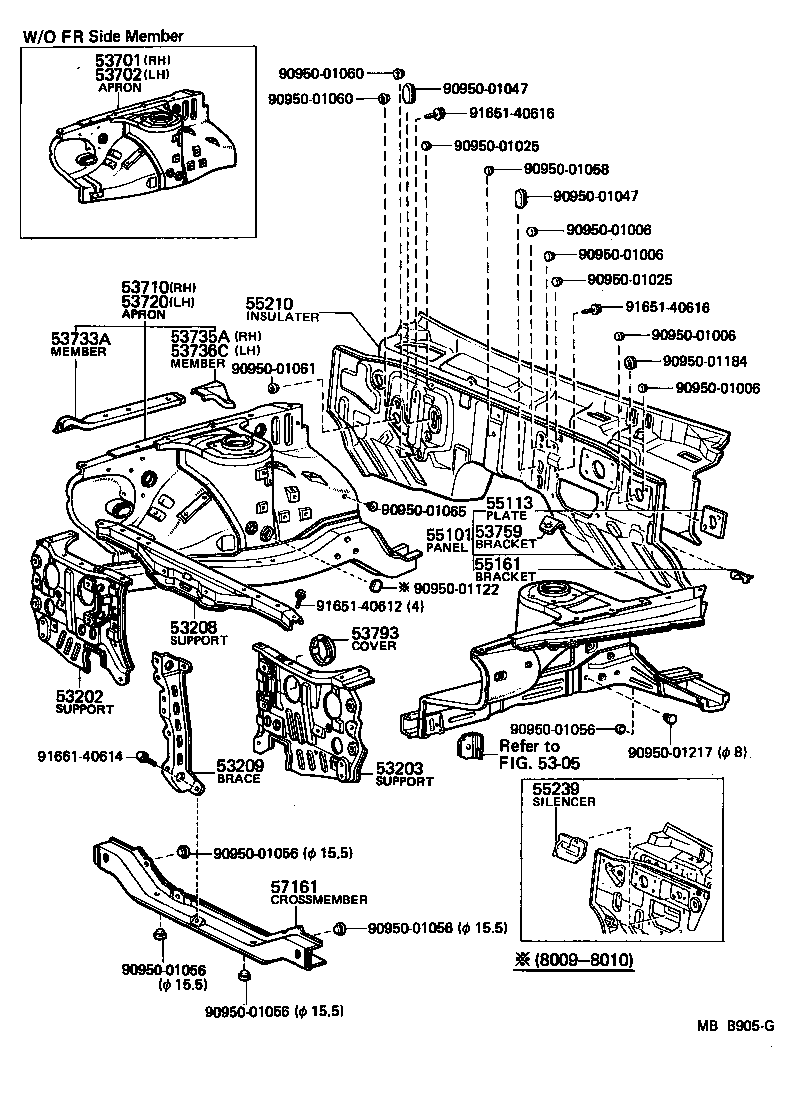

Click highlighted areas on diagram

diagram 5305 53202 53203 53208 53209 53701 53702 53710 53720 53733A 53735A 53736C 53759 53793 55101 55113 55161 55210 55239 57161 9095001006 9095001006 9095001006 9095001006 9095001025 9095001025 9095001047 9095001047 9095001056 9095001056 9095001056 9095001056 9095001056 9095001058 9095001060 9095001060 9095001061 9095001065 9095001122 9095001184 9095001217 9165140612 9165140616 9165140616 9166140614
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-22080

MX62

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-22100

MX62

 1
53208 - SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER
53205-22030

MX62

 1
53209 - BRACE SUB-ASSY, HOOD LOCK
53217-22070

MX62

 1
53217-22071

MX62

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-22911

MX62

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-22911

MX62

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-22150

MX62

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-22220

MX62

 1
53733A - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT
53734-22040

MX6#

LH

 1
53733-22040

MX6#

RH

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-22030

MX6#

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-22030

MX6#

 1
53793 - COVER, HEADLAMP WIRE HARNESS HOLE, NO.1
53793-22010

MX6#

 2
55101 - PANEL SUB-ASSY, DASH
55101-22470

MX62

 1
55161 - BRACKET, HEATER MOUNTING
55164-22020

MX6#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-22100

MX6#

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55212-22090

MX6#

 1
57161 - CROSSMEMBER, FRONT
57104-22080

MX62

 1
Common parts
90950-01006
90950-01025
90950-01047
90950-01056
90950-01058
90950-01060
90950-01061
90950-01065
90950-01122
90950-01184
90950-01217
91651-40612
91651-40616
91661-40614
Linked diagrams
5305
