MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

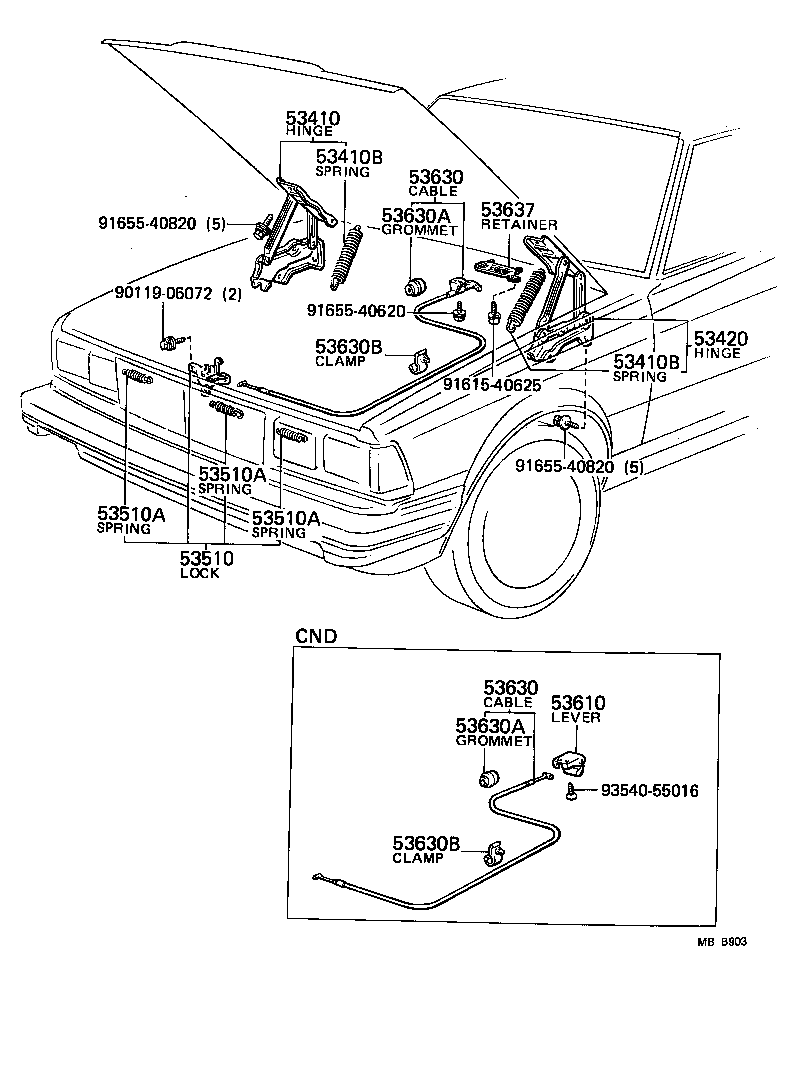

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-22040 |
MX6# |
1 | ||
| 53410B - SPRING, TENSION(FOR HOOD HINGE) | ||||
| 90506-58003 |
MX6# |
2 | ||
| 53410B - SPRING, TENSION(FOR HOOD HINGE) | ||||
| 90506-58003 |
MX6# |
2 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-22040 |
MX6# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-22100 |
MX62..USA |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
MX6# WD=2.0,CW=17,CW=17,WD=2.0 |
1 | ||
| 90506-09008 |
MX6# WD=0.9,CW=21.25,CW=21,WD=0.9 |
2 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
MX6# WD=2.0,CW=17,CW=17,WD=2.0 |
1 | ||
| 90506-09008 |
MX6# WD=0.9,CW=21.25,CW=21,WD=0.9 |
2 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
MX6# WD=2.0,CW=17,CW=17,WD=2.0 |
1 | ||
| 90506-09008 |
MX6# WD=0.9,CW=21.25,CW=21,WD=0.9 |
2 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-22090 |
MX6#..USA |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-22090 |
MX6#..USA |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 69749-12010 |
MX6# |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 69749-12010 |
MX6# |
1 | ||
| 53637 - RETAINER, HOOD LOCK CONTROL CABLE | ||||
| 53637-22010 |
MX6#..USA |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 91615-40625 | ||||
| 91655-40620 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
