MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)SED

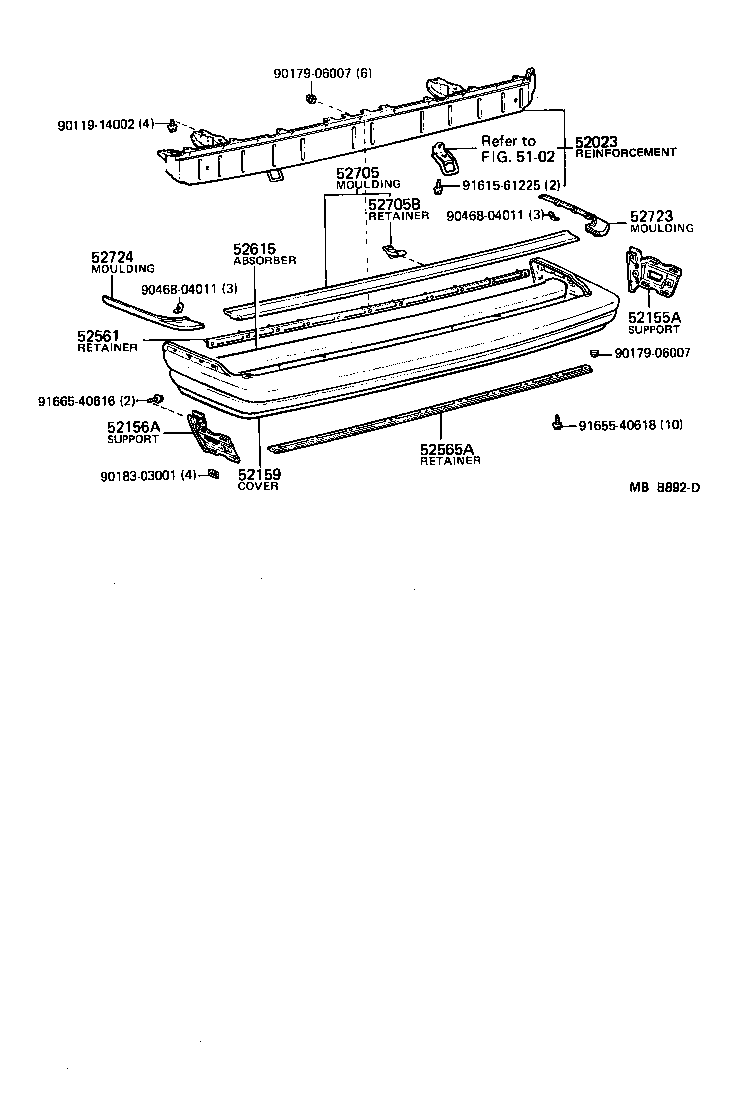

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22060 |
MX62..SED |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-22050 |
MX62..SED |
1 | ||
| 52155-22051 |
MX62..SED |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-22070 |
MX62..SED |
1 | ||
| 52156-22071 |
MX62..SED |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-22900 |
MX62..SED COLORED BUMPER |
1 | ||
| 52159-22030 |
MX62 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-22040 |
MX62 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22010 |
MX62 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-22020 |
MX62..SED |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52705-22020 |
MX62..SED |
1 | ||
| 52705B - RETAINER, REAR BUMPER MOULDING | ||||
| 52717-22010 |
MX62..SED |
8 | ||
| 52723 - MOULDING, REAR BUMPER EXTENSION, RH | ||||
| 52723-22011 |
MX62..SED |
1 | ||
| 52724 - MOULDING, REAR BUMPER EXTENSION, LH | ||||
| 52724-22011 |
MX62..SED |
1 | ||
| Common parts | ||||
| 90119-14002 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90468-04011 | ||||
| 91615-61225 | ||||
| 91655-40618 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5102 | ||||
