MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

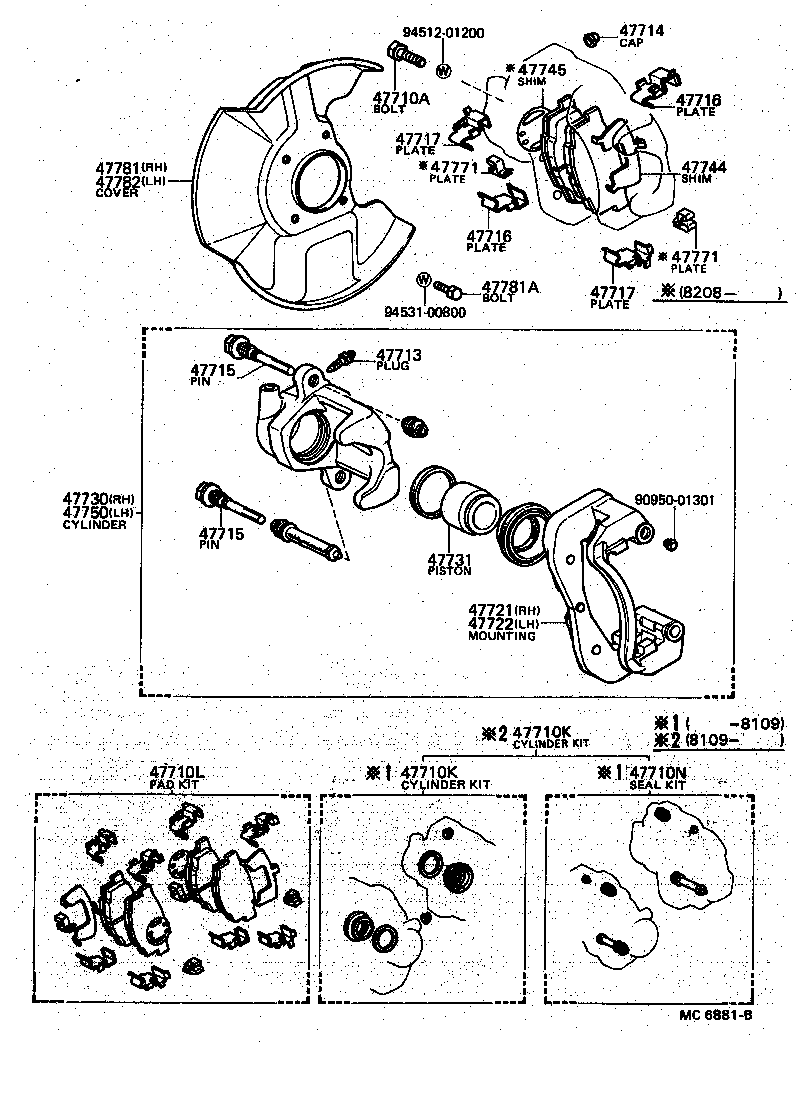

ILLUST NO. 1 OF 2(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12030 |
MX6# *12-1.25PX31-20 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-30050 |
MX62 |
1 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-30050 |
MX62 |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-22140 |
MX62 |
1 | ||
| 47710N - SEAL KIT, DISC BRAKE, FRONT | ||||
| 04498-22010 |
MX62 |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12040 |
MX6# |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
MX6# |
2 | ||
| 47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 47715-22010 |
MX6# |
4 | ||
| 47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 47715-22010 |
MX6# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-22010 |
MX6# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-22010 |
MX6# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-22010 |
MX6# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-22010 |
MX6# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-22010 |
MX62 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-22010 |
MX62 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-22100 |
MX62 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-30050 |
MX6# |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-22040 |
MX6# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-22100 |
MX62 |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-22070 |
MX6# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-08341 |
MX6# |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-22070 |
MX6# |
1 | ||
| Common parts | ||||
| 90950-01301 | ||||
| 94512-01200 | ||||
| 94531-00800 | ||||
ILLUST NO. 2 OF 2(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-22140 |
MX62 MARK ADVICS PS534 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-22090 |
MX62 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-22050 |
MX62 |
1 | ||
