MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-30030 |
MX62 AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
MX6# JKC |
1 | ||
| 44606-35100 |
MX62 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22321 |
MX62 JKC |
1 | ||
| 44610-22370 |
MX62 AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-22280 |
MX62 AISIN |
1 | ||
| 04443-22220 |
MX62 JKC |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
MX62 AISIN |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
MX62 AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25080 |
MX6# JKC |
1 | ||
| 44642-30030 |
MX62 AISIN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
MX62 AISIN |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
MX62 AISIN |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
MX62 AISIN |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-20460 |
MX62 AISIN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
MX62 AISIN |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-22380 |
MX62 AISIN |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
MX62 AISIN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MX62 AISIN |
1 | ||
| 90480-24517 |
MX62 JKC |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-30170 |
MX62 AISIN |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
MX62 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
MX62 AISIN |
1 | ||
| 44730-22090 |
MX62 JKC |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22120 |
MX62 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
MX6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
(8009-8208)

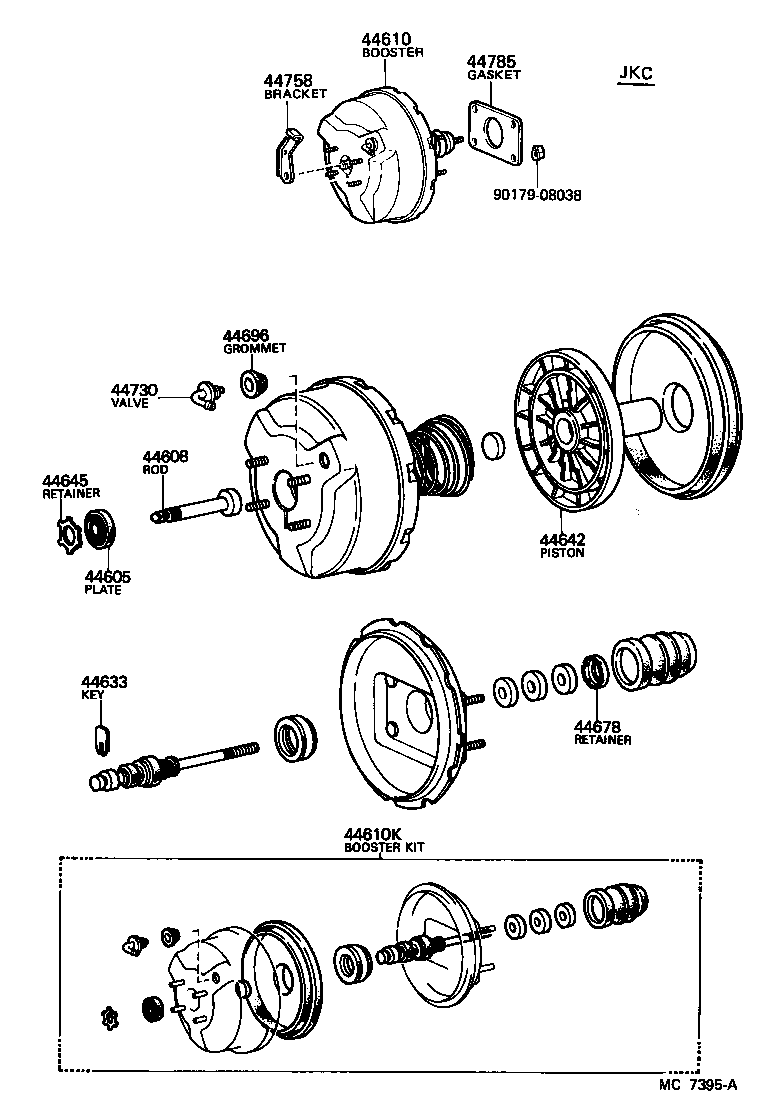

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
MX6# JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
MX6# JKC |
1 | ||
| 44606-35100 |
MX62 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22321 |
MX62 JKC |
1 | ||
| 44610-22370 |
MX62 AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-22280 |
MX62 AISIN |
1 | ||
| 04443-22220 |
MX62 JKC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
MX6# JKC |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25080 |
MX6# JKC |
1 | ||
| 44642-30030 |
MX62 AISIN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
MX6# JKC |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
MX6# JKC |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MX62 AISIN |
1 | ||
| 90480-24517 |
MX62 JKC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
MX62 AISIN |
1 | ||
| 44730-22090 |
MX62 JKC |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22120 |
MX62 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
MX6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8009- )

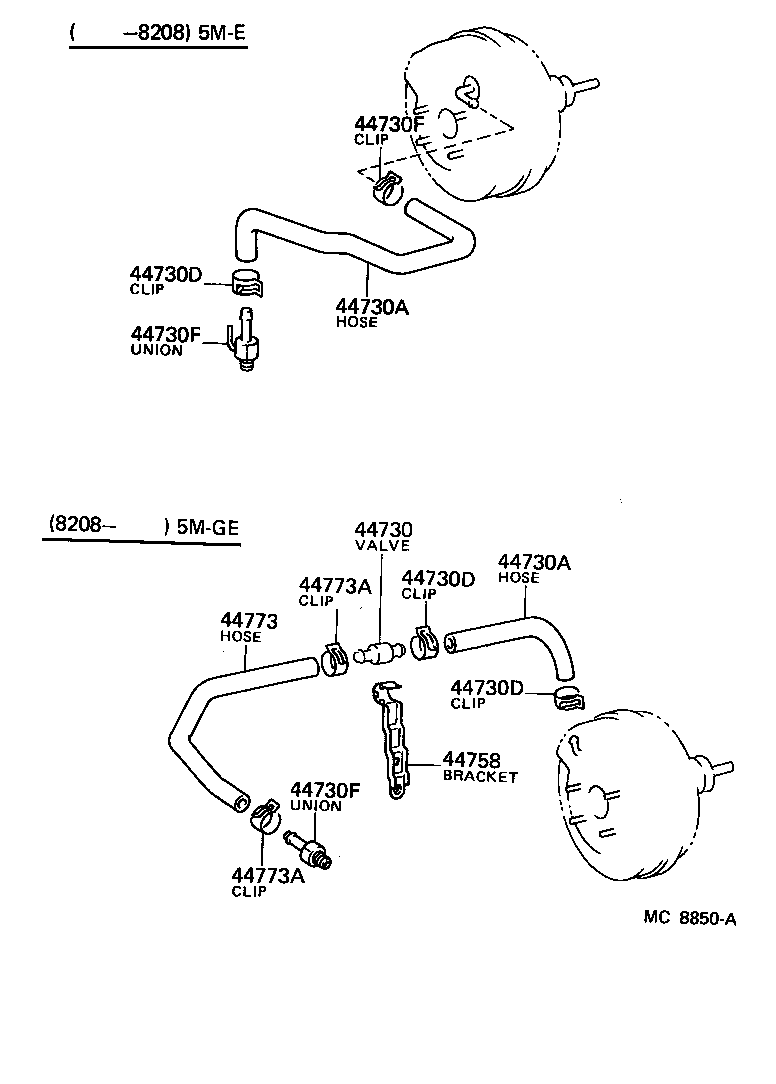

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
MX62 AISIN |
1 | ||
| 44730-22090 |
MX62 JKC |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-22161 |
MX62 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-22161 |
MX62 |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
MX6# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
MX6# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
MX6# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MX62 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MX62 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MX62 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22120 |
MX62 |
1 | ||
