MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )MX62

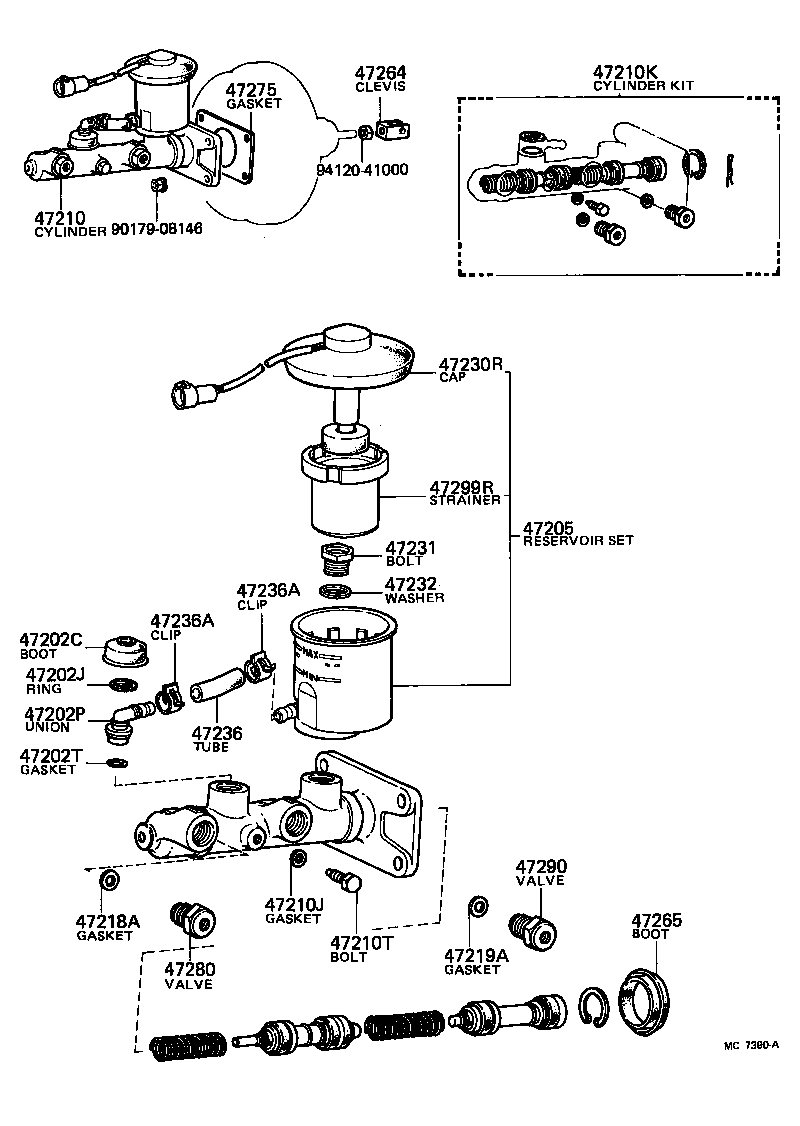

Click highlighted areas on diagram

diagram 47202C 47202J 47202P 47202T 47205 47210 47210J 47210K 47210T 47218A 47219A 47230R 47231 47232 47236 47236A 47236A 47264 47265 47275 47280 47290 47299R 9017908146 9412041000
Part # Description Qty Price
47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)
47265-20060

MX6#

 1
47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)
96151-02000

MX6#

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90407-10003

MX6#

 1
47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)
90301-14001

MX6#

 1
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-22142

MX62

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-22370

MX62

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

MX6#

 1
47210K - CYLINDER KIT, BRAKE MASTER
04493-20110

MX6#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

MX6#

 1
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-09253

MX6#

 1
47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
90430-09253

MX6#

 1
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
84460-22010

MX6#

 1
47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47231-30010

MX6#

 1
47232 - WASHER, BRAKE RESERVOIR SET BOLT
47232-30010

MX6#

 1
47236 - TUBE, RESERVOIR BRAKE
47234-14010

MX6#

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16001

MX6#

 2
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16001

MX6#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

MX6#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

MX6#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-22010

MX6#

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-30030

MX6#

 1
47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47280-30030

MX6#

 1
47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR
47299-20010

MX62

 1
Common parts
90179-08146
94120-41000
