MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

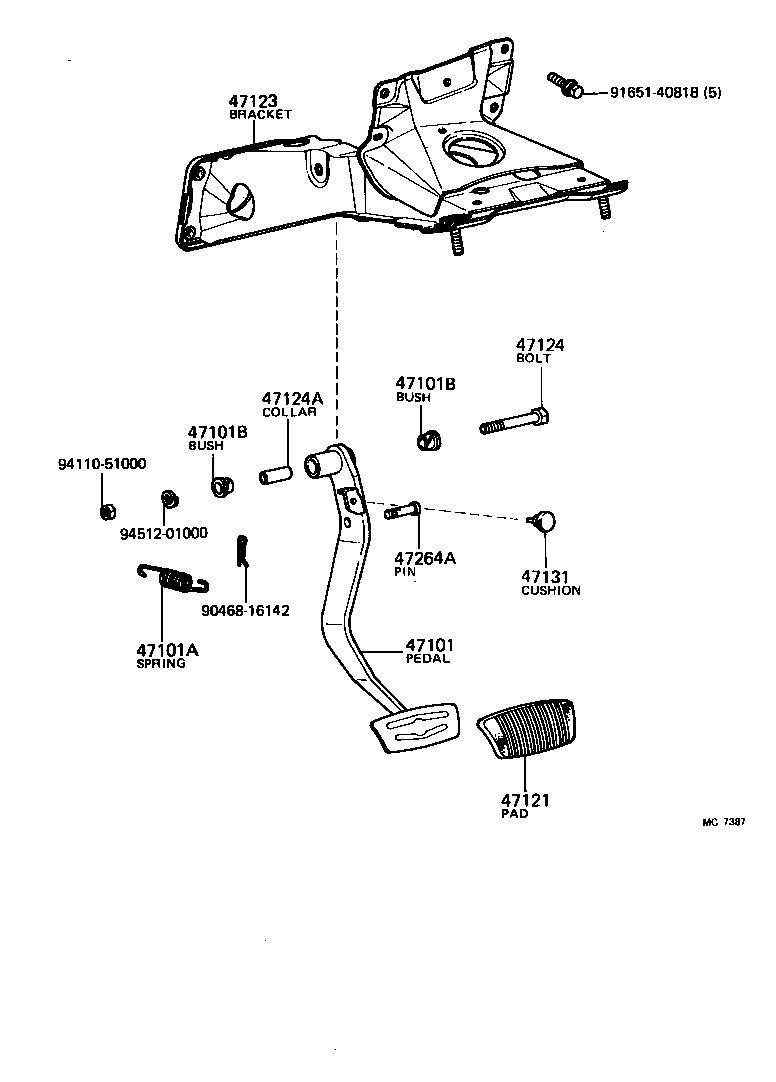

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-22190 |
MX62 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90506-12483 |
MX6# |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13192 |
MX6# |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13192 |
MX6# |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-30050 |
MX6#..ATM |
1 | ||
| 47123 - BRACKET, BRAKE PEDAL | ||||
| 55106-22110 |
MX62 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10039 |
MX6# |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
MX6# |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06008 |
MX6# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-10064 |
MX6# |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91651-40818 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
