MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)

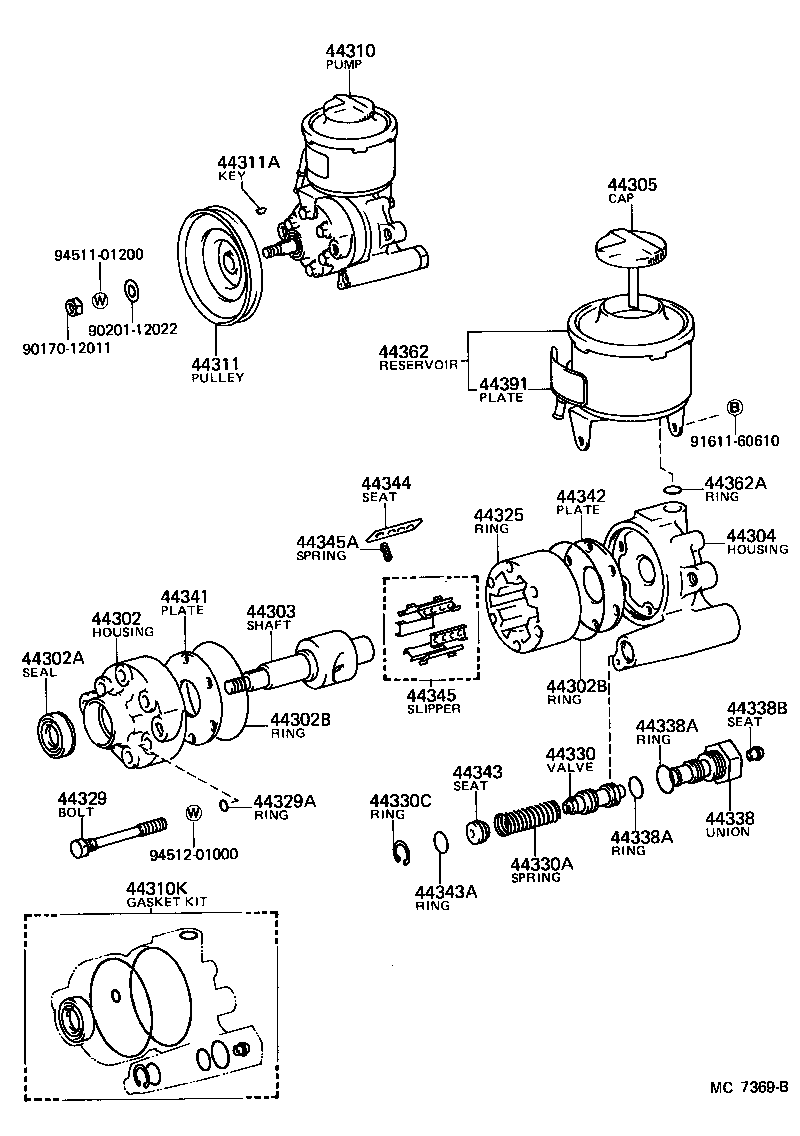

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30020 |
MX62 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90310-21034 |
MX62 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
MX62 |
2 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
MX62 |
2 | ||
| 44303 - SHAFT SUB-ASSY, W/ROTOR | ||||
| 44303-22021 |
MX62 L=39.9725-39.9750,MARK 2 |
1 | ||
| 44303-22011 |
MX62 L=39.9750-39.9775,NO MARK |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-30022 |
MX62 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
MX6# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-22090 |
MX62 |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-22010 |
MX62 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30030 |
MX62 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
MX6# |
1 | ||
| 44325 - RING, FIXED(FOR VANE PUMP) | ||||
| 44325-30040 |
MX62 MARK 2,MARK 2 |
1 | ||
| 44325-30030 |
MX62 MARK 1,NO,MARK |
1 | ||
| 44329 - BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET | ||||
| 44329-30020 |
MX62 L=78.5 |
1 | ||
| 44329-30010 |
MX62 L=76.5 |
5 | ||
| 44329A - RING, O(FOR VANE PUMP HOUSING SET BOLT) | ||||
| 96711-19007 |
MX62 |
6 | ||
| 96710-01007 |
MX62 |
6 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12010 |
MX62 MARK A,MARK A |
1 | ||
| 44330-12060 |
MX62 MARK F,MARK F |
1 | ||
| 44330-12030 |
MX62 MARK C,MARK C |
1 | ||
| 44330-12040 |
MX62 MARK D,MARK D |
1 | ||
| 44330-12050 |
MX62 MARK E,MARK E |
1 | ||
| 44330-12020 |
MX62 MARK B,MARK B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
MX6# |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
MX62 |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-14010 |
MX62 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
MX62 ID=14,OD=17,ID=14,OD=17 |
1 | ||
| 90301-23002 |
MX62 ID=22.7,OD=25.1 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
MX62 ID=14,OD=17,ID=14,OD=17 |
1 | ||
| 90301-23002 |
MX62 ID=22.7,OD=25.1 |
1 | ||
| 44338B - SEAT, UNION(FOR PRESSURE PORT UNION) | ||||
| 90410-06004 |
MX62 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30020 |
MX62 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-30020 |
MX62 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
MX62 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96710-01014 |
MX62 |
1 | ||
| 44344 - SEAT, SPRING(FOR VANE PUMP) | ||||
| 44344-30010 |
MX62 |
6 | ||
| 44345 - SLIPPER, VANE PUMP | ||||
| 44307-22010 |
MX62 NO MARK,L=39.942-39.937,RING NO.MARK |
1 | ||
| 44307-22020 |
MX62 NO MARK,L=39.937-39.932,RING MARK 2 |
1 | ||
| 44345A - SPRING, COMPRESSION(FOR VANE PUMP SLIPPER) | ||||
| 90501-06445 |
MX62 |
24 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44306-22090 |
MX62 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 96710-01013 |
MX62 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
MX6# |
1 | ||
| Common parts | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-60610 | ||||
| 94511-01200 | ||||
| 94512-01000 | ||||
