MX62L-XEPMEA (1980)
Toyota Cressida

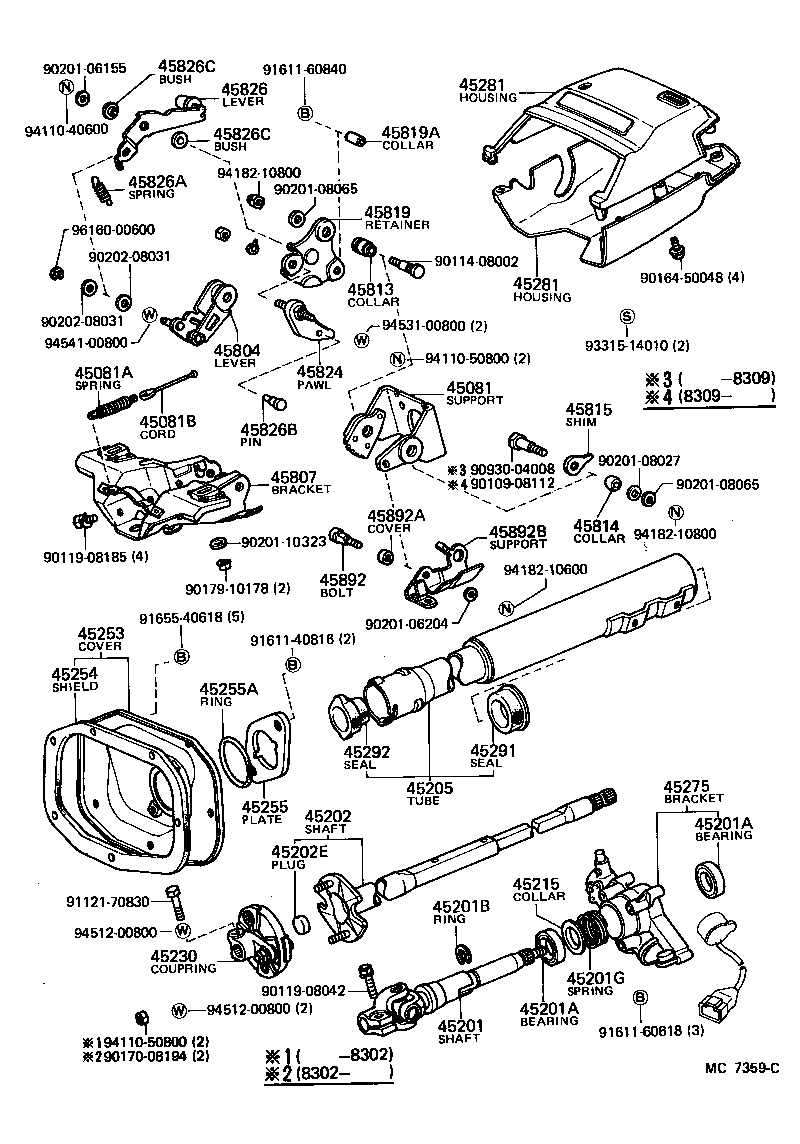

(8009- )USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-30010 |
MX6#..USA |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
MX6# |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
MX6# L=107.5 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
MX6# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
MX6# UPR |
1 | ||
| 90363-28001 |
MX6# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
MX6# UPR |
1 | ||
| 90363-28001 |
MX6# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
MX6# T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
MX6# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-22050 |
MX62 |
1 | ||
| 45202E - PLUG, PLATE(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90333-21008 |
MX6# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-20080 |
MX62 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
MX62 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
MX6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-22040 |
MX6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22031 |
MX6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
MX6# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
MX6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-22230 |
MX62..USA |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2226104 |
MX62..USA UPR,BLUE,BLUE |
1 | ||
| 45287-2218104 |
MX62..USA LWR,BLUE,BLUE |
1 | ||
| 45287-2224001 |
MX62..USA LWR,BLACK,BLACK |
1 | ||
| 45286-2226101 |
MX62..USA UPR,BLACK,BLACK |
1 | ||
| 45286-2233001 |
MX62..USA UPR,BLACK,BLACK |
1 | ||
| 45287-2218106 |
MX62..USA LWR,DARK BROWN,BROWN |
1 | ||
| 45287-2218101 |
MX62..USA LWR,BLACK,BLACK |
1 | ||
| 45287-2224004 |
MX62..USA LWR,BLUE,BLUE |
1 | ||
| 45286-2233004 |
MX62..USA UPR,BLUE,BLUE |
1 | ||
| 45286-2226106 |
MX62..USA UPR,DARK BROWN,BROWN |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2226104 |
MX62..USA UPR,BLUE,BLUE |
1 | ||
| 45287-2218104 |
MX62..USA LWR,BLUE,BLUE |
1 | ||
| 45287-2224001 |
MX62..USA LWR,BLACK,BLACK |
1 | ||
| 45286-2226101 |
MX62..USA UPR,BLACK,BLACK |
1 | ||
| 45286-2233001 |
MX62..USA UPR,BLACK,BLACK |
1 | ||
| 45287-2218106 |
MX62..USA LWR,DARK BROWN,BROWN |
1 | ||
| 45287-2218101 |
MX62..USA LWR,BLACK,BLACK |
1 | ||
| 45287-2224004 |
MX62..USA LWR,BLUE,BLUE |
1 | ||
| 45286-2233004 |
MX62..USA UPR,BLUE,BLUE |
1 | ||
| 45286-2226106 |
MX62..USA UPR,DARK BROWN,BROWN |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
MX6# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
MX6# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-30010 |
MX6#..USA |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-22050 |
MX6#..USA |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22030 |
MX6# OD=18.010-18.017,D=18.010-18.017 |
1 | ||
| 45813-22050 |
MX6# OD=17.989-17.996,D=17.989-17.996 |
1 | ||
| 45813-22020 |
MX6# OD=18.003-18.010,D=18.003-18.010 |
1 | ||
| 45813-22040 |
MX6# OD=18.017-18.024,D=18.017-18.024 |
1 | ||
| 45813-22010 |
MX6# OD=17.996-18.003,D=17.996-18.003 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
MX6# OD=17.982-18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
MX6# OD=18.000-18.018,D=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22070 |
MX6# T=0.5,T=0.5 |
2 | ||
| 45815-22100 |
MX6# T=1.8,T=1.8 |
2 | ||
| 45815-22090 |
MX6# T=1.4,T=1.4 |
2 | ||
| 45815-22060 |
MX6# T=0.2,T=0.2 |
2 | ||
| 45815-22080 |
MX6# T=0.8,T=0.8 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45809-30021 |
MX6#..USA |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
MX6# |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30020 |
MX6#..USA |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22020 |
MX6#..USA |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
MX6# |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
MX6# |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
MX6#..USA |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
MX6#..USA |
2 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
MX6# |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
MX6# |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22030 |
MX6#..USA |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90179-10178 | ||||
| 90201-06155 | ||||
| 90201-06204 | ||||
| 90201-08027 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90202-08031 | ||||
| 90930-04008 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91655-40618 | ||||
| 93315-14010 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 96160-00600 | ||||

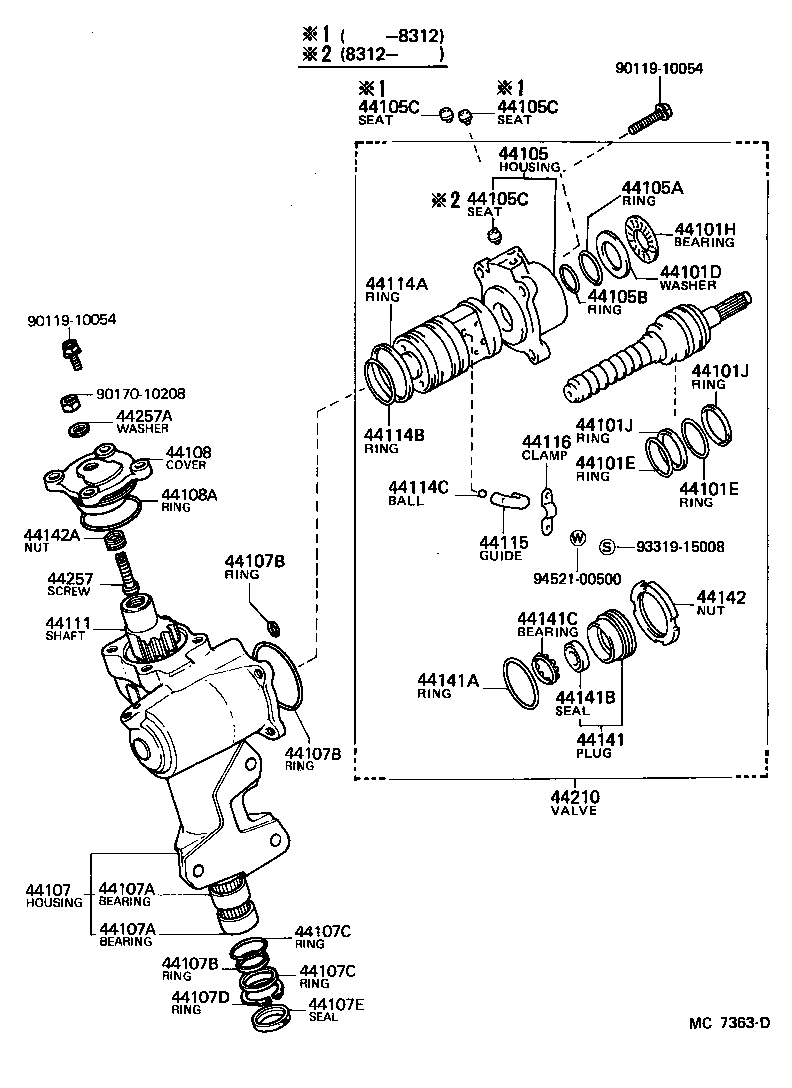

(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
MX6# |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
MX6# |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
MX6# |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
MX6# |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
MX6# |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
MX6# |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-22040 |
MX6# |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
MX6# |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
MX6# |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
MX6# |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
MX6# |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
MX6# |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-22040 |
MX6# |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
MX6# |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
MX6# |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
MX6# ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 96710-01010 |
MX62 OD=13,T=1.9 |
1 | ||
| 90301-32001 |
MX6# ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
MX6# ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 96710-01010 |
MX62 OD=13,T=1.9 |
1 | ||
| 90301-32001 |
MX6# ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
MX6# ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 96710-01010 |
MX62 OD=13,T=1.9 |
1 | ||
| 90301-32001 |
MX6# ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
MX6# ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
MX6# ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
MX6# ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
MX6# ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-41001 |
MX6# |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-30001 |
MX6# |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-22020 |
MX6# |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-58001 |
MX6# |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-22030 |
MX6# |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-58001 |
MX6# |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-53001 |
MX6# |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
MX6# |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-22020 |
MX6# |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-22020 |
MX6# |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
MX6# |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
MX6# |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
MX6# |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
MX6# |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
MX6# |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
MX6# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-22120 |
MX62 |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
MX6# |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
MX6# |
1 | ||
| Common parts | ||||
| 90119-10054 | ||||
| 90170-10208 | ||||
| 93319-15008 | ||||
| 94521-00500 | ||||

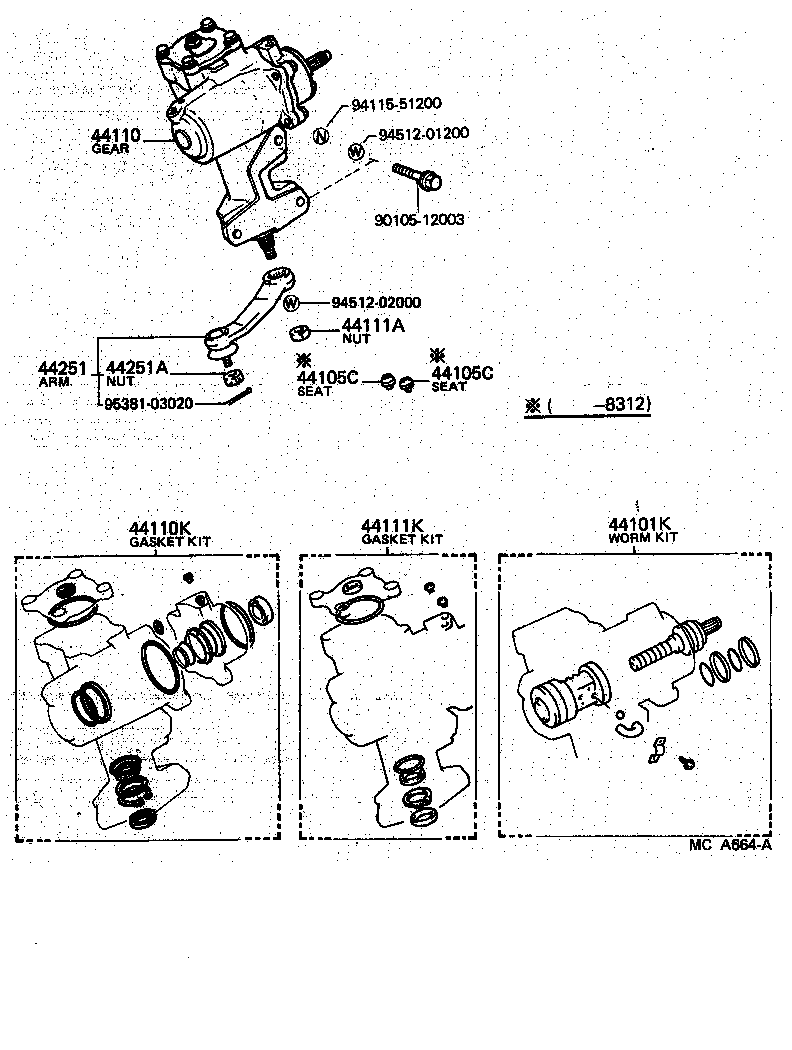

(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101K - WORM KIT, POWER STEERING | ||||
| 04044-22090 |
MX62 |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
MX6# |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
MX6# |
2 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-22130 |
MX62 |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-22050 |
MX6# |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
MX6# |
1 | ||
| 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL | ||||
| 04455-22010 |
MX6# |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-29175 |
MX6# |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
MX6# |
1 | ||
| Common parts | ||||
| 90105-12003 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94512-02000 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
