MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

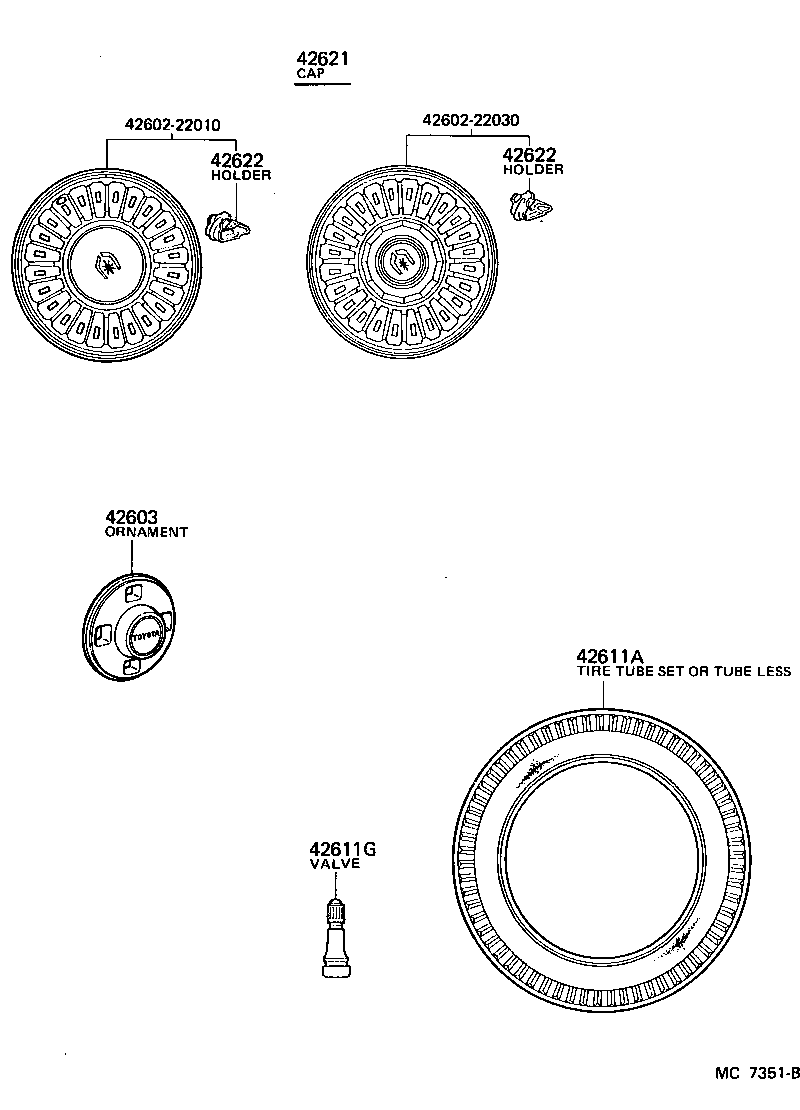

Click highlighted areas on diagram

diagram 4260222010 4260222030 42603 42611A 42611G 42621 42622 42622
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-22050

MX6#

 4
42611A - TIRE TUBE SET OR TUBELESS TIRE
42652-14270

MX62..SED

T135/70D15,SPARE TIRE

 1
42652-22260

MX62..SED

185/70SR14,WHITE

 4
42652-20110

MX62..SED

185/70SR14,BLACK

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

MX62

 4
42621 - CAP, WHEEL
42602-22010

MX62

 4
42622 - HOLDER, WHEEL CAP
42622-30050

MX6#

 32
42622 - HOLDER, WHEEL CAP
42622-30050

MX6#

 32
Common parts
42602-22010
42602-22030

(8009- )

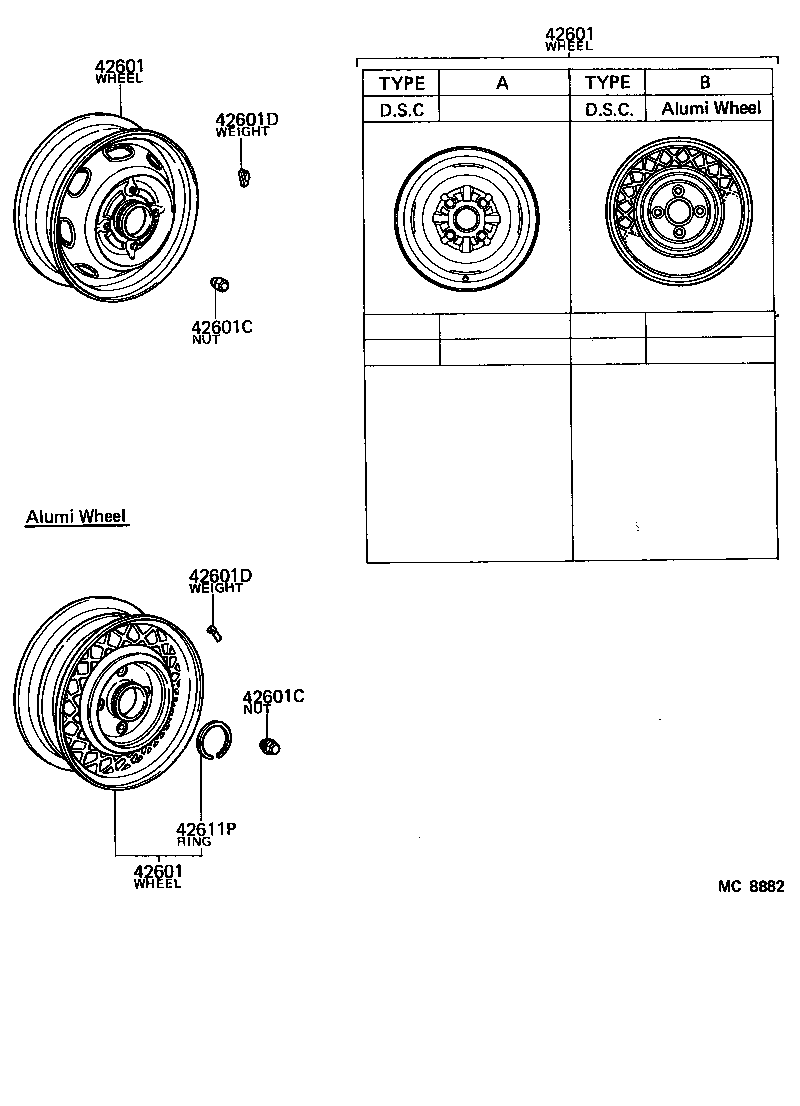

Click highlighted areas on diagram

diagram 42601 42601 42601 42601C 42601C 42601D 42601D 42611P
Part # Description Qty Price
42601 - WHEEL, DISC
42601-22010

MX62

5.5JJ-14,ALUMI WHEEL,TYPE B

 4
42611-14421

MX62..SED

4T-15,SPARE TIRE

 1
42611-14400

MX62

14X5.5J,5.5J-14,TYPE A

 4
42601 - WHEEL, DISC
42601-22010

MX62

5.5JJ-14,ALUMI WHEEL,TYPE B

 4
42611-14421

MX62..SED

4T-15,SPARE TIRE

 1
42611-14400

MX62

14X5.5J,5.5J-14,TYPE A

 4
42601 - WHEEL, DISC
42601-22010

MX62

5.5JJ-14,ALUMI WHEEL,TYPE B

 4
42611-14421

MX62..SED

4T-15,SPARE TIRE

 1
42611-14400

MX62

14X5.5J,5.5J-14,TYPE A

 4
42601C - NUT, HUB (FOR AXLE)
90942-01007

MX6#

 16
90942-01026

MX6#

ALUMI WHEEL

 16
42601C - NUT, HUB (FOR AXLE)
90942-01007

MX6#

 16
90942-01026

MX6#

ALUMI WHEEL

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03020

MX6#

30G,T=10,30G

 1
90942-03027

MX6#

60G,T=9.5,60G

 1
90942-03022

MX6#

40G,T=9.5,40G

 1
90942-03029

MX6#

70G,T=9.5,70G

 1
90942-03095

MX6#

40G,40G,ALUMI WHEEL

 1
90942-03031

MX6#

80G,T=9.5,80G

 1
90942-03092

MX6#

10G,10G,ALUMI WHEEL

 1
90942-03025

MX6#

50G,T=9.5,50G

 1
90942-03093

MX6#

20G,20G,ALUMI WHEEL

 1
90942-03094

MX6#

30G,30G,ALUMI WHEEL

 1
90942-03017

MX6#

20G,T=8,20G

 1
90942-03096

MX6#

50G,50G,ALUMI WHEEL

 1
90942-03041

MX6#

10G,T=7.5,10G

 1
90942-03097

MX6#

60G,60G,ALUMI WHEEL

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03020

MX6#

30G,T=10,30G

 1
90942-03027

MX6#

60G,T=9.5,60G

 1
90942-03022

MX6#

40G,T=9.5,40G

 1
90942-03029

MX6#

70G,T=9.5,70G

 1
90942-03095

MX6#

40G,40G,ALUMI WHEEL

 1
90942-03031

MX6#

80G,T=9.5,80G

 1
90942-03092

MX6#

10G,10G,ALUMI WHEEL

 1
90942-03025

MX6#

50G,T=9.5,50G

 1
90942-03093

MX6#

20G,20G,ALUMI WHEEL

 1
90942-03094

MX6#

30G,30G,ALUMI WHEEL

 1
90942-03017

MX6#

20G,T=8,20G

 1
90942-03096

MX6#

50G,50G,ALUMI WHEEL

 1
90942-03041

MX6#

10G,T=7.5,10G

 1
90942-03097

MX6#

60G,60G,ALUMI WHEEL

 1
42611P - RING, SET
90522-64001

MX6#

 4
