MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )ATM

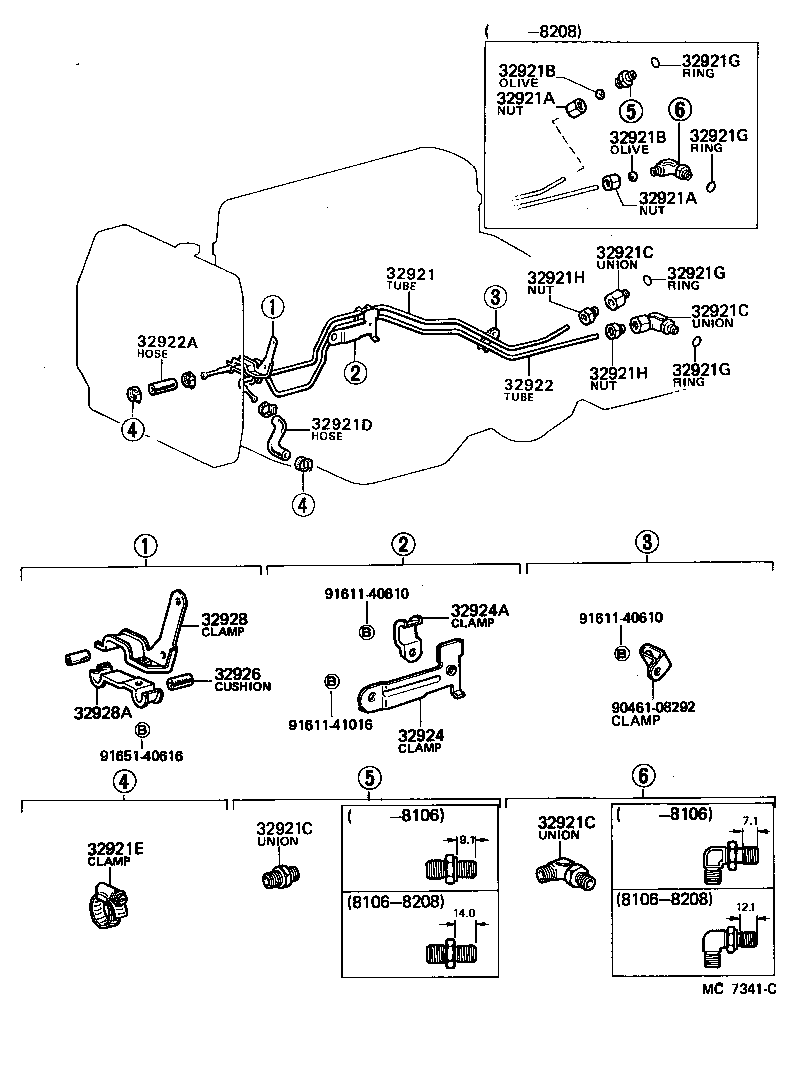

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-22180 |
MX62 |
1 | ||
| 32921A - NUT, UNION(FOR OIL COOLER TUBE) | ||||
| 90402-13041 |
MX62 |
2 | ||
| 32921A - NUT, UNION(FOR OIL COOLER TUBE) | ||||
| 90402-13041 |
MX62 |
2 | ||
| 32921B - OLIVE(FOR OIL COOLER TUBE) | ||||
| 96395-71400 |
MX62 |
2 | ||
| 32921B - OLIVE(FOR OIL COOLER TUBE) | ||||
| 96395-71400 |
MX62 |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13003 |
MX62 FR |
1 | ||
| 90407-13005 |
MX62 RR |
1 | ||
| 90407-13002 |
MX62 RR |
1 | ||
| 90404-13265 |
MX62 FR |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13003 |
MX62 FR |
1 | ||
| 90407-13005 |
MX62 RR |
1 | ||
| 90407-13002 |
MX62 RR |
1 | ||
| 90404-13265 |
MX62 FR |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13003 |
MX62 FR |
1 | ||
| 90407-13005 |
MX62 RR |
1 | ||
| 90407-13002 |
MX62 RR |
1 | ||
| 90404-13265 |
MX62 FR |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13003 |
MX62 FR |
1 | ||
| 90407-13005 |
MX62 RR |
1 | ||
| 90407-13002 |
MX62 RR |
1 | ||
| 90404-13265 |
MX62 FR |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-14259 |
MX6#..ATM |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-14085 |
MX6#..ATM |
4 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MX6#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MX6#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MX6#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MX6#..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-22220 |
MX62 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-14407 |
MX62 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-22040 |
MX6#..ATM |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-30060 |
MX6#..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
MX62 L=25,ID=8 |
2 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 15781-41010 |
MX6#..ATM |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-10019 |
MX6#..ATM |
1 | ||
| Common parts | ||||
| 90461-08292 | ||||
| 91611-40610 | ||||
| 91611-41016 | ||||
| 91651-40616 | ||||
