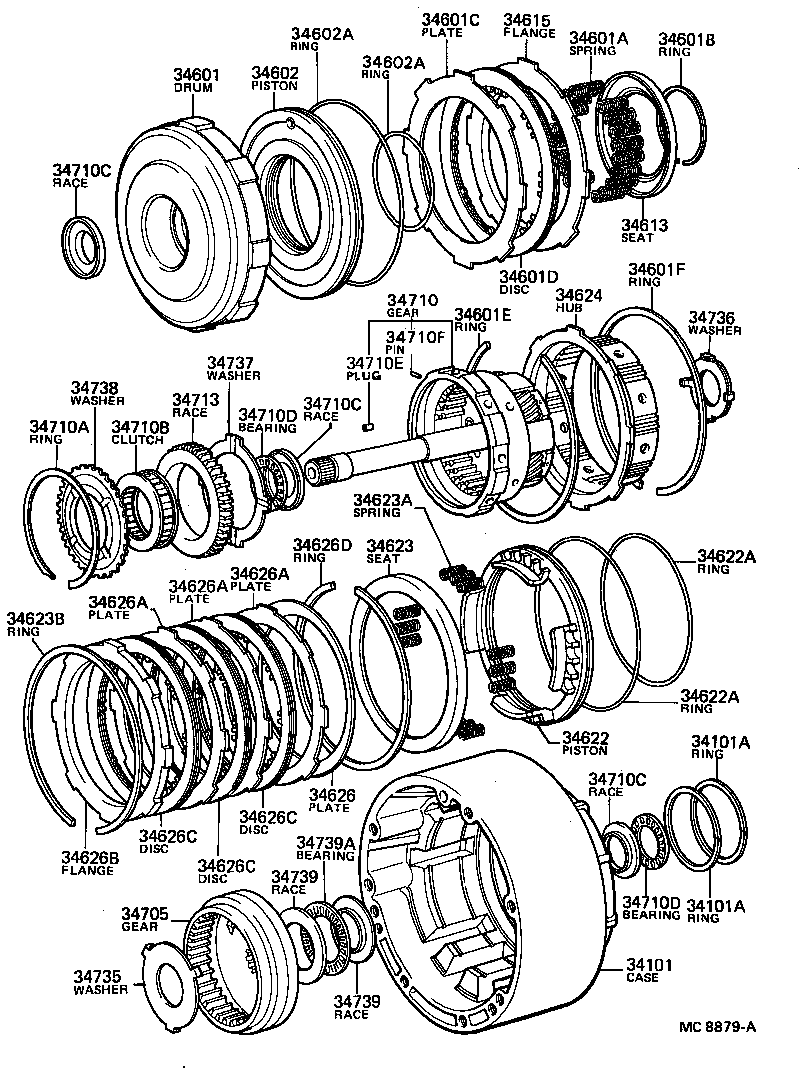

MX62L-XEPMEA (1980)
Toyota Cressida
(8009- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-30060 |
MX62 |
1 | ||
| 34101A - RING, OIL SEAL (FOR OVERDRIVE CASE) | ||||
| 35617-22020 |
MX62 |
2 | ||
| 34101A - RING, OIL SEAL (FOR OVERDRIVE CASE) | ||||
| 35617-22020 |
MX62 |
2 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30021 |
MX62 |
1 | ||
| 34601A - SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90501-11007 |
MX6#..ATM |
18 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
MX6#..ATM |
1 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30070 |
MX6#..ATM |
1 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-22020 |
MX6#..ATM |
1 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
MX6#..ATM |
1 | ||
| 34601F - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE) | ||||
| 90521-99001 |
MX6#..ATM |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30010 |
MX62 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
MX6#..ATM ID=56 |
1 | ||
| 90301-99192 |
MX62 ID=122 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
MX6#..ATM ID=56 |
1 | ||
| 90301-99192 |
MX62 ID=122 |
1 | ||
| 34613 - SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING | ||||
| 34613-30010 |
MX6#..ATM |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 34615-30010 |
MX6#..ATM T=4.0 |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30020 |
MX6#..ATM |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99008 |
MX6#..ATM ID=108.5-109.9,INSIDE |
1 | ||
| 90301-99009 |
MX6#..ATM ID=123.2-125.2,OUTSIDE |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99008 |
MX6#..ATM ID=108.5-109.9,INSIDE |
1 | ||
| 90301-99009 |
MX6#..ATM ID=123.2-125.2,OUTSIDE |
1 | ||
| 34623 - SEAT, OVERDRIVE BRAKE RETURN SPRING | ||||
| 34623-30020 |
MX6#..ATM |
1 | ||
| 34623A - SPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING | ||||
| 90501-10671 |
MX6#..ATM |
12 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
MX6#..ATM |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-30020 |
MX6#..ATM |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30050 |
MX6#..ATM |
1 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
MX6#..ATM T=2.0 |
3 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
MX6#..ATM T=2.0 |
3 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
MX6#..ATM T=2.0 |
3 | ||
| 34626B - FLANGE, REAR CLUTCH (FOR OVERDRIVE) | ||||
| 34625-30020 |
MX6#..ATM T=2.5 |
1 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30010 |
MX6#..ATM |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30010 |
MX6#..ATM |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30010 |
MX6#..ATM |
3 | ||
| 34626D - RING, HOLE SNAP (FOR OVERDRIVE) | ||||
| 90521-99004 |
MX6#..ATM |
1 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30020 |
MX6#..ATM |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-30021 |
MX62 |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-99003 |
MX6#..ATM |
1 | ||
| 34710B - CLUTCH, 1WAY, NO.1(FOR OVERDRIVE) | ||||
| 35791-30030 |
MX6#..ATM |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-22010 |
MX6#..ATM RR |
1 | ||
| 34739-30040 |
MX62 FR |
1 | ||
| 34739-30031 |
MX6#..ATM CTR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-22010 |
MX6#..ATM RR |
1 | ||
| 34739-30040 |
MX62 FR |
1 | ||
| 34739-30031 |
MX6#..ATM CTR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-22010 |
MX6#..ATM RR |
1 | ||
| 34739-30040 |
MX62 FR |
1 | ||
| 34739-30031 |
MX6#..ATM CTR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24001 |
MX6#..ATM CTR |
2 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24001 |
MX6#..ATM CTR |
2 | ||
| 34710E - PLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
MX6#..ATM |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
MX6#..ATM |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34735-30010 |
MX6#..ATM |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34736-30010 |
MX6#..ATM |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30020 |
MX6#..ATM |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-30020 |
MX6#..ATM |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 35789-22030 |
MX6#..ATM RR |
1 | ||
| 34739-30020 |
MX6#..ATM FR |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 35789-22030 |
MX6#..ATM RR |
1 | ||
| 34739-30020 |
MX6#..ATM FR |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
MX6#..ATM |
1 | ||
