MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )ATM

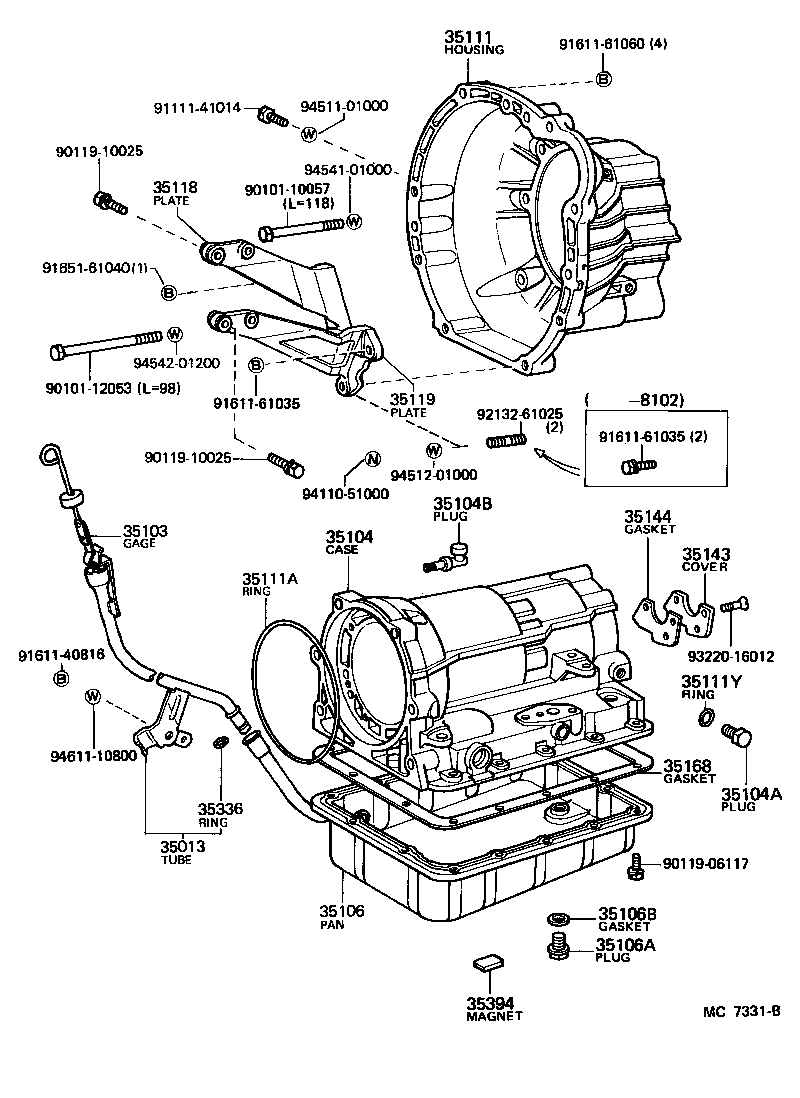

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111A 35111Y 35118 35119 35143 35144 35168 35336 35394 9010110057 9010112053 9011906117 9011910025 9011910025 9111141014 9161140816 9161161035 9161161035 9161161060 9165161040 9213261025 9322016012 9411051000 9451101000 9451201000 9454101000 9454201200 9461110800
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-30100

MX6#..ATM

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30120

MX6#..ATM

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26011

MX62

 1
35104-26010

MX62

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08079

MX62

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

MX6#..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30060

MX6#..ATM

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10003

MX6#..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

MX6#..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-30100

MX62

 1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99006

MX6#..ATM

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

MX6#..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-22040

MX6#..ATM

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-22030

MX6#..ATM

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

MX6#..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

MX6#..ATM

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

MX6#..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

MX6#..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

MX6#..ATM

 2
Common parts
90101-10057
90101-12053
90119-06117
90119-10025
91111-41014
91611-40816
91611-61035
91611-61060
91651-61040
92132-61025
93220-16012
94110-51000
94511-01000
94512-01000
94541-01000
94542-01200
94611-10800
