MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )ATM

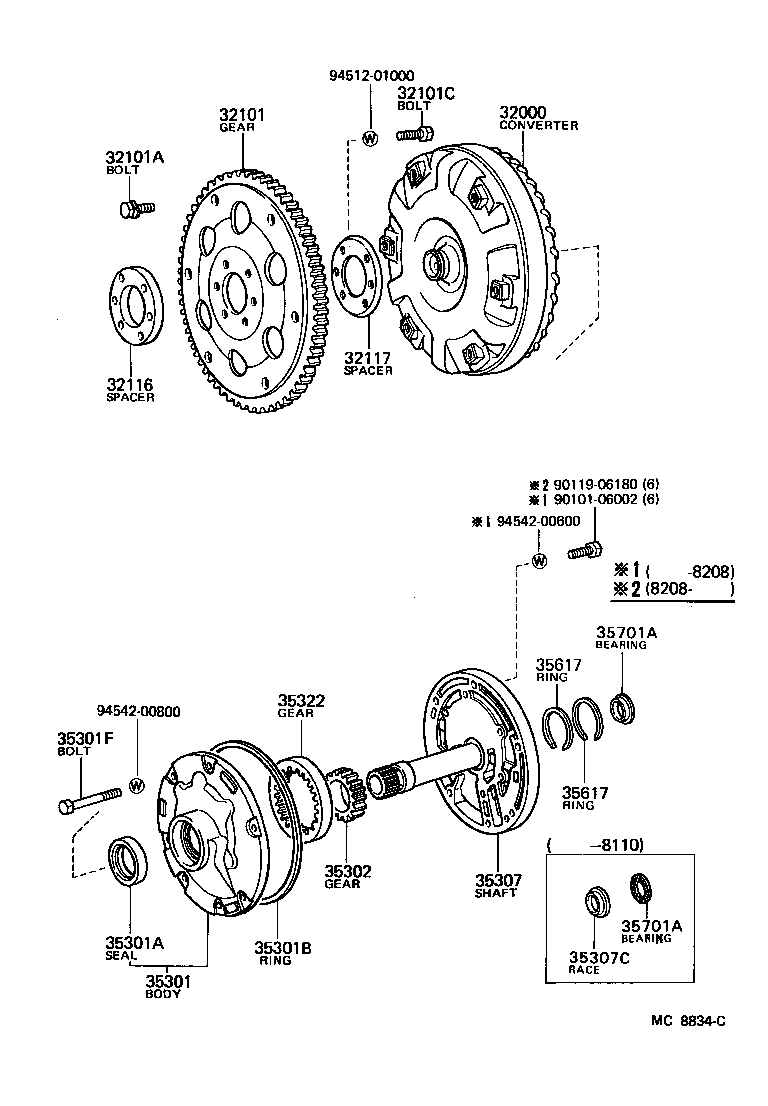

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35302 35307 35307C 35322 35617 35617 35701A 35701A 9010106002 9011906180 9451201000 9454200600 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-22040

MX62

 1
32000-30100

MX62

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-30040

MX6#..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
91611-60812

MX62

*8-1.25PX12-7

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90109-10037

MX6#..ATM

*10-1.25PX18-12

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-30011

MX6#..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-30011

MX6#..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30030

MX62

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38129

MX6#..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

MX6#..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90101-08042

MX6#..ATM

 1
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-22010

MX62

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-30021

MX62

 1
35370-30022

MX62

 1
35370-30020

MX62

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-22010

MX62

T=4.3

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

MX62

T=15.286-15.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

MX62

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

MX62

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-24001

MX62

 1
90374-23012

MX62

 1
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-24001

MX62

 1
90374-23012

MX62

 1
Common parts
90101-06002
90119-06180
94512-01000
94542-00600
94542-00800
