MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

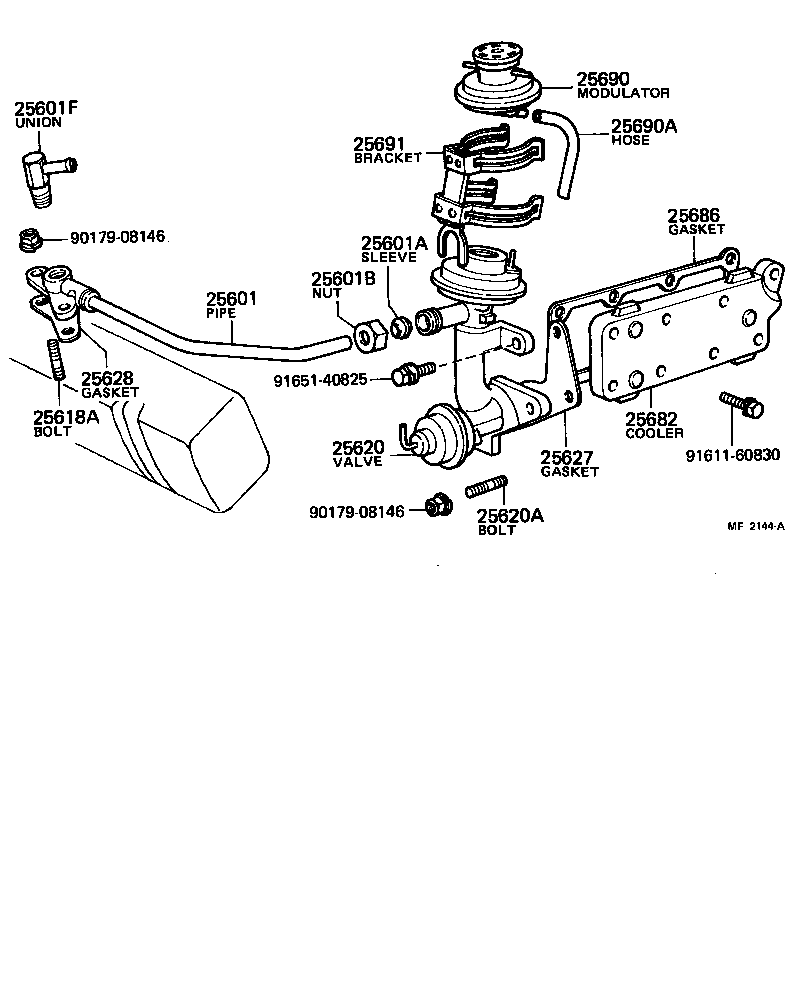

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25601F 25618A 25620 25620A 25627 25628 25682 25686 25690 25690A 25691 9017908146 9017908146 9161160830 9165140825
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-45010

5ME..MX62

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-14001

5ME..MX62

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22076

5ME..MX62

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90404-53027

5ME..MX62

 1
25618A - BOLT, STUD(FOR EGR INLET)
90116-08025

5ME..MX62

 2
25620 - VALVE ASSY, EGR
25620-43020

5ME..MX62

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08025

5M#..MX6#

 2
25627 - GASKET, EGR VALVE
25627-45020

5ME..MX62

 1
25628 - GASKET, EGR INLET
25628-45020

5ME..MX62

 1
25682 - COOLER, EGR, NO.2
25682-45020

5ME..MX62

 1
25686 - GASKET, EGR COOLER, NO.2
25686-45010

5ME..MX62

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-45020

5ME..MX62

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11017

5ME..MX62

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-45020

5ME..MX62

 1
Common parts
90179-08146
91611-60830
91651-40825
