MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8308)

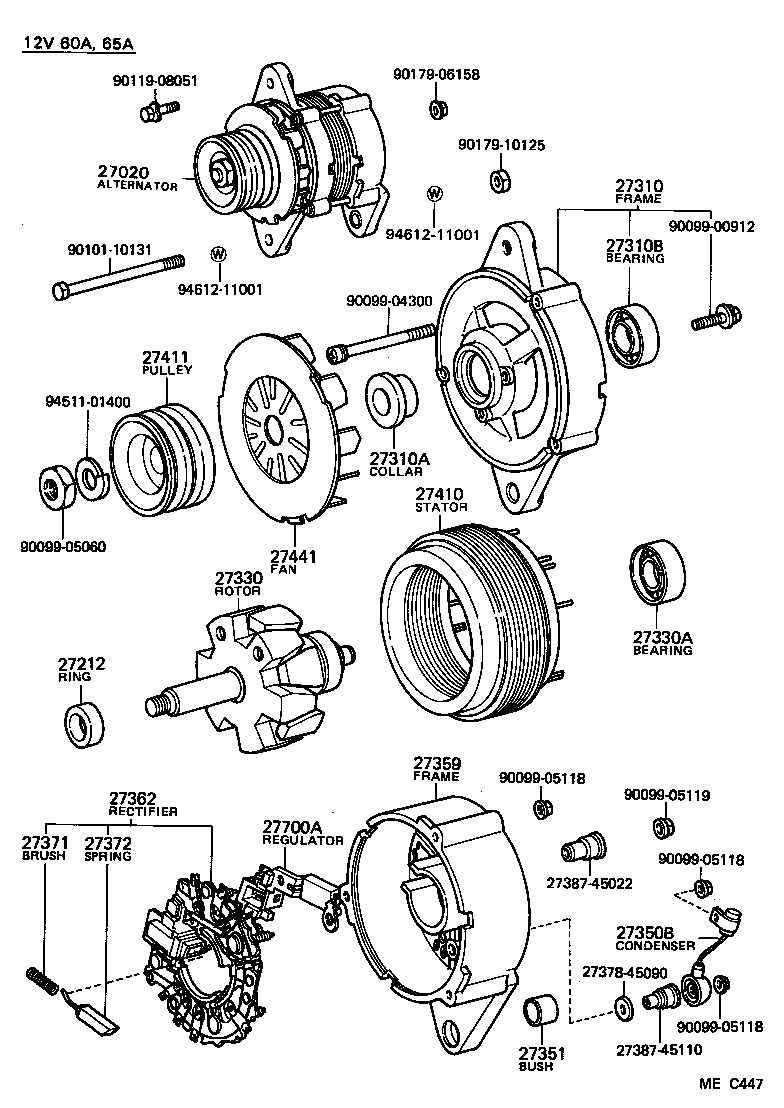

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110131 9011908051 9017906158 9017910125 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-43020

5ME..MX62..USA

12V 60A

 1
27060-43030

5M#..MX6#

12V 65A,12V 65A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

5M#..MX6#

12V 60A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-61070

5ME..MX62..USA

12V 60A

 1
27310-43040

5M#..MX6#

12V 65A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

5M#..MX6#

12V 60A,65A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

5M#..MX6#

12V 60A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-43040

5M#..MX6#

12V 65A

 1
27330-15070

5ME..MX62..USA

12V 60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

5M#..MX6#

12V 60A,65A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

5M#..MX6#

12V 60A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

5M#..MX6#

12V 60A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-43020

5M#..MX6#

12V 60A,65A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-43040

5M#..MX6#

12V 60A,65A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

5M#..MX6#

12V 60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5M#..MX6#

12V 60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-43040

5M#..MX6#

12V 65A

 1
27410-45120

5ME..MX62..USA

12V 60A

 1
27411 - PULLEY, ALTERNATOR
27411-41071

5M#..MX6#

12V 60A,65A

 1
27441 - FAN, ALTERNATOR
27441-44050

5M#..MX6#

12V 65A

 1
27441-45110

5ME..MX62..USA

12V 60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-43010

5M#..MX6#

12V 60A,65A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10131
90119-08051
90179-06158
90179-10125
94511-01400
94612-11001
