MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)

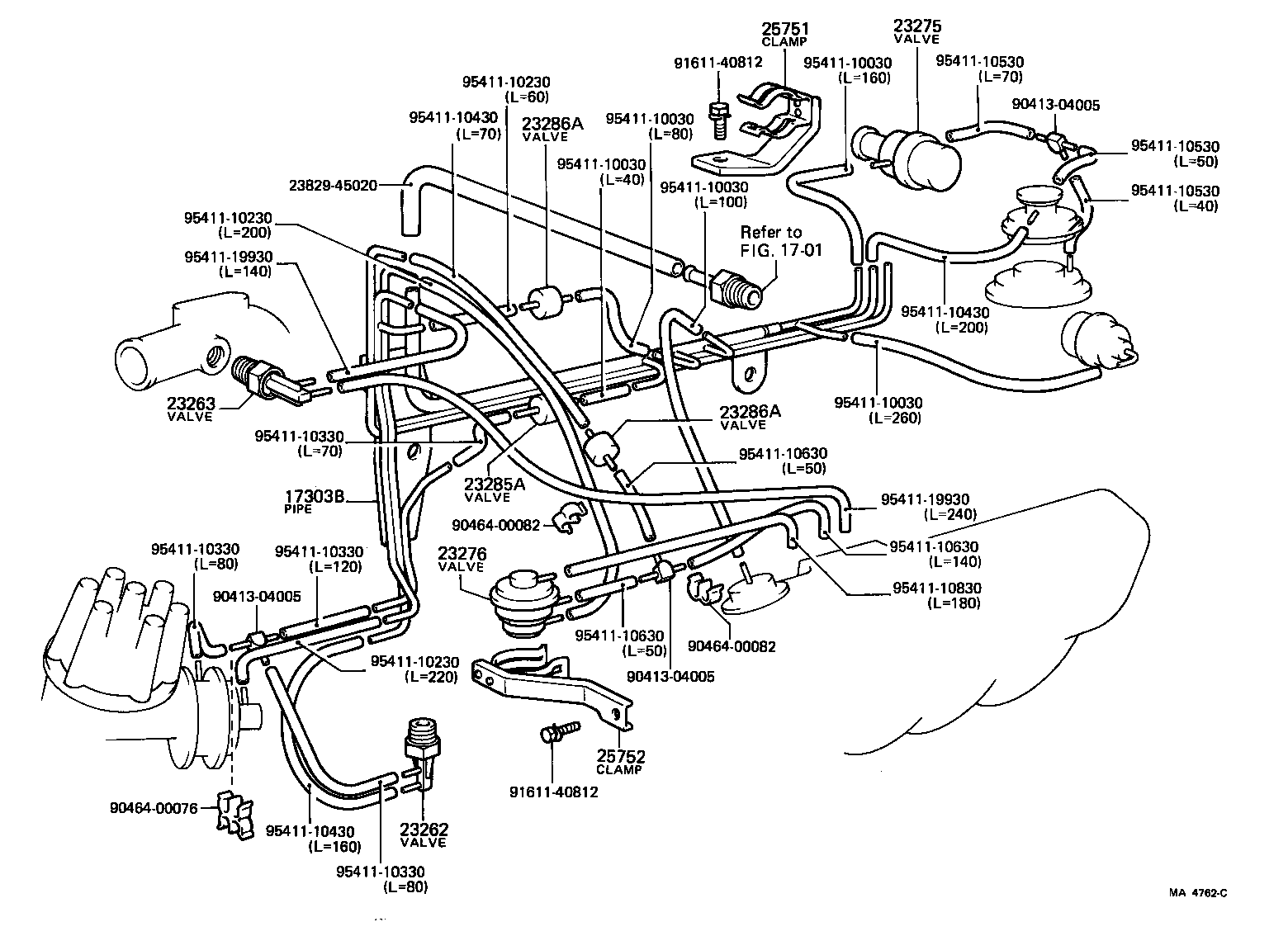

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-43010 |
5ME..MX62 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05058 |
5ME..MX62 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05047 |
5M#..MX6# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03128 |
5ME..MX62 |
1 | ||
| 90925-03105 |
5ME..MX62 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03089 |
5ME..MX62 |
1 | ||
| 90925-03141 |
5ME..MX62 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10038 |
5ME..MX62 |
1 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10049 |
5ME..MX62 |
2 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10049 |
5ME..MX62 |
2 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-43020 |
5ME..MX62 |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25752-41040 |
5ME..MX62 |
1 | ||
| Common parts | ||||
| 23829-45020 | ||||
| 90413-04005 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 91611-40812 | ||||
| 95411-10030 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
