MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)

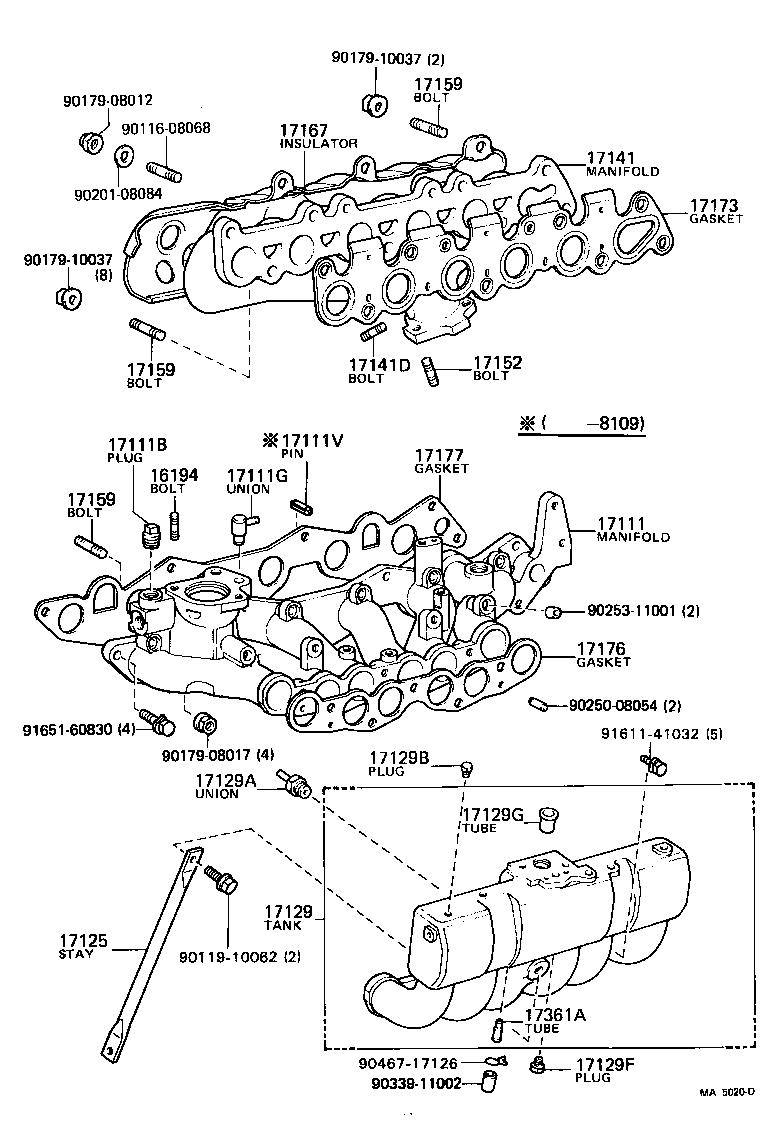

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16194 - BOLT, STUD(FOR WATER OUTLET SETTING) | ||||
| 90116-08025 |
5ME..MX62 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-45080 |
5ME..MX62 |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53030 |
5ME..MX62 |
1 | ||
| 17111G - UNION(FOR INTAKE MANIFOLD WATER) | ||||
| 90407-52005 |
5ME..MX62 |
1 | ||
| 17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING) | ||||
| 90254-08001 |
5ME..MX62 |
2 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-41020 |
5ME..MX62 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-41050 |
5ME..MX62 |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-53029 |
5ME..MX62 |
1 | ||
| 17129B - PLUG | ||||
| 90072-34107 |
5ME..MX62 |
1 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90072-34107 |
5ME..MX62 |
1 | ||
| 17129G - TUBE, EGR INLET | ||||
| 25619-45010 |
5ME..MX62 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-45040 |
5ME..MX62 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08045 |
5ME..MX62 L=28,S=8&14 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10017 |
5ME..MX62 L=41,S=14&20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10025 |
5ME..MX62 EXHAUST UPR,L=57,S=15&31 |
7 | ||
| 90116-10024 |
5ME..MX62 EXHAUST LWR,L=53,S=15&29 |
3 | ||
| 90116-08020 |
5ME..MX62 INTAKE,L=44,S=12&8 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10025 |
5ME..MX62 EXHAUST UPR,L=57,S=15&31 |
7 | ||
| 90116-10024 |
5ME..MX62 EXHAUST LWR,L=53,S=15&29 |
3 | ||
| 90116-08020 |
5ME..MX62 INTAKE,L=44,S=12&8 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10025 |
5ME..MX62 EXHAUST UPR,L=57,S=15&31 |
7 | ||
| 90116-10024 |
5ME..MX62 EXHAUST LWR,L=53,S=15&29 |
3 | ||
| 90116-08020 |
5ME..MX62 INTAKE,L=44,S=12&8 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-45010 |
5ME..MX62 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-45030 |
5ME..MX62 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-41030 |
5ME..MX62 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-41030 |
5ME..MX62 |
1 | ||
| 17177-41040 |
5ME..MX62 |
1 | ||
| 17361A - TUBE, AIR(FOR EFI) | ||||
| 17361-41010 |
5ME..MX62 |
1 | ||
| Common parts | ||||
| 90116-08068 | ||||
| 90119-10062 | ||||
| 90179-08012 | ||||
| 90179-08017 | ||||
| 90179-10037 | ||||
| 90201-08084 | ||||
| 90250-08054 | ||||
| 90253-11001 | ||||
| 90339-11002 | ||||
| 90467-17126 | ||||
| 91611-41032 | ||||
| 91651-60830 | ||||
