MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

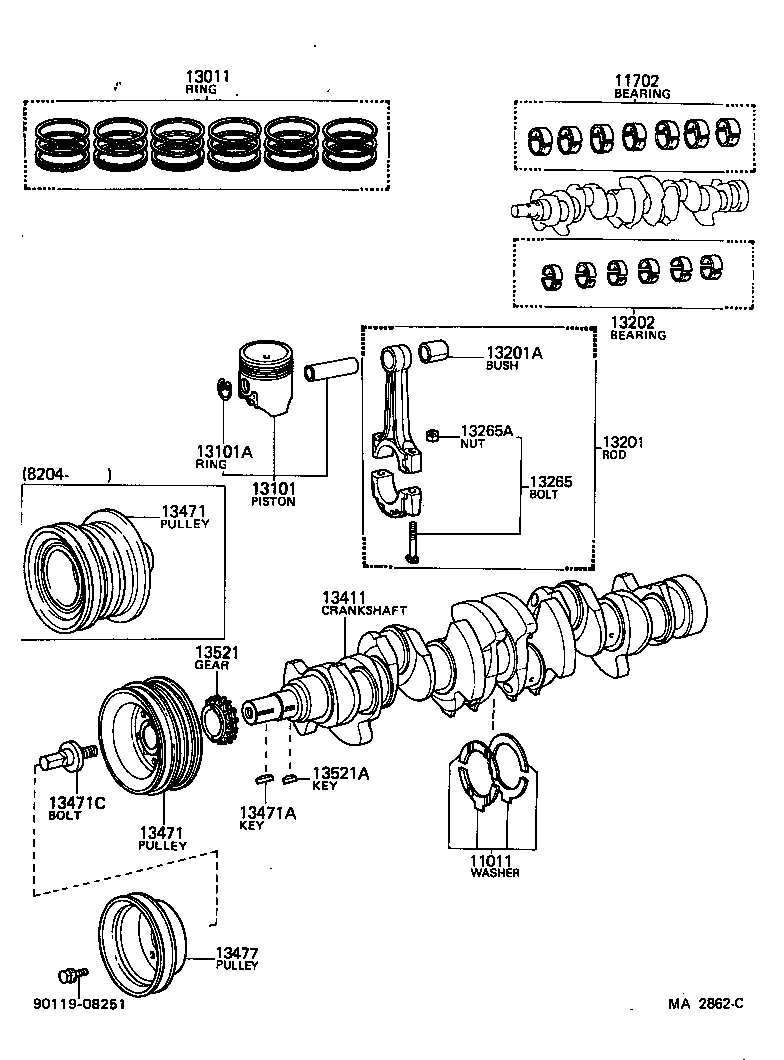

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13411 13471 13471 13471A 13471C 13477 13521 13521A 9011908251
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11013-43010

5M#..MX6#

O/S 0.250,O/S 0.250

 1
11011-43010

5M#..MX6#

STD,STD

 1
11012-43010

5M#..MX6#

O/S 0.125,O/S 0.125

 1
11702 - BEARING SET, CRANKSHAFT
11702-45011

5M#..MX6#

STD,STD

 1
11705-45011

5M#..MX6#

U/S 0.50,U/S 0.50

 1
11703-45011

5M#..MX6#

U/S 0.05,U/S 0.05

 1
11704-45011

5M#..MX6#

U/S 0.25,U/S 0.25

 1
13011 - RING SET, PISTON
13013-43020

5ME..MX62

O/S 0.50,O/S 0.50

 1
13011-43010

5ME..MX62

STD,STD

 1
13015-43020

5ME..MX62

O/S 1.00,O/S 1.00

 1
13014-43020

5ME..MX62

O/S 0.75,O/S 0.75

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-43010

5ME..MX62

STD,STD

 6
13104-43030

5ME..MX62

O/S 0.75,O/S 0.75

 6
13103-43030

5ME..MX62

O/S 0.50,O/S 0.50

 6
13105-43030

5ME..MX62

O/S 1.00,O/S 1.00

 6
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25052

5M#..MX6#

 12
13201 - ROD SUB-ASSY, CONNECTING
13201-45010

5M#..MX6#

 6
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73066

5M#..MX6#

 6
13202 - BEARING SET, CONNECTING ROD
13202-45011

5M#..MX6#

STD,STD

 1
13205-45011

5M#..MX6#

U/S 0.50,U/S 0.50

 1
13203-45011

5M#..MX6#

U/S 0.05,U/S 0.05

 1
13204-45011

5M#..MX6#

U/S 0.25,U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-49025

5M#..MX6#

 12
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

5M#..MX6#

 12
13411 - CRANKSHAFT
13411-45012

5M#..MX6#

 1
13471 - PULLEY, CRANKSHAFT
13407-41021

5ME..MX62

 1
13471 - PULLEY, CRANKSHAFT
13407-41021

5ME..MX62

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05001

5M#..MX6#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16002

5ME..MX62

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-22052

5ME..MX62

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-41011

5ME..MX62

N=20

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

5M#..MX6#

 1
Common parts
90119-08251
