MX62L-XEPMEA (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
5ME
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

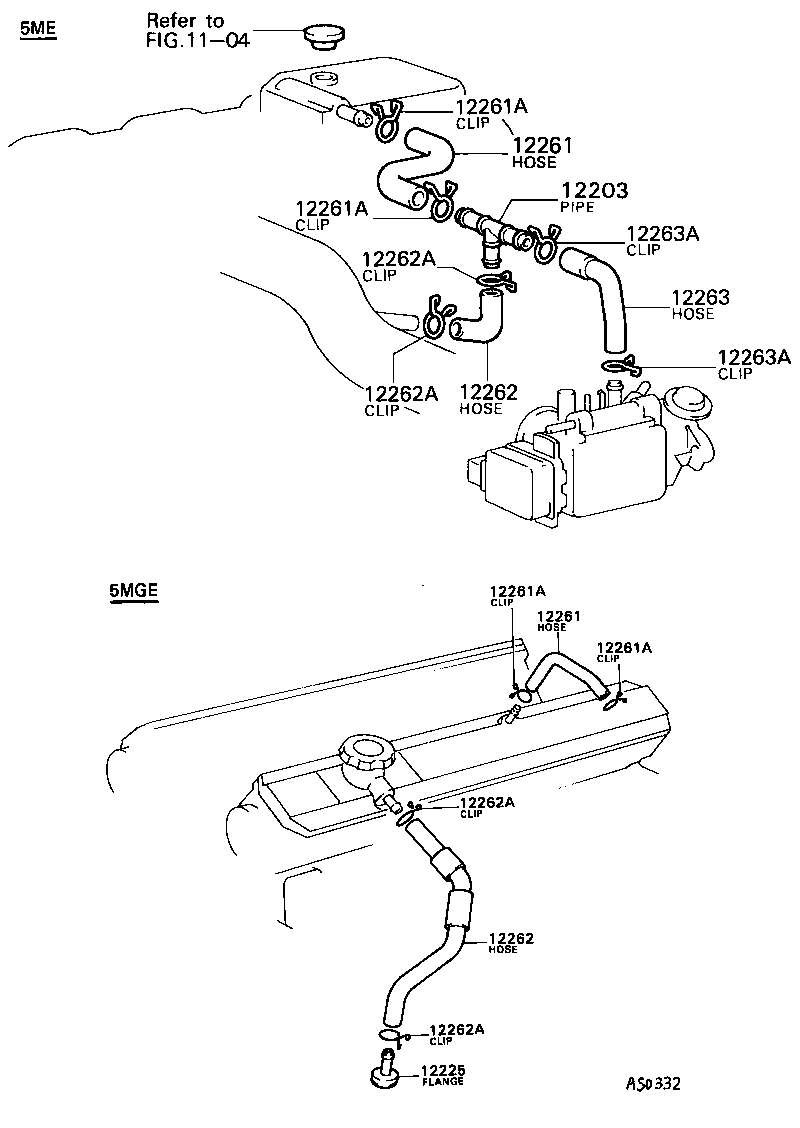

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12203 - PIPE SUB-ASSY, VENTILATION | ||||
| 90413-14008 |
5ME..MX62 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-41080 |
5ME..MX62 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-41080 |
5ME..MX62 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-20002 |
5ME..MX62 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-20002 |
5ME..MX62 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-20002 |
5ME..MX62 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-20002 |
5ME..MX62 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-41070 |
5ME..MX62 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-41070 |
5ME..MX62 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-20002 |
5M#..MX6# |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-20002 |
5M#..MX6# |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-20002 |
5M#..MX6# |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-20002 |
5M#..MX6# |
2 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12263-41030 |
5ME..MX62 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-19122 |
5ME..MX62 VENTILATION PIPE SIDE |
1 | ||
| 90467-16035 |
5ME..MX62 THROTTLE BODY SIDE |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-19122 |
5ME..MX62 VENTILATION PIPE SIDE |
1 | ||
| 90467-16035 |
5ME..MX62 THROTTLE BODY SIDE |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
