MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

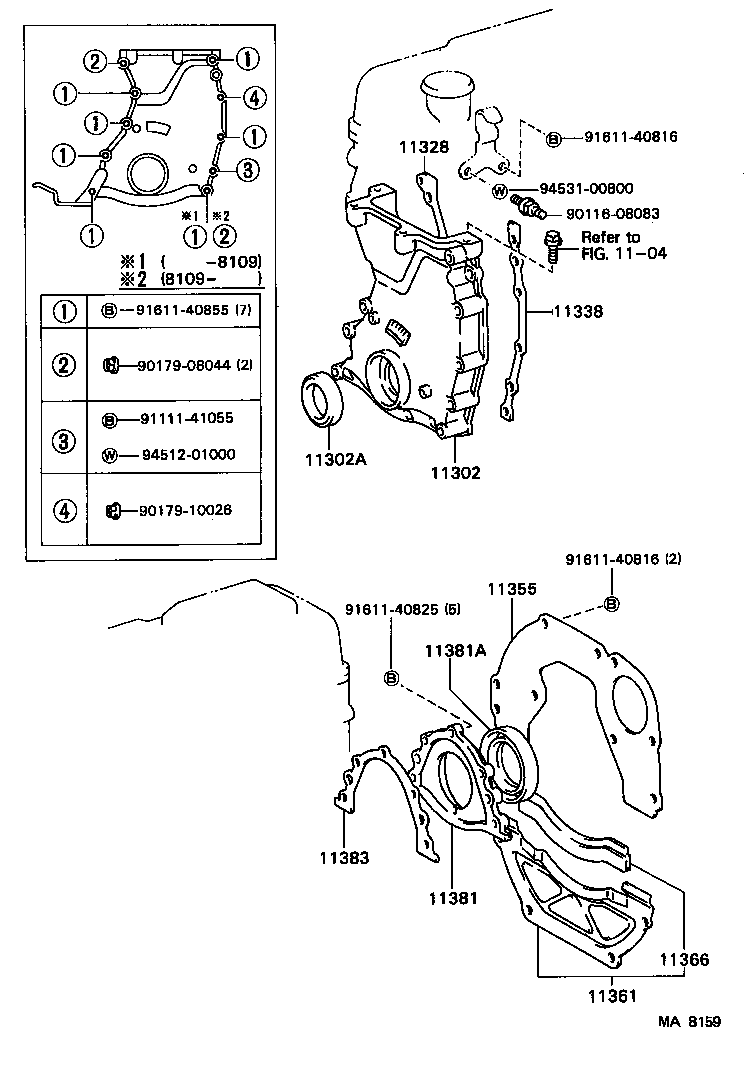

Click highlighted areas on diagram

diagram 1104 11302 11302A 11328 11338 11355 11361 11366 11381 11381A 11383 9011608083 9017908044 9017910026 9111141055 9161140816 9161140816 9161140825 9161140855 9451201000 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-41020

5ME..MX62

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

5ME..MX62

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-41010

5ME..MX62

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-41010

5ME..MX62

 1
11355 - PLATE, REAR END
11355-41010

5M#..MX6#

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-45010

5M#..MX6#

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
31131-30010

5M#..MX6#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41011

5M#..MX6#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

5M#..MX6#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

5M#..MX6#

 1
Common parts
90116-08083
90179-08044
90179-10026
91111-41055
91611-40816
91611-40825
91611-40855
94512-01000
94531-00800
Linked diagrams
1104
