MX62L-XEPMEA (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

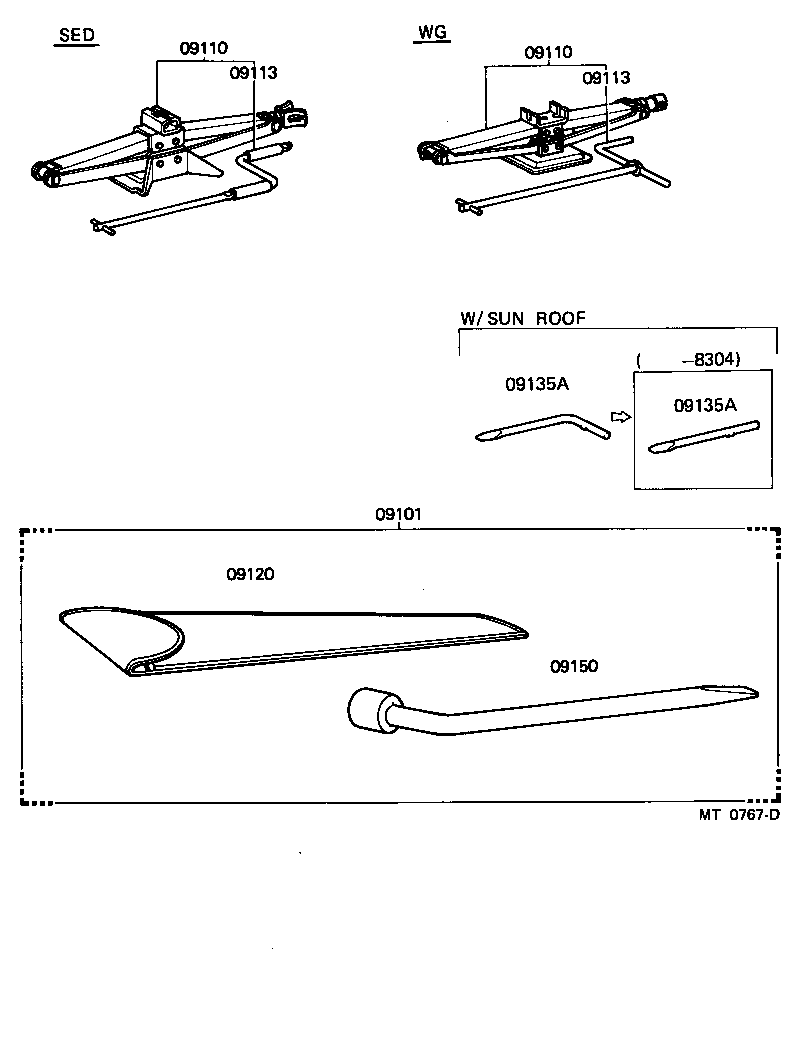

Click highlighted areas on diagram

diagram 09101 09110 09110 09113 09113 09120 09135A 09135A 09150
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-14070

MX6#

 1
09110 - JACK ASSY
09110-22020

MX6#..SED

 1
09110 - JACK ASSY
09110-22020

MX6#..SED

 1
09113 - HANDLE, JACK
09113-22010

MX6#..SED

 1
09113 - HANDLE, JACK
09113-22010

MX6#..SED

 1
09120 - BAG, TOOL
09120-12030

MX6#

 1
09135A - BIT, SCREW DRIVER
09135-00011

MX6#..SED

W/SUN ROOF

 1
09135A - BIT, SCREW DRIVER
09135-00011

MX6#..SED

W/SUN ROOF

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

MX6#

 1
